10kgcm 57mm Stepper Motor Gearbox Nema 23 Planetary High Precision 9.6V
| Place of Origin | China |
|---|---|
| Brand Name | TB-Motor |
| Certification | CE ROHS ISO |
| Model Number | 57BYGH321-03AG6 |
| Minimum Order Quantity | 50 |
| Price | USD |
| Packaging Details | Carton with Inner Foam Box, Pallet |
| Delivery Time | 25 DAYS |
| Payment Terms | L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 10000 PCS/MONTH |
Leave a Message
Product Details
| Product Name | Stepping Gearbox Motor | Step Accuracy | ± 5% |
|---|---|---|---|
| Temperature Rise | 80 ℃ Max | Insulation Resistance | 100MΩ Min.500VC DC |
| Ambient Temperature | -20℃~+50℃ | Dielectric Strength | 500VAC 1 Minute |
| Gearbox Housing Material | Powder Metallurgy | Bearing At Output | Sleeve Bearing |
| RATED VOLTAGE | 6.9V | RESITSTANCE | 9.6 Ω/PHASE |
| High Light | nema 23 planetary gearbox 9.6V,Nema Planetary Gearbox 9.6V,Gearbox For Nema 23 Stepper Motor | ||
Product Description
57BYGH231-03AG6 NEMA 23 high precision 9.6V step gearbox motor planetary speed reducer
57BYGH231-03AG6 consists of a 2 phase 57mm stepping motor and a 56mm planetary gearbox. The housing material of the 56mm gearbox is powder metallurgy. The radial play of the shaft is ≤0.03mm, and the Thrust play of shaft is ≤0.1. Backlash at no-load is ≤1.5 °.
For the same amount of load capacity, our powder metallurgy planetary gearbox has a higher service lifespan than the traditional gearboxes. The key aspects are to improve efficiency and reliability in any mechanical system.

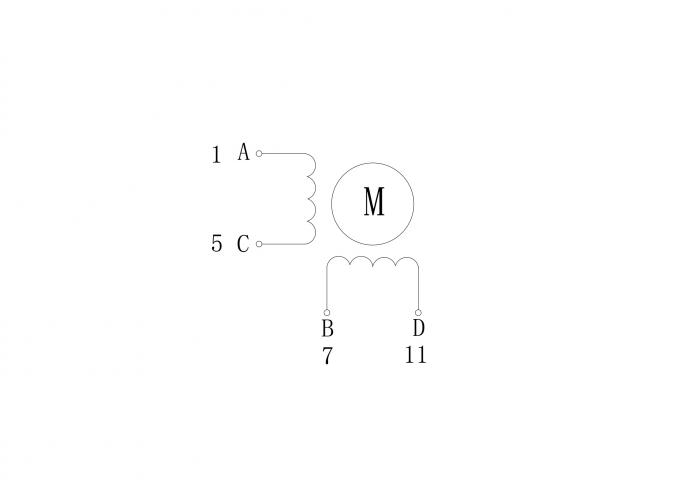

Electrical Specification
| STEP ANGLE | °/STEP | 1.8 |
| RATED VOLTAGE | V | 9.6 |
| CURRENT | A/PHASE | 1.0 |
| RESISTANCE | Ω/PHASE | 9.6 |
| INDUCTANCE | mH/PHASE | 20 |
| HOLDING TORQUE | kg.cm | 10 |
| INSULATION CLASS | B | |
*Products can be customized by special request.
Gearbox Part Electrical Specification
Out diameter 56mm Powder metallurgy
| Housing material | Bearing at output | Radial load(10mm from flange)N | Shaft axial load(N) | Shaft press-fit force max(N) | Radial play of shaft(mm) | Thrust play of shaft(mm) | Backlash at no-load (°) |
| Powder metallurgy | sleeve bearing | ≤450 | ≤200 | ≤1000 | ≤0.03 | ≤0.1 | ≤1.5 |
| Reduction ratio | Rated tolerance torque (Nm) | Max momentary tolerance torque (Nm) | Efficiency% | Length L (mm) | Weight(g) | Number of gear trains |
| 1/4 | 2.0 | 6.0 | 81% | 41.3 | 491 | 1 |
| 1/6 | ||||||
| 1/15 | 8.0 | 25 | 72% | 59.6 | 700 | 2 |
| 1/18 | ||||||
| 1/26 | ||||||
| 1/47 | 16 | 50
| 72% | 59.6 | 700 | 2 |
| 1/66 |

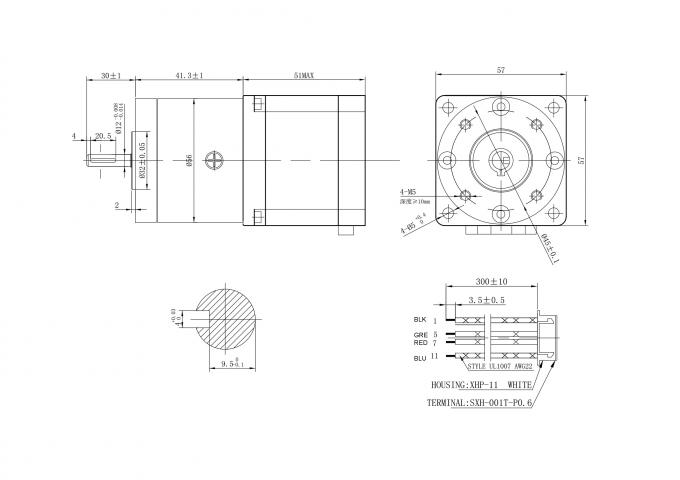

Mechanical Dimension
By having a different arrangement of the sun gear and planetary gears, high output torque and wide speed ratio are achieved. Apart from these, planetary gearboxes have lower inertia and high torque transmission. All these are key aspects that guarantee efficiency.
The ability to accurately vary the degree of power and speed makes planetary gearboxes suitable for many special applications such as wind turbines, internal combustion engines, and so on.
