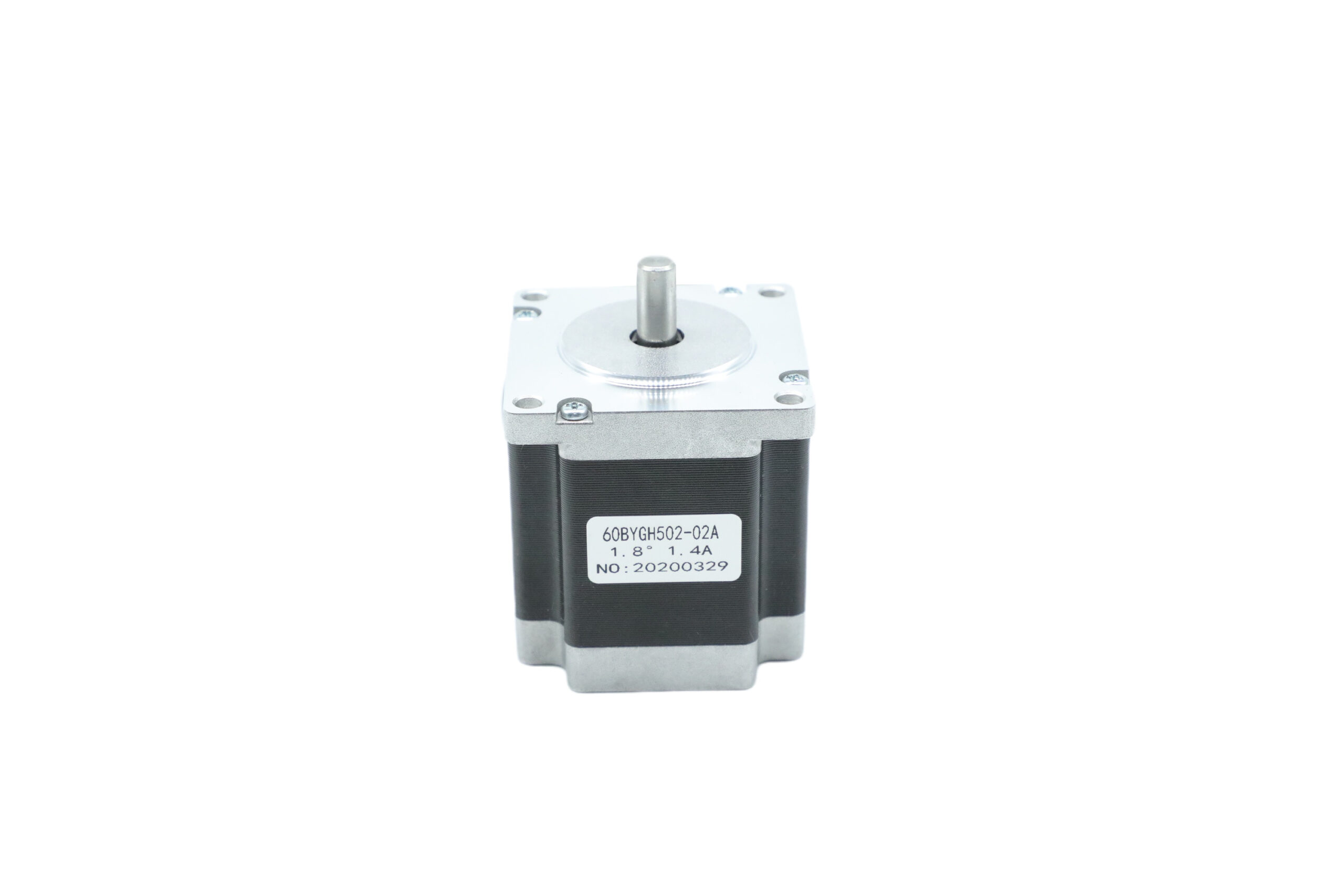

12kg cm 60mm Hybrid Stepper Motor 1.8 Degree 1.25nm 60BYGH502 02A

Place of OriginChina
Brand NameTB-Motor
CertificationCE ROHS ISO
Model Number60BYGH406-03
Minimum Order Quantity50
PriceUSD
Packaging DetailsCarton with Inner Foam Box, Pallet
Delivery Time25 DAYS
Payment TermsL/C, D/P, T/T, Western Union, MoneyGram
Supply Ability10000 PCS/MONTH
GET AN ESTIMATE NOW

Leave a Message

Product Details

Product NameHybrid Stepping MotorStep Accuracy± 5%
Temperature Rise80 ℃ MaxInductance8.0mH
Insulation Resistance100MΩ Min.500VC DCAmbient Temperature-20℃~+50℃
Resistance8.4ΩDielectric Strength500VAC 1 Minute
Max Radial Force75N (20mm From Front Flange)Max Axial Force15N
High Light
12kg cm Hybrid Stepper Motor,Hybrid Stepper Motor 1.8 Degree,60BYGH502 02A



Product Description

60BYGH502-02A Professional Manufacture 1.8 Degree Length 64mm Hybrid Electrical Stepper



Stepper motors are DC motors that move in discrete steps. They have multiple coils that are organized in groups called “phases”. By energizing each phase in sequence, the motor will rotate, one step at a time.

Electrical Specification:
Model Number60BYGH502-02A
Step Accuracy± 5%
Step Angle1.8°
Lead Wire4
Voltage (V)5.6
Current (A/Phase)2
Holding Torque (N.m)1.25
Resistance (Ω/phase)8.4
Inductance (mH/phase)8.0
Motor length (MM)64
Motr Weight(K/g)1
Insulation ClassB

*Products can be customized by special request.



Wiring Diagram

12kg cm 60mm Hybrid Stepper Motor 1.8 Degree 1.25nm 60BYGH502 02A 0

 Mechanical Dimension
12kg cm 60mm Hybrid Stepper Motor 1.8 Degree 1.25nm 60BYGH502 02A 1
Specification of Other Models:
MODELSTEP ANGLE
(°/STEP)
LEAD WIRE
(NO.)
VOLTAGE
(V)
CURRENT
(A/PHASE)
RESISTANCE
(Ω/PHASE)
INDUCTANCE
(MH/PHASE)
HOLDING TORQUE
(KG.CM)
MOTOR HEIGHT
L(MM)
MOTOR WEIGHT
(KG)
60BYGH402-13A1.862.43.00.81.610560.77
60BYGH410-05A1.846.01.06.01612.5560.77
60BYGH502-03A1.845.321.43.81012.5641.00
60BYGH5001.863.61.58.48.012.5641.00
60BYGH805-561.842.84.00.83.523.5871.34
60BYGH808A1.844.53.01.55.026871.34



*Products can be customized by special request.

*Products can match gearbox 52.56



When it comes to quality aspect, TB-Motor was qualified by ISO Certificate, CE and Rohs. The product quality has also been recognized by many customers.

12kg cm 60mm Hybrid Stepper Motor 1.8 Degree 1.25nm 60BYGH502 02A 2





FAQ

1. Are you a factory?

Yes, we are a factory. Our brand name TB-Motor is a well-known micro motor manufacturer for more than 20 years in

China. Main products including hybrid stepper motor, brushless DC motor, servo motor, and planetary gearbox.



2. Can I test the sample?

Yes, samples and freight are charged.



3. Can I get a Customized product?

Sure, all the products can be customized based on special requests.



4. How do you ship the goods?

We normally ship goods by express(DHL/UPS/FEDEX/TNT), by sea and by air, also accept freight forwarder.



5. What are the payment terms?

T/T(bank transfer), Paypal(0.5% paypal charges), ALIBABA assurance order accept



6. Is this your final price? May I have the discount?

Our price is the factory price. If you have a large quantity, we can negotiate about the discount.



7. What is the Warranty for your products?

Our warranty is for one year. If any quality problems occurred on our side during this period, we will take on the shipping cost and replacement. please note damage caused by improper use of the product is not covered by the warranty.
