12V Nema 17 With Gearbox Stepper Motor 1.8 3.8 Kg Cm 52oz in 1 54 Reduction
| Place of Origin | China |
|---|---|
| Brand Name | TB-Motor |
| Certification | CE ROHS ISO |
| Model Number | 42BYGH603-10AG54 |
| Minimum Order Quantity | 50 |
| Price | USD |
| Packaging Details | Carton with Inner Foam Box, Pallet |
| Delivery Time | 25 DAYS |
| Payment Terms | L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 10000 PCS/MONTH |
Leave a Message
Product Details
| Product Name | Stepping Gearbox Motor | HOLDING TORQUE | 3800 G.cm |
|---|---|---|---|
| Ambient Temperature | -20℃~+50℃ | Step Accuracy | ± 5% |
| INDUCTANCE | 65 MH/PHASE | Insulation Resistance | 100MΩ Min.500VC DC |
| Dielectric Strength | 500VAC 1 Minute | Reduction Ratio | 1:54 |
| Number Of Gear Trainsial Force | 3 | Temperature Rise | 80 ℃ Max |
| High Light | Nema 17 Gearbox Stepper Motor 1.8deg,stepper motor 1.8 degree 3.8 Kg Cm,geared stepper motor nema 17 | ||
Product Description
12V NEMA 17 stepper motor planetary gearbox high efficiency 1:54 reduction ratio
42BYGH603motor with Powder metallurgy 42mm planetary gearbox, the holding torque is 3.8 Kg.cm at 12V. The current is 0.4A. If the customer needs a higher torque, they can choose a higher reduction ratio, from 3 levels of reduction ratio, which we also call the number of gear trains. The first stage ratio is consists of 1/4 and 1/6. The second stage has ratios of 1/15, 1/18, 1/25 and 1/36. While the third stage has 1/54, 1/65, 1/90, 1/112, 1/155 and 1/216. A higher reduction ratio will result in lower speed and higher torque.

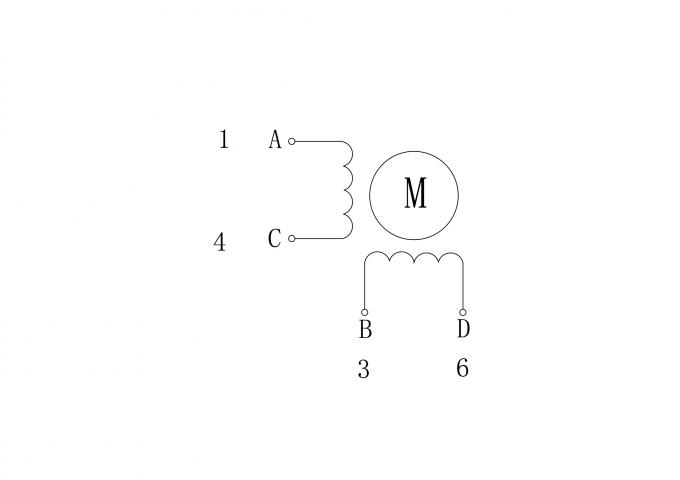

Electrical Specification
| STEP ANGLE | °/STEP | 1.8 |
| RATED VOLTAGE | V | 12 |
| CURRENT | A/PHASE | 0.4 |
| RESISTANCE | Ω/PHASE | 30 |
| INDUCTANCE | mH/PHASE | 65 |
| HOLDING TORQUE | Kg.cm | 3.8 |
| INSULATION CLASS | B | |
*Products can be customized by special request.
Out diameter 42mm Powder metallurgy
| Housing material | Bearing at output | Radial load(10mm from flange)N | Shaft axial load(N) | Shaft press-fit force max(N) | Radial play of shaft(mm) | Thrust play of shaft(mm) | Backlash at no-load (°) |
| Powder metallurgy | sleeve bearing | ≤120 | ≤80 | ≤500 | ≤0.03 | ≤0.1 | ≤1.5 |
| Reduction ratio | Rated tolerance torque (Nm) | Max momentary tolerance torque (Nm) | Efficiency% | Length L (mm) | Weight(g) | Number of gear trains |
| 1/4 | 1.0 | 3.0 | 81% | 32.5 | 170 | 1 |
| 1/6 | ||||||
| 1/15 | 4.0 | 12 | 72% | 46.3 | 207 | 2 |
| 1/18 | ||||||
| 1/25 | ||||||
| 1/36 | ||||||
| 1/54 | 8.0
| 25
| 65%
| 60.1
| 267
| 3 |
| 1/65 | ||||||
| 1/90 | ||||||
| 1/112 | ||||||
| 1/155 | ||||||
| 1/216 | 10 | 30 | 65% | 60.1 | 267 |

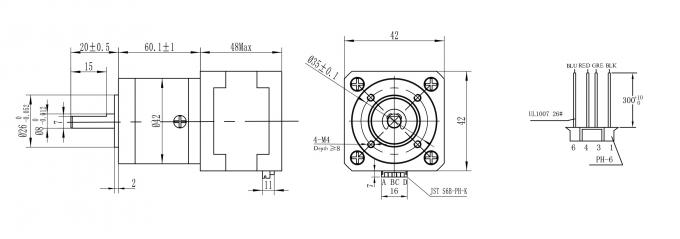

Mechanical Dimension
Unique Design for High Power Density
High power density is one of the many planetary gearbox advantages.
This is mainly due to the many planets in the gear system, which allow for efficient power distribution.
