2 Nm High Precision Planetary Gear Stepper Motor 10 Kg Cm 138 Oz In
| Place of Origin | China |
|---|---|
| Brand Name | TB-Motor |
| Certification | CE ROHS ISO |
| Model Number | 57BYGH459-20AG15 |
| Minimum Order Quantity | 50 |
| Price | USD |
| Packaging Details | Carton with Inner Foam Box, Pallet |
| Delivery Time | 25 DAYS |
| Payment Terms | L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 10000 PCS/MONTH |
Leave a Message
Product Details
| Product Name | Stepping Gearbox Motor | INDUCTANCE | 3.7 M.H/PHASE |
|---|---|---|---|
| Step Accuracy | ± 5% | Temperature Rise | 80 ℃ Max |
| Insulation Resistance | 100MΩ Min.500VC DC | Ambient Temperature | -20℃~+50℃ |
| Radial Load(10mm From Flange) | ≤450N | Shaft Axial Load | ≤200N |
| Dielectric Strength | 500VAC 1 Minute | Rated Voltage | 2.2 V |
| High Light | high precision geared stepper motor,10 Kg Cm Stepper Motor,2nm stepper motor | ||
Product Description
57BYGH459-20AG15 high precision stepping planetary gearbox motor 10 kg. cm low noise
57BYGH459 stepper motor installed with Powder metallurgy 56mm gearbox, which the rated tolerance torque is 8 N.m and max 25 N.m. The reduction ratio is 1:15. Adding a gearbox can make the motor lower at speed and higher at output torque.
| Model | Step Angle Accuracy | Step Angle | Holding torque N.m | Reduction Ratio | Size |
| 57BYGH459-19AG6 | ±5% | 1.8 | 4.86 | 1:6 | 57*57*97.3 mm |
| 57BYGH459-20AG15 | ±5% | 1.8 | 10.65 | 1:15 | 57*57*115.6 mm |
Electrical Specification
| MODEL | ||
| STEP ANGLE | °/STEP | 1.8 |
| RATED VOLTAGE | V | 2.2 |
| CURRENT | A/PHASE | 2.0 |
| RESISTANCE | Ω/PHASE | 1.1 |
| INDUCTANCE | mH/PHASE | 3.7 |
| HOLDING TORQUE | kg.cm | 10 |
| INSULATION CLASS | B | |
*Products can be customized by special request.
Gearbox Part Electrical Specification
Out diameter 56mm Powder metallurgy
| Housing material | Bearing at output | Radial load(10mm from flange)N | Shaft axial load(N) | Shaft press-fit force max(N) | Radial play of shaft(mm) | Thrust play of shaft(mm) | Backlash at no-load (°) |
| Powder metallurgy | sleeve bearings | ≤450 | ≤200 | ≤1000 | ≤0.03 | ≤0.1 | ≤1.5 |
| Reduction ratio | Rated tolerance torque (Nm) | Max momentary tolerance torque (Nm) | Efficiency% | Length L (mm) | Weight(g) | Number of gear trains |
| 1/4 | 2.0 | 6.0 | 81% | 41.3 | 491 | 1 |
| 1/6 | ||||||
| 1/15 | 8.0 | 25 | 72% | 59.6 | 700 | 2 |
| 1/18 | ||||||
| 1/26 | ||||||
| 1/47 | 16 | 50
| 72% | 59.6 | 700 | 2 |
| 1/66 |

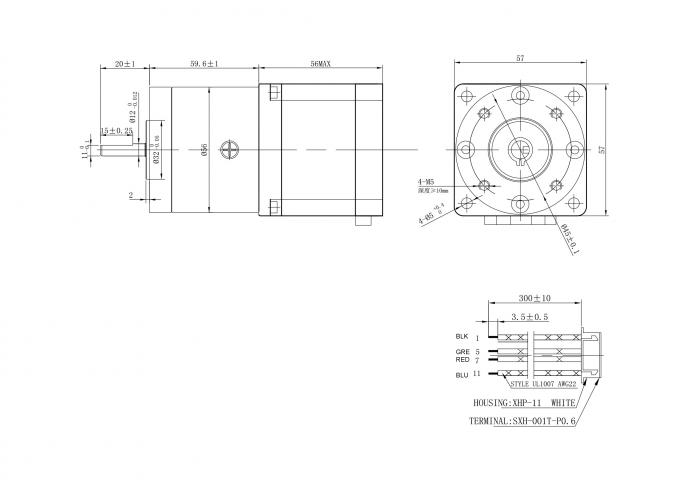

Mechanical Dimension
When it comes to quality aspects, TB-Motor was qualified by ISO Certificate, CE, and Rohs. The product quality has also been recognized by many customers.
TB-Motor is also proud of its research and development strength. With the support of professional laboratory and experienced technicians, TB-Motor gained 13 Utility Patents and high-tech enterprise Award as well as other awards during the years.
