2kw Ac Servo Motor 2000 Rpm 310v 9.55Nm High Voltage
| Place of Origin | China |
|---|---|
| Brand Name | TB-Motor |
| Certification | CE ROHS ISO |
| Model Number | ES130 2KW |
| Minimum Order Quantity | 5 |
| Price | USD |
| Packaging Details | Carton with Inner Foam Box, Pallet |
| Delivery Time | 28-31 |
| Payment Terms | L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 1000pcs/month |
Leave a Message
Product Details
| Product Name | Servo Motor | Insulation Class | F |
|---|---|---|---|
| Protection Level | IP65 | Work Temperature | 0℃~+55℃ |
| Preserve Temperature | 20℃～80℃ | Work Or Preserve | 90%RH（No Condensation) Above Sea Level 1000m |
| Vibration | 5.88/S 2.10-60Hz | Structure | Key Shaft, Oil Seal, No Brake |
| Continuous Current(A) | 12A | No. Of Poles | 10 |
| High Light | 2kw servo motor,ac servo motor 2kw,2kw Ac Servo Motor 2000Rpm | ||
Product Description
ES130 series 2KW Quiet operation Highly reliable 3000rpm high voltage with brake
| Model | Weight | Shaft type | Shaft diameter | Feedback device |
| ES130-2kw | 10kg | Key shaft | φ22 | Multi-turn absolute encoder 17 bit |
Electrical Specification:
| Product Name: | Servo Motor |
| Rated Power (W) | 2000 |
| Rated Speed (RPM) | 2000 |
| Voltage(VDC) | 310 |
| Rated Current(A) | 12 |
| Rated Torque (N.m) | 9.55 |
| Peak Torque(N.m) | 28.65 |
| Back EMF Constant(V/Krpm) | 46 |
Note: The products can be customized by your request. Please contact us for more details.

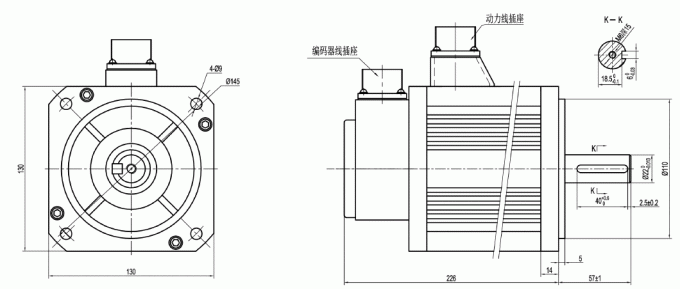

| Type | 130 | ||||
| Power | 1KW | 1.5KW | 2KW | 4KW | |
| Encoder | |||||
| L (mm) | A | ||||
| B | |||||
| L | 143.5 | 157 | 171 | 226 | |
| N | |||||
| Type | 130 | ||||
| Power | 1KW | 1.5KW | 2KW | 4KW | |
| Encoder | |||||
| Weight
| A | ||||
| B | |||||
| L | 5 | 6.09 | 7.2 | 11.4 | |
| N | |||||
Note: A, B, L, N refers to the different encoder.
When it comes to quality aspects, Hetai was qualified by ISO Certificate, CE and Rohs. The product quality has also been recognized by many customers.
TB-Motor is also proud of its research and development strength. With the support of professional laboratory and experienced technicians, TB-Motor gained 13 Utility Patents and high-tech enterprise Award as well as other awards during the years.
Servo Motors are used throughout many industries and have the following advantages;
High efficiency
High output power relative to their size
More constant torque at higher speed
Closed-loop control
Quiet operation
Highly reliable
High ratio of torque to inertia
High acceleration
High-speed performance
Torque control
Smooth running
High accuracy
Small in size
Well suited to varying load applications
