3Phase Nema 17 Brushless DC Motor 8Pole 10A 251W 0.8Nm 57mm 3000RPM 24V 36V
Place of Origin | China |
---|---|
Brand Name | TB-Motor |
Certification | CE ROHS ISO |
Model Number | 57BLF |
Minimum Order Quantity | 50 |
Price | USD |
Packaging Details | Carton with Inner Foam Box, Pallet |
Delivery Time | 28-31 DAYS |
Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability | 5000 PCS/MONTH |
Leave a Message
Product Details
Product Name | Brushless DC Motor | No Of Poles | 8 Poles |
---|---|---|---|
No.of Phase | 3 Phase | Power | 251W |
Winding Type | Star | Rated Voltage | 24V-36V |
Max Axial Force | 45N | Hall Effect Angle | 120° Electrical Angle |
Insulation Class | B | MAX Radial Force | 115N (10mm From Front Flange) |
Dielectric Strength | 600VAC 1 Minute | Insulation Resistance | 100MΩ Min.500VC DC |
High Light | 10A Nema 17 Brushless DC Motor,3Phase Brushless DC Motor 36V,Brushless Dc Gear Motor 0.8Nm |
Product Description
57mm Nema 17 Brushless DC Motor 10A 251W 8Pole 24V 36V 3Phase 0.8Nm 3000RPM
57BLF series is a type of Brushless DC Motor with a cylindrical body. The speed is ranging from 2500 rpm-3000rpm, and the rated torque is from 0.2 to 0.8 NM.
A Brushless DC Motor motor takes the advantages from AC, DC and Universal motor types and combines them into one unit. It has the long life, low maintenance, quiet operation, and variable speed ability of an AC motor; the high starting torque and linear speed-torque curve of a DC motor; and like both AC & DC motors, it works well with gearboxes. Brushless DC motors have a high power density, second only to the Universal motor, and they have the best efficiency rating of 65 to 80 %.
Electrical Specification Of Brushless DC Motor
Model | Model | Model | Model | Model | Model | ||
Specification | Unit | 57BL01G | 57BL02A | 57BL03B | 57BL04A | 57BL05A | 57BL06 |
Number Of Phases | Phase | 3 | 3 | 3 | 3 | 3 | 3 |
Number Of Poles | Poles | 4 | 4 | 4 | 4 | 4 | 4 |
Rated Voltage | VDC | 24 | 24 | 24 | 24 | 24 | 24 |
Rated Speed | Rpm | 2500 | 3000 | 3000 | 3000 | 3000 | 3000 |
Rated Current | A | 0.77 | 1.87 | 3.17 | 3.67 | 5.33 | 7.00 |
Rated Torque | N.m | 0.057 | 0.11 | 0.18 | 0.22 | 0.33 | 0.44 |
Rated Power | W | 15 | 34.5 | 56 | 69 | 104 | 138 |
Peak Torque | N.m | 0.17 | 0.33 | 0.54 | 0.66 | 0.99 | 1.32 |
Peak Current | Amps | 2.3 | 5.6 | 9.5 | 11 | 16 | 21 |
Torque Constant | N.m/A | 0.074 | 0.059 | 0.057 | 0.060 | 0.062 | 0.063 |
Back EMF constant | V/kRPM | 7.75 | 6.2 | 5.9 | 6.3 | 6.5 | 6.6 |
Body Length | mm | 41.5 | 46.5 | 56.5 | 66.5 | 86.5 | 106.5 |
Weight | Kg | 0.35 | 0.44 | 0.56 | 0.67 | 0.95 | 1.18 |
You can download our 57BLF Brushless DC Motor product brochure:57BLF.pdf
FUNCTION | COLOR | |
+5V | RED | UL1007 26AWG |
HALL A | YELLOW | |
HALLB | GREEN | |
HALLC | BLUE | |
GND | BLACK | |
PHASE A | YELLOW | UL1015 20AWG |
PHASE B | GREEN | |
PHASE C | BLUE |

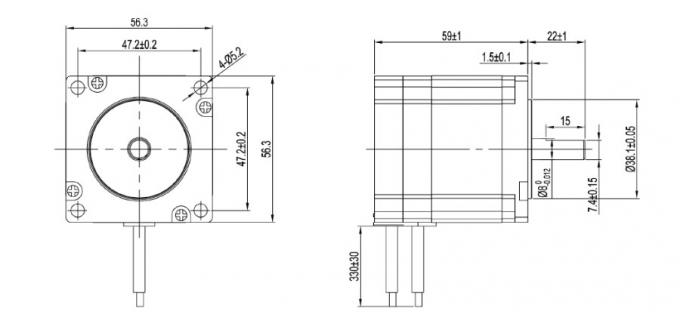

Mechanical Dimension Of Brushless DC Motor

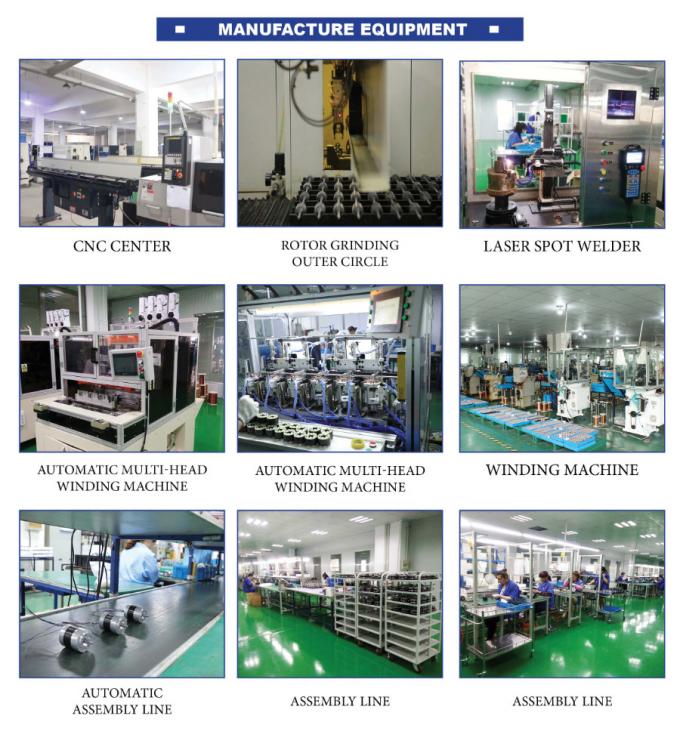

Shanghai TB-Motor is an experienced motor manufacturer. For more than 20 years, TB-Motor dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.
Product Range Of TB-Motor
Based on all this advantages, our company specializes in producing hybrid stepping motors, DC brushless motors, servo motors, gearbox motors and so on. The products are applied in robots, packing machinery, textile machinery, medical instruments, printing machinery, intelligent logistics equipment… TB-Motor also sends its products to USA, Europe, Southeast Asia and all-around China.
TB-Motor is aiming to provide high-quality, comprehensive after-sales service. Strive for continuous improvement and excellence. If you have any questions, you will be on duty 24 hours a day, so you have no worries.
Looking forward to the future, we will work hard to create with a good attitude and serious attitude, meet the challenges of modern high-tech, and continue to expand our business areas to share the achievements of automation technology with more customers!
