420W 48V Conveyor Belt Drive Rollers Servo Motor Driven Roller Electric 5Nm
| Place of Origin | China |
|---|---|
| Brand Name | TB-Motor |
| Certification | CE ROHS ISO |
| Model Number | GT67-0580-001 |
| Minimum Order Quantity | 50 |
| Price | USD |
| Packaging Details | Carton with Inner Foam Box, Pallet |
| Delivery Time | 28-31 |
| Payment Terms | L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 500 pcs/month |
Leave a Message
Product Details
| Product Name | Conveyor Roller Motor | Nominal Voltage | 48V |
|---|---|---|---|
| Insulation Class | B | Ambient Temperature | -20℃~+50℃ |
| Insulation Resistance | 100MΩ Min.500VC DC | Dielectric Strength | 600VAC 1 Minute |
| Size | 50mm*50mm*245mm | Type | Servo Motor |
| High Light | belt driven roller conveyor 48V,belt driven roller 48V,servo rollers belt 48V | ||
Product Description
GT67-0580-001 servo-electric 420W 48V CE ROHS ISO Belt driven roller conveyor drum motor
Since the design of these conveyors is simplistic, many advancements have been made to allow roller conveyors to keep up with industry trends. The biggest innovation is the drive or lives roller conveyor, where each roller is connected to a motor via a belt/chain/shaft to increase controllability. This equalizes the rate with which materials move down the pathway, and also allows these conveyors to have limited use in reverse, i.e. from low to high elevation. They can work well in bi-directional applications, as the rollers can direct material in either direction by switching the direction of the motor.
Electrical Specification:
| Model | ||
| Specification | Unit | GT67-0580-001 |
| Resistance | OHMS | 0.7 |
| Nominal Voltage | VDC | 48 |
| No Load Speed | RPM | 1600 |
| No Load Current | Amps | 3 |
| Rated Speed | Rpm | 800 |
| Rated Current | Amps | 21 |
| Rated Torque | N.m | 5 |
| Rated Power | W | 420 |
| Torque Constant | N.m/A | 0.24 |
| Back EMF constant | V/kRPM | 25 |
| Insulation Class | B |

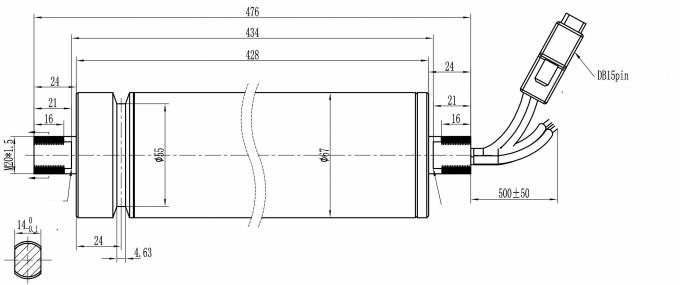

Mechanical Dimension
| Colour | Function | Cable Number |
| Yellow | U | 16AWG UL1330
|
| Blue | V | |
| Green | W | |
| / |
| Encoder.2500ppr | |||||
| Function | Color | PIN | Function | Color | PIN |
| DC+5V | Red | 1 | GND | Black | 9 |
| A | Blue | 2 | _ A | Blue/Black | 10 |
| B | Green | 3 | _ B | Green/Black | 11 |
| Z | Yellow | 4 | _ Z | Yellow/Black | 12 |
| U | Brown | 5 | _ U | Brown/Black | 13 |
| V | Grey | 6 | _ V | Grey/Black | 14 |
| W | White | 7 | — W | White/Black | 15 |
| Shield | NC | 8 | |||
Product Application
***Note: The products can be customized by your request. Please contact us for more details.
Belt driven roller conveyor
The belt-driven live roller conveyor utilizes a motorized belt to power each roller, allowing this conveyor type to control the motion of the materials being transported. They are preferred over typical belt conveyors when items must be stopped momentarily at control points, items must be turned, and/or side loading or slide unloading is necessary.
The belt can be straight or can be in a V shape for curved roller conveyors. Some belt-driven roller conveyors can support products wider than the frame width, thanks to the rollers being higher than the frame. In any arrangement, the rubber belt underneath the rollers must not encounter moisture, excessive heat, or debris as these conditions can quickly degrade the system. These conveyors are often used for handling medium to heavy loads that are dry and clean, and which require periodic stopping and/or reversible action.
