DC 5V Micro Stepper Motor 57mm Nema 23 1a 1.8 0.58 Nm 516 Oz In
| Place of Origin | China |
|---|---|
| Brand Name | TB-Motor |
| Certification | CE ROHS ISO |
| Model Number | 57BYGN200A |
| Minimum Order Quantity | 50 |
| Price | USD |
| Packaging Details | Carton with Inner Foam Box, Pallet |
| Delivery Time | 25 DAYS |
| Payment Terms | L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 10000 PCS/MONTH |
Leave a Message
Product Details
| Product Name | Hybrid Stepping Motor | Resistance | 28Ω |
|---|---|---|---|
| Step Accuracy | ± 5% | Ambient Temperature | -20℃~+50℃ |
| Inductance | 30mH | Dielectric Strength | 500VAC 1 Minute |
| Insulation Resistance | 100MΩ Min.500VC DC | Temperature Rise | 80 ℃ Max |
| Max Radial Force | 75N (20mm From Front Flange) | Max Axial Force | 15N |
| High Light | NEMA 23 0.58Nm,Nema 23 1a 0.58Nm,5V Stepper Motor 0.58Nm | ||
Product Description
57BYGN200A NEMA 23 1.8 Degree 0.58 Nm micro DC 5V Stepper Motor with aluminum pulley
Pulley Specification
Material: Aluminum
Number of teeth: 50
Tooth Type: MXL
Pitch: 2.032
Outer diameter:φ31.83
Electrical Specification
Model Number | 57BYGN200A |
Step Accuracy | ± 5% |
Step Angle | 1.8° |
Lead Wire | 4 |
Voltage (V) | 5 |
Current (A/Phase) | 1 |
Holding Torque (N.m) | 0.58 |
| Resistance (Ω/phase) | 5 |
| Inductance (mH/phase) | 11.5 |
| Motor length (MM) | 51 |
| Motor Weight(Kg) | 0.6 |
| Insulation Class | B |
*Products can be customized by special request.
Wiring Diagram
| MODEL | STEP ANGLE (°/STEP) | LEAD WIRE (NO.) | VOLTAGE (V) | CURRENT (A/PHASE) | RESISTANCE (Ω/PHASE) | INDUCTANCE (MH/PHASE) | HOLDING TORQUE (KG.CM) | MOTOR HEIGHT L(MM) | MOTOR WEIGHT (KG) |
|---|---|---|---|---|---|---|---|---|---|
| 57BYGN001 | 1.8 | 6 | 12 | 0.38 | 32 | 25 | 3.0 | 41 | 0.45 |
| 57BYGN027 | 1.8 | 4 | 2.8 | 1.4 | 2.1 | 3.5 | 3.9 | 41 | 0.45 |
| 57BYGN200-19A | 1.8 | 6 | 5 | 1.0 | 5.0 | 11.5 | 5.8 | 51 | 0.65 |
| 57BYGN204 | 1.8 | 6 | 11.2 | 0.4 | 28 | 30 | 3.8 | 51 | 0.65 |
| 57BYGN400-11A | 1.8 | 4 | 5.5 | 1.1 | 5.0 | 12 | 7.8 | 56 | 0.70 |
| 57BYGN412 | 1.8 | 4 | 4.4 | 2.0 | 2.2 | 6.3 | 9.0 | 56 | 0.70 |
*Products can be customized by special request.
*Can match with gearbox 42, 52, 56 mm

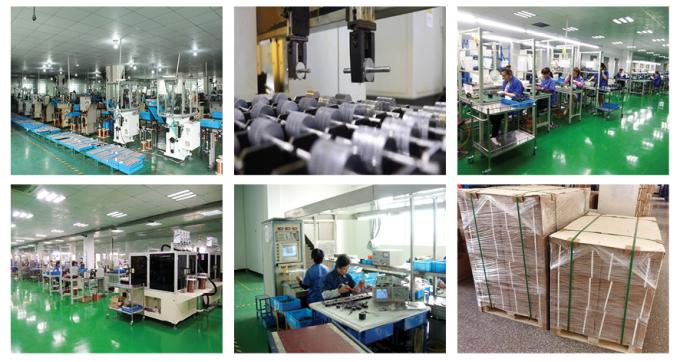

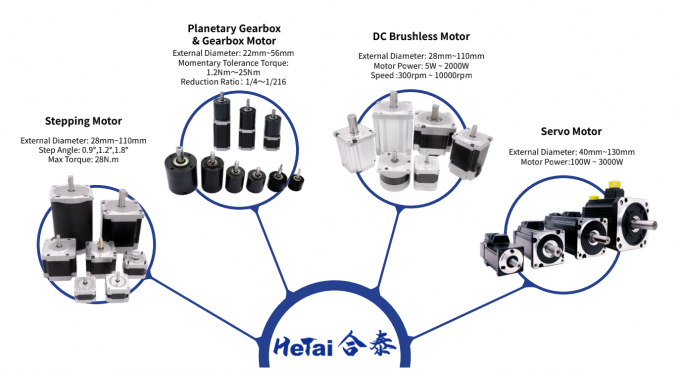

Based on all this advantages, our company specializes in producing hybrid stepping motors, DC brushless motors, servo motors, gearbox motors and so on. The products are applied in robots, packing machinery, textile machinery, medical instruments, printing machinery, intelligent logistics equipment… TB-Motor also sends its products to USA, Europe, Southeast Asia and all-around China.
Advantages:
1. The rotation angle of the motor is proportional to the input pulse.
2. The motor has full torque at standstill(if the windings are energized)
3. Precise positioning and repeatability of movement since good stepper motors have an accuracy of 3 – 5% of a step and this error is noncumulative from one step to the next.
4. Excellent response to starting/stopping/reversing.
5. Very reliable since there are no contact brushes in the motor. Therefore the life of the motor is simply dependant on the life of the bearing.
6. The motors response to digital input pulses provides open-loop control, making the motor simpler and less
costly to control.
7. It is possible to achieve very low-speed synchronous rotation with a load that is directly coupled to the shaft.
8. A wide range of rotational speeds can be realized as the speed is proportional to the frequency of the input
pulses.
