Encoder Bldc Brushless Ac Servo Motor Closed Loop Control 750 Watt 2.4Nm
| Place of Origin | China |
|---|---|
| Brand Name | TB-Motor |
| Certification | CE ROHS ISO |
| Model Number | ES80 |
| Minimum Order Quantity | 5 |
| Price | USD |
| Packaging Details | Carton with Inner Foam Box, Pallet |
| Delivery Time | 28-31 |
| Payment Terms | L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 1000pcs/month |
Leave a Message
Product Details
| Product Name | Servo Motor | Insulation Class | F |
|---|---|---|---|
| Speed(RPM) | 3000 | Protection Level | IP65 |
| Work Temperature | 0℃~+55℃ | Inertia | Medium |
| Preserve Temperature | 20℃～80℃ | Work Or Preserve | 90%RH（No Condensation) Above Sea Level 1000m |
| Vibration | 5.88/S 2.10-60Hz | Power | 750W |
| High Light | Bldc Servo Motor,Brushless Dc Servo Motor,encoder servo motor 750w | ||
Product Description
ES80 Series Bldc Quiet Operation Servo Motor 2.4 Nm Closed-Loop Control With Encoder
The ES80 has a frame size of 80*80mm, and the length is around 125mm. The servo motor has a high protection level of IP 65
The customer can choose different optical encoders such as Tamagawa single ring, incremental 2500ppr optical encoder, Yuheng multi-ring, Nikon multi-ring, and so on. You can also choose to install the brake or not. The volatge is 310V or 48V. The rated current of 310V motor is 4A, speed at 3000RPM.
| Model ES 80 Series | ||||||||
| Rated Power | Rated Voltage | Max radial force | Max axial force | Weight | Shaft type | Shaft diameter | Feedback device | No of poles |
| 750W | 310V | 335N | 150N | 2.45kg | Key shaft | φ19 | 2500ppr | 8 poles |
| 750W | 48V | 335N | 150N | 2.45kg | Key shaft | φ19 | — | 8 poles |
Electrical Specification
| MODEL | ES8004A-75S30B1 | ES8005A-75D30A1 | ES8005A-75D30L2 | ES8005A-75D30A2 | ES8005A-75D30B2 | ES8005A-75D30L1 | ES8004G-75S30B1 Low-voltage servo |
| RATED POWER (WATTS) | 750 | 750 | 750 | 750 | 750 | 750 | 750 |
| RATED VOLTAGE | 310 | 310 | 310 | 310 | 310 | 310 | 48 |
| RATED CURRENT (AMP S) | 4.0 | 4.0 | 4.0 | 4.0 | 4.0 | 4.0 | 20 |
| RATED SPEED (RPM) | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 |
| RATED TORQUE (N.M) | 2.4 | 2.4 | 2.4 | 2.4 | 2.4 | 2.4 | 2.38 |
| PEAK TORQUE (N.M) | 7.2 | 7.2 | 7.2 | 7.2 | 7.2 | 7.2 | 7.2 |
| BACK EMF CONSTANT (V/KRPM) | 39 | 39 | 39 | 39 | 39 | 39 | 8 |
| TORQUE COEFFICIENT (N.M/AMPS) | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.132 |
| ROTOR INERTIA (KG.CM2) | 1.15 | 1.15 | 1.15 | 1.15 | 1.15 | 1.15 | 1.51 |
| LINE-LINE RESISTANCE (Ω) | 1.4 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 0.15 |
| LINE-LINE INDUCTANCE (MH) | 9.0 | 11.0 | 11.0 | 11.0 | 11.0 | 11.0 | 0.5 |

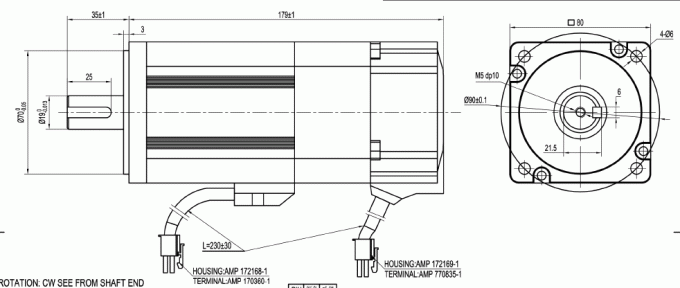

80 Series With Brake
| PIN | FUNCTION | COLOUR |
| 1 | U | Red |
| 2 | V | White |
| 3 | W | Black |
| 4 | G | Yellow/Green |
| 5 | Brake | Yellow |
| 6 | Brake | Blue |
| PIN | FUNCTION | COLOUR |
| 1 | OV | Black |
| 2 | / | |
| 3 | SD+ | Blue |
| 4 | +5V | Red |
| 5 | BAY- | Brown/Black |
| 6 | BAT+ | Brown |
| 7 | SD- | Blue/Black |
| 8 | / | |
| 9 | GND | Grey(Shield) |
| Type | 80 | ||
| Power | 750W | ||
| Encoder | |||
| L (mm) | A | 125.5 | |
| B | 179 | ||
| L | 179 | ||
| N | |||
| Type | 80 | ||
| Power | 750W | ||
| Encoder | |||
| Weight | A | 3.47 | |
| B | 2.45 | ||
| L | 3.49 | ||
| N | |||
Note: A, B, L, N refers to different encoder.
A= tamagawa single-turn absolute value 17-bit encoder
B=incremental 2500ppr optical encoder
L=tamagawa multi-turn absolute value 17-bit encoder
N=Nikon multi-turn absolute value 24 bit

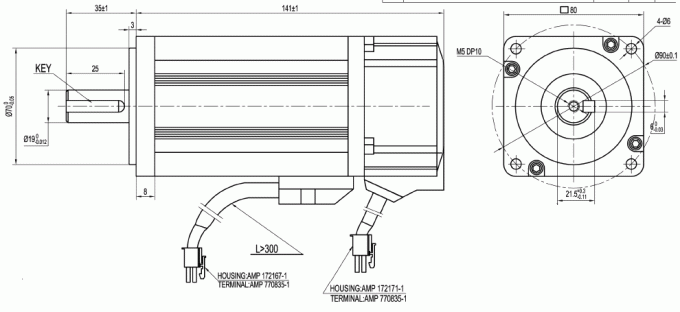

80 Series Without Brake
| PIN | FUNCTION | COLOUR |
| 1 | U | Red |
| 2 | V | White |
| 3 | W | Black |
| 4 | G | Yellow/Green |
| PIN | FUNCTION | COLOUR |
| 1 | Shield | NC |
| 2 | DC+5V | Red |
| 3 | GND | Black |
| 4 | B | Green |
| 5 | Z- | Yellow/white |
| 6 | U | Brown |
| 7 | Z | Yellow |
| 8 | U- | Brown/white |
| 9 | A | Grey |
| 10 | W | Orange |
| 11 | V | Blue |
| 12 | W- | Orange/white |
| 13 | A- | Grey/white |
| 14 | B- | Green/white |
| 15 | V- | Blue/white |
| Type | 80 | ||
| Power | 750W | ||
| Encoder | |||
| L (mm) | A | 125 | |
| B | 141 | ||
| L | 141 | ||
| N | |||
| Type | 80 | ||
| Power | 750W | ||
| Encoder | |||
| Weight (Kg) | A | 2.42 | |
| B | 2.43 | ||
| L | 2.43 | ||
| N | |||
Note: A, B, L, N refers to different encoder.
A= tamagawa single-turn absolute value 17-bit encoder
B=incremental 2500ppr optical encoder
L=tamagawa multi-turn absolute value 17-bit encoder
N=Nikon multi-turn absolute value 24 bit
A servo motor is controlled by controlling its position using Pulse Width Modulation Technique. The width of the pulse applied to the motor is varied and send for a fixed amount of time.
The pulse width determines the angular position of the servo motor. For example, a pulse width of 1 ms causes an angular position of 0 degrees, whereas a pulse width of 2 ms causes an angular width of 180 degrees.
