28BYGHL202-XX Linear Stepper Motor 5.7V 0.6A

28BYGHL202-XX hot sale high quality liner stepper motor 5.7V 0.6A factory direct supply

Advantages Of Linear Stepper Motor
1. The linear stepping motor completely replaces the DC motor for speed regulation, completely replaces the frequency converter + variable frequency motor speed regulation, and completely replaces the asynchronous motor + reducer;

2. It has all the advantages of traditional DC motors, and at the same time cancels the structure of carbon brushes and slip rings; small size, light weight, and large output power;

3. It can run at low speed and high power, which can save the need for the reducer to directly drive the large load;

4. It has good torque characteristics, good torque performance at medium and low speeds, large starting torque and small starting current;

5. Stepless speed regulation, wide speed regulation range, strong overload capacity; optional trapezoidal wave magnetic field motor and sine wave magnetic field motor as required.

6. Soft start and soft stop, good braking performance, can save the original brake or electromagnetic brake device;

7. High efficiency, the motor itself has no excitation loss and carbon brush loss, eliminating multi-stage deceleration loss, the comprehensive power saving rate can reach 20%~60%, and only one year’s purchase cost can be recovered;

8. High reliability, good stability, wide adaptability and simple maintenance;

9. Anti-shock vibration, low noise, small vibration, stable operation and long life;

10. No radio interference, no sparks, especially suitable for explosive places, with explosion-proof type;

Electrical Specification:

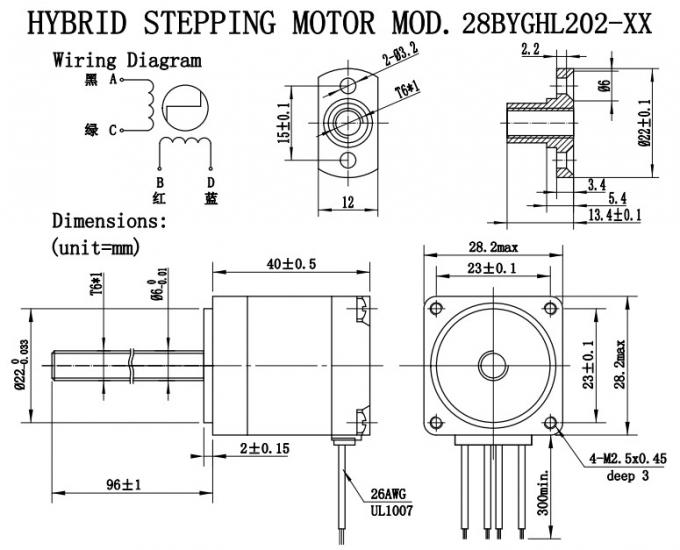

Mechanical Dimension
