High Performance Nema23 Hybrid Stepper Motor 3V 3A 13.5kg.Cm 57mm
| Place of Origin | China |
|---|---|
| Brand Name | TB-Motor |
| Certification | CE ROHS ISO |
| Model Number | 57BYGH633-131 |
| Minimum Order Quantity | 50 |
| Price | USD |
| Packaging Details | Carton with Inner Foam Box, Pallet |
| Delivery Time | 28-31 DAYS |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 5000 PCS/MONTH |
Leave a Message
Product Details
| Product Name | Hybrid Stepper Motor | Step Angle | 1.8 ° |
|---|---|---|---|
| Lead Wire | 6 | Holding Torque | 13.5 Kg.cm |
| Rated Voltage | 3.0V | Rated Current | 3.0A |
| Inductance | 1.8mH | Resistance | 1.0Ω |
| Motor Height | 78 Mm | Motor Weight | 1.00 Kg |
| High Light | Nema23 Hybrid Stepper Motor 3V,13.5kg.Cm Hybrid Stepper Motor,3A Nema23 Stepper Motor | ||
Product Description
3V 3A 13.5kg.cm manufacture direct supply 57mm high performance nema23 hybrid stepper motor
The difference between stepper motor and servo motor
1. Different control methods
Stepper motor: The rotation angle is controlled by controlling the number of pulses, and one pulse corresponds to one step angle.
Servo motor: control the rotation angle by controlling the length of the pulse time.
2. Different workflow
Stepper Motor: Workflow Generally, two pulses are required for stepper motor work: signal pulse and direction pulse.
Servo motor: Its workflow is a power connection switch, and then connect the servo motor.
3. Different low frequency characteristics
Stepper motor: low frequency vibration is prone to occur at low speed.
Servo motor: runs very smoothly and does not vibrate even at low speed.
4. Different moment-frequency characteristics
Stepper motor: The output torque decreases with the increase of the speed, and it will drop sharply at a higher speed, so the maximum working speed is generally 300 ~ 600r/min.
Servo motor: It is constant torque output, that is, within its rated speed (generally 2000 or 3000 r/min), it outputs rated torque, and above the rated speed, it is constant power output.
5. Different overload capacity
Stepper motors: generally do not have overload capacity.
Servo motor: has a strong overload capacity.
Electrical Specification Of Hybrid Stepper Motor
Product Name | Hybrid Stepper Motor |
Step Accuracy | ± 5% |
Dielectric Strength | 500V AC 1minute |
Ambient Temperature | -20℃~50℃ |
Insulation resistance | 100MΩ Min.500V DC |
Step Angle | 1.8° |
Lead wire | 6 |
Voltage (V) | 3.0 |
Current (A/Phase) | 3.0 |
Holding Torque (Kg.cm) | 13.5 Kg.cm |

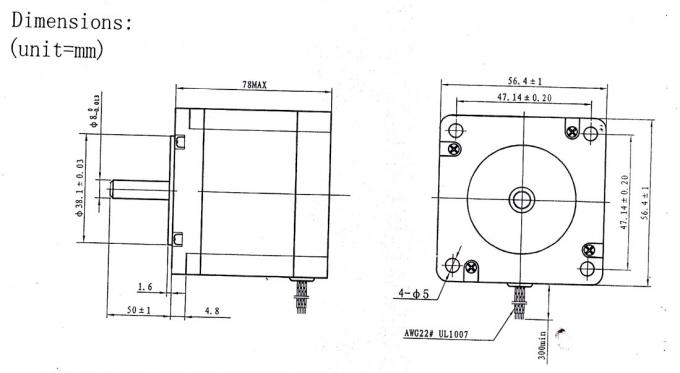

Mechanical Dimension Of Hybrid Stepper Motor
Shanghai TB-Motor is an experienced motor manufacturer. For more than 20 years, TB-Motor dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.
Product Range Of TB-Motor
TB-Motor reduction gearbox
CNC Center
Packing&Delivery
Strictly palletizing and packaging to ensure that the motor will be delivered to the customer in good condition
