NEMA 11 Micro Gearbox Stepper Motor In 3d Printer 28mm 5.4V 2.4 Kg Cm 0.23nm
| Place of Origin | China |
|---|---|
| Brand Name | TB-Motor |
| Certification | CE ROHS ISO |
| Model Number | 28BYGH507-02AG6 |
| Minimum Order Quantity | 50 |
| Price | USD |
| Packaging Details | Carton with Inner Foam Box, Pallet |
| Delivery Time | 25 DAYS |
| Payment Terms | L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 10000 PCS/MONTH |
Leave a Message
Product Details
| Product Name | Stepping Gearbox Motor | HOLDING TORQUE | 2400 G.cm |
|---|---|---|---|
| Step Accuracy | ± 5% | Temperature Rise | 80 ℃ Max |
| RESITSTANCE | 2.6 Ω/PHASE | Ambient Temperature | -20℃~+50℃ |
| Dielectric Strength | 500VAC 1 Minute | Radial Load(10mm From Flange | ≤80N |
| Shaft Axial Load | ≤30N | Insulation Resistance | 100MΩ Min.500VC DC |
| Bearing At Output | Sleeve Bearing | Backlash At No-load | ≤1.5 ° |
| High Light | Small Geared Stepper Motor,3d printer stepper motor,nema 11 stepper motor 28mm | ||
Product Description
28BYGH507-02AG6 mini NEMA 11 micro 5.4V stepper motor with 28mm gearbox for printer
| Model | Phase | Current/phase | Voltage | Step Angle Accuracy | Dielectric Strength | Ambient Temperature: | Step Angle | Holding torque (g.cm) | Max Radial Force | Shaft axial load |
| 28BYGH102-39AG6 | 2 | 0.67 | 3.9 | ±5% | 500V AC 1minute | -20℃-50℃ | 1.8 | 600 | ≤80N (10mm from front flange) | ≤200N |
| 28BYGH507-02AG6 | 2 | 2 | 5.4 | 2400 |
Electrical Specification
| 28BYGH507-02AG6 | ||
| STEP ANGLE | °/STEP | 1.8 |
| RATED VOLTAGE | V | 5.2 |
| CURRENT | A/PHASE | 2.0 |
| RESISTANCE | Ω/PHASE | 2.6 |
| INDUCTANCE | mH/PHASE | 1.9 |
| HOLDING TORQUE | g.cm | 2400 |
| INSULATION CLASS | B | |
*Products can be customized by special request.
Wiring Diagram

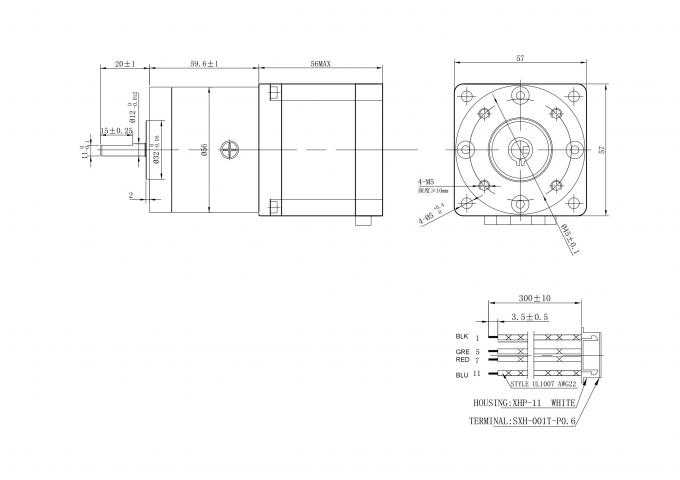

Mechanical Dimension
Hetai has always considered product quality at the first place. The company has its own quality management system since its foundation. During the years, it has gained the quality certification of ISO, CE, IATF 16949, ROHS. Hetai also has internal & external quality audits to avoid any negligence.
GEARBOX PART Electrical Specification:
Out diameter 28mm
| Housing material | Bearing at output | Radial load(10mm from flange)N | Shaft axial load(N) | Shaft press-fit force max(N) | Radial play of shaft(mm) | Thrust play of shaft(mm) | Backlash at no-load (°) |
| Powder metallurgy | sleeve bearing | ≤80 | ≤30 | ≤200 | ≤0.03 | ≤0.4 | ≤1.5 |
| Reduction ratio | Rated tolerance torque (Nm) | Max momentary tolerance torque (Nm) | Efficiency% | Length (mm) | Weight(g) | Number of gear trains |
| 1/3 | 0.2 | 0.6 | 81% | 28.5 | 105 | 1 |
| 1/6 |
Mechanical Dimension
