Nema 23 2.8 A 57mm Hybrid Stepper Motor 1.8 Degree 0.72NM 640 oz 2mH 57HN41-006A
| Place of Origin | China |
|---|---|
| Brand Name | TB-Motor |
| Certification | CE ROHS ISO |
| Model Number | 57HN41-006A |
| Minimum Order Quantity | 50 |
| Price | USD |
| Packaging Details | Carton with Inner Foam Box, Pallet |
| Delivery Time | 25 DAYS |
| Payment Terms | L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 10000 PCS/MONTH |
Leave a Message
Product Details
| Product Name | Hybrid Stepping Motor | Resistance | 1.0 Ω |
|---|---|---|---|
| Step Accuracy | ± 5% | Temperature Rise | 80 ℃ Max |
| Inductance | 2mH | Ambient Temperature | -20℃~+50℃ |
| Insulation Resistance | 100MΩ Min.500VC DC | Dielectric Strength | 500VAC 1 Minute |
| Max Radial Force | 75N (20mm From Front Flange) | Max Axial Force | 15N |
| High Light | NEMA 23 57mm Hybrid Stepper Motor,57mm nema 23 motor 57HN41-006A,nema 23 2.8a 57HN41-006A | ||
Product Description
57HN41-006A Low noise 2mH 1.8 degrees 0.72NM NEMA 23 hybrid stepper motor
| Product Name: | Hybrid Stepping Motor | Resistance: | 1.0 Ω |
|---|---|---|---|
| Step Accuracy: | ± 5% | Temperature Rise: | 80 ℃ Max |
| Inductance: | 2mH | Ambient Temperature: | -20℃~+50℃ |
| Insulation Resistance: | 100MΩ Min.500VC DC | Dielectric Strength: | 500VAC 1 Minute |
| Max Radial Force: | 75N (20mm From Front Flange) | Max Axial Force: | 15N |
Electrical Specification
Model Number | 57HN41-006A |
Step Accuracy | ± 5% |
Step Angle | 1.8° |
Lead Wire | 4 |
Voltage (V) | 2.8 |
Current (A/Phase) | 2.8 |
Holding Torque (N.m) | 0.72 |
| Resistance (Ω/phase) | 1.0 |
| Inductance (mH/phase) | 2.0 |
| Motor length (MM) | 41 |
| Motor Weight(Kg) | 0.43 |
| Insulation Class | B |
*Products can be customized by special request.
| MODEL | STEP ANGLE (°/STEP) | LEAD WIRE (NO.) | VOLTAGE (V) | CURRENT (A/PHASE) | RESISTANCE (Ω/PHASE) | INDUCTANCE (MH/PHASE) | HOLDING TORQUE (KG.CM) | MOTOR HEIGHT L(MM) | MOTOR WEIGHT (KG) |
|---|---|---|---|---|---|---|---|---|---|
| 57HN41-001-01 | 1.8 | 4 | 2.1 | 4.2 | 0.5 | 1.4 | 9.5 | 41 | 0.43 |
| 57HN41-003-04 | 1.8 | 4 | 7.0 | 1.0 | 7.0 | 14.7 | 9.0 | 41 | 0.43 |
| 57HN46-005A | 1.8 | 4 | 2.3 | 4.2 | 0.55 | 1.5 | 10.6 | 46 | 0.54 |
| 57HN46-003A | 1.8 | 4 | 8.2 | 1.0 | 8.2 | 18 | 10.5 | 46 | 0.54 |
| 57HN51-003A | 1.8 | 4 | 1.5 | 3.0 | 0.5 | 1.4 | 9.5 | 51 | 0.63 |
| 57HN51-005 | 1.8 | 4 | 4.0 | 2.0 | 2.0 | 6.5 | 12 | 51 | 0.63 |
| 57HN56-002 | 1.8 | 4 | 9.0 | 2.5 | 3.6 | 11 | 15 | 56 | 0.68 |
| 57HN56-005-02 | 1.8 | 4 | 6.8 | 1.0 | 6.8 | 24 | 12 | 56 | 0.68 |
| 57HN67-001-15 | 1.8 | 4 | 5.76 | 1.6 | 3.6 | 12 | 19 | 67 | 0.70 |
| 57HN67-004-07 | 1.8 | 4 | 1.5 | 3.0 | 0.5 | 1.8 | 14 | 67 | 0.70 |
*Products can be customized by special request.
*Produdts can match gearbox 42.52.56
When it comes to quality aspect, TB-Motor was qualified by ISO Certificate, CE and Rohs. The product quality has also been recognized by many customers.

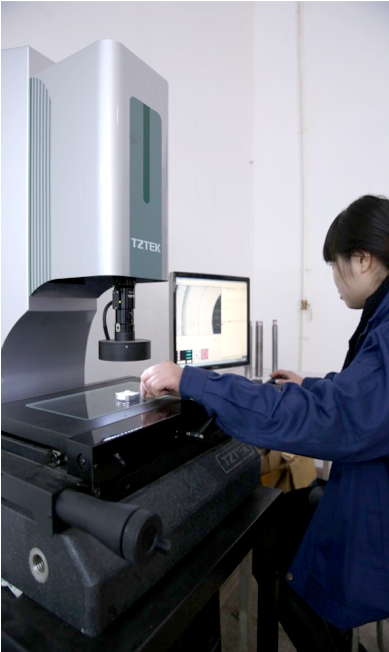

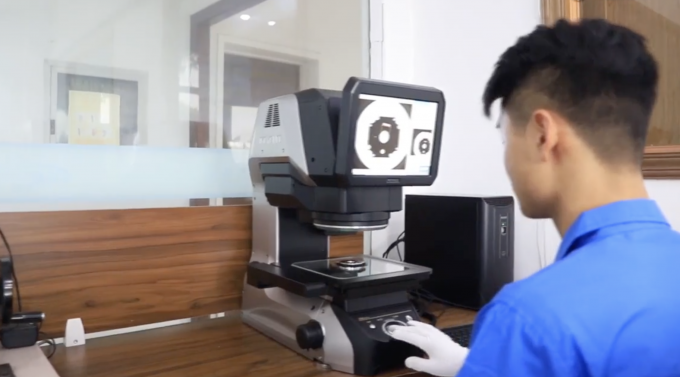

TB-Motor is also proud of its research and develop strength. With the support of professional laboratory and experienced technicians, TB-Motor gained 13 Utility Patents and high-tech enterprise Award as well as other awards during the years.
A stepper motor is an electric motor whose main feature is that its shaft rotates by performing steps, that is, by moving by a fixed amount of degrees. This feature is obtained thanks to the internal structure of the motor and allows to know the exact angular position of the shaft by simply counting how many step have been performed, with no need for a sensor. This feature also makes it fit for a wide range of applications.
