Nema 34 85mm Hybrid Stepper Motor 1.8 Step Angle 4 Or 8 Lead Wire 5.6V 7A
| Place of Origin | China |
|---|---|
| Brand Name | TB-Motor |
| Certification | CE ROHS ISO |
| Model Number | 85HS |
| Minimum Order Quantity | 50 |
| Price | USD |
| Packaging Details | Carton with Inner Foam Box, Pallet |
| Delivery Time | 28-31 DAYS |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 5000 PCS/MONTH |
Leave a Message
Product Details
| Product Name | Hybrid Stepper Motor | Step Angle | 1.8 ° |
|---|---|---|---|
| Current | 1.4A-7A | Rated Voltage | 1.53V-5.6V |
| No. Of Leads | 4 Or 8 | Step Accuracy | ±5% |
| Insulation Resistance | 100MΩ Min.500VC DC | Dielectric Strength | 500VAC 1 Minute |
| MAX Radial Forcece | 220N (20mm From Front Flange) | MAX Axial Force | 60N |
| High Light | Nema 34 85mm Hybrid Stepper Motor,5.6V 7A Hybrid Stepper Motor,1.8deg 8 Wire Stepper Motor | ||
Product Description
High Performance Nema 34 85mm Hybrid Stepper Motor 1.8 Step Angle 4 or 8 Lead Wire 5.6V 7A
A hybrid stepper motor is a combination of the variable reluctance and permanent magnet type motors. The rotor of a hybrid stepper motor is axially magnetized like a permanent magnet stepper motor, and the stator is electromagnetically energized like a variable reluctance stepper motor. Both the stator and rotor are multi-toothed.
The word Hybrid means combination or mixture. A hybrid stepper motor or a HB stepper motor is a combination of the features of the Variable Reluctance Stepper Motor and Permanent Magnet Stepper Motor. The shaft of a stepper motor rotates in discrete step increments when electrical command pulses are applied to it in the proper sequence. HB Stepper motors are the easiest devices for precise positioning control. They are widely being used in various application for position and speed via all kinds of control signals such as digital, analog, communication etc.
Electrical Specification Of Hybrid Stepper Motor
| MODEL | STEP ANGLE (°/STEP) | LEAD WIRE (NO.) | VOLTAGE (V) | CURRENT (A/PHASE) | RESISTANCE (Ω/PHASE) | INDUCTANCE (MH/PHASE) | HOLDING TORQUE (N.M) | MOTOR HEIGHT L(MM) | MOTOR WEIGHT (KG) |
| 85HS68-1404-001 | 1.8 | 4 | 5.6 | 1.4 | 4.0 | 24.0 | 2.8 | 68 | 1.8 |
| 85HS68-4004-001 | 1.8 | 4 | 2.4 | 4.0 | 0.6 | 2.8 | 2.8 | 68 | 1.8 |
| 85HS80-4208-001-02 | 1.8 | 8 | 4.6 | 2.97 | 1.55 | 6.76 | 3.2 | 80 | 2.3 |
| 85HS80-5504-001-06 | 1.8 | 4 | 1.6 | 4.0 | 0.4 | 3.5 | 3.0 | 80 | 2.3 |
| 85HS97-3008-001 | 1.8 | 8 | 4.8 | 3.0 | 1.6 | 8.0 | 5.0 | 97 | 2.8 |
| 85HS97-4006-001 | 1.8 | 6 | 3.4 | 4.0 | 1.0 | 5.0 | 4.4 | 97 | 2.8 |
| 85HS116-4208-001 | 1.8 | 8 | 5.0 | 4.2 | 1.2 | 6.5 | 6.0 | 116 | 3.6 |
| 85HS116-5004-001 | 1.8 | 4 | 4.5 | 5.0 | 0.9 | 11.0 | 8.5 | 116 | 3.6 |
| 85HS126-4008-001 | 1.8 | 8 | 6.0 | 4.0 | 1.5 | 8.0 | 6.8 | 126 | 3.8 |
| 85HS126-6408-001 | 1.8 | 8 | 1.53 | 6.4 | 0.536 | 2.86 | 6.2 | 126 | 3.8 |
| 85HS131-3004-001 | 1.8 | 4 | 5.1 | 3.0 | 1.7 | 18.0 | 9.0 | 131 | 4.2 |
| 85HS131-7004-001 | 1.8 | 4 | 2.8 | 7.0 | 0.4 | 4.0 | 9.0 | 131 | 4.2 |
| 85HS155-5004-001 | 1.8 | 4 | 4.0 | 5.0 | 0.8 | 10.0 | 11.0 | 155 | 5.0 |
| 85HS155-6504-001 | 1.8 | 4 | 3.9 | 6.5 | 0.6 | 7.0 | 10.0 | 155 | 5.0 |
You can download our 85HS Hybrid Stepper Motor product brochure:85HS.pdf

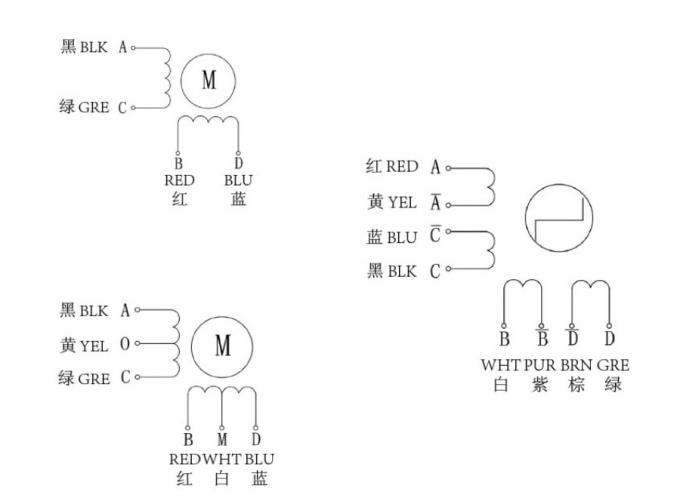

Wiring Diagram

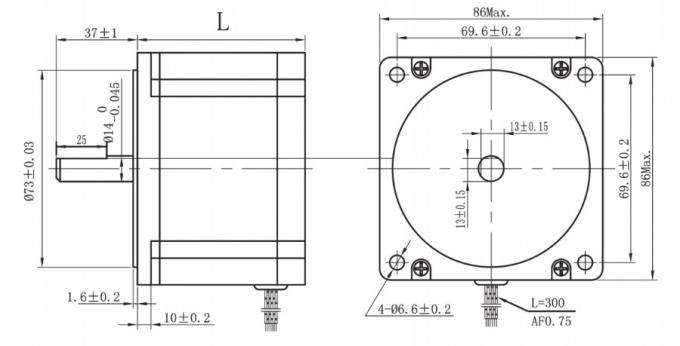

Mechanical Dimension Of Hybrid Stepper Motor
Product Range Of TB-Motor
Our main products are Stepper Motor, Planetary Gearbox& Gearbox Motor, Brushless DC Motor, Servo Motor.
Shanghai TB-Motor is an experienced motor manufacturer. For more than 20 years, TB-Motor dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.

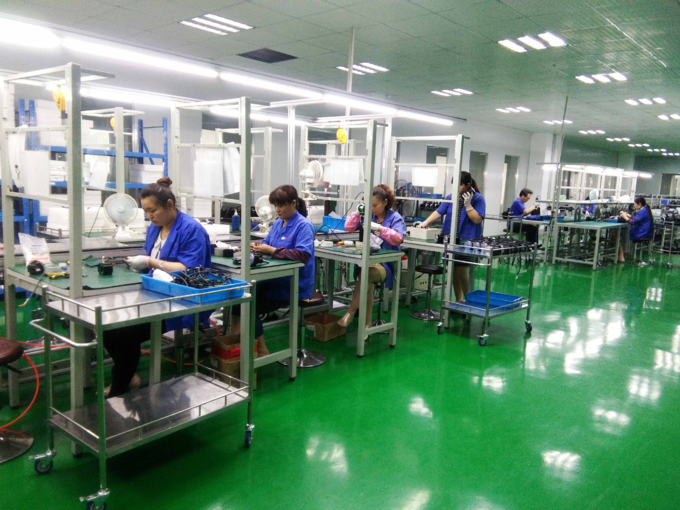

Assembly Line Of Stepper Motor
Packing&Delivery
