Nema 42 110mm High Torque Hybrid Stepper Motor 3 Lead Wire 20V 6.9A

Place of Origin	China
Brand Name	TB-Motor
Certification	CE ROHS ISO
Model Number	110BYGH350
Minimum Order Quantity	50
Price	USD
Packaging Details	Carton with Inner Foam Box, Pallet
Delivery Time	28-31 DAYS
Payment Terms	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability	5000 PCS/MONTH

GET AN ESTIMATE NOW

Product Details

The Name Of Product	Linear Stepper Motor	Step Angle	1.2 °
Rated Voltage	6V-20V	Rated Current	4.3A-6.9A
No. Of Leads	3	Step Accuracy	±5%
Insulation Resistance	100MΩ Min.500VC DC	Dielectric Strength	500VAC 1 Minute
MAX Radial Forcece	330N (20mm From Front Flange)	MAX Axial Force	100N
High Light	110mm High Torque Hybrid Stepper Motor,Nema 42 Hybrid Stepper Motor,20V High Torque Stepper Motor

Product Description

Factory Driect Sale Nema 42 110mm High Torque Hybrid Stepper Motor 3 Lead Wire 20V 6.9A

The Hybrid Stepper Motor applications are as follows

Hybrid Stepper motors are applicable in the production of automated devices, gauges & machines used as cutting, labeling, packaging, filling, etc.

These are used in lane diverters, elevators, and conveyor belts.

These are used in security devices like CC cameras

These are applicable for consumer electronics like printing machines, scanners, digital cameras, etc.

Hybrid Stepping motors are used in the medical field for photography of digital dental, liquid pumps, respirators, the machinery of blood analysis machinery, etc

Hybrid Stepping motors are very popular because it provides good performance in terms of holding torque, speed, and step resolution as compared with the permanent magnet rotor.

Electrical Specification Of Hybrid Stepper Motor

MODEL	STEP ANGLE (°/STEP)	LEAD WIRE (NO.)	VOLTAGE (V)	CURRENT (A/PHASE)	RESISTANCE (Ω/PHASE)	INDUCTANCE (MH/PHASE)	HOLDING TORQUE (N.M)	MOTOR HEIGHT L(MM)	MOTOR WEIGHT (KG)
110BYGH350A-001	1.2	3	6.0	4.3	1.4	9.2	10	120	6.5
110BYGH350B-001	1.2	3	10.2	6.0	1.7	12.0	15	148	7.4
110BYGH350C-001	1.2	3	13.4	6.4	2.1	14.8	19	182	9.8
110BYGH350D-001	1.2	3	20.0	6.9	2.9	22.0	20	216	11.7

You can download our 110BYGH350 Hybrid Stepper Motor product brochure:110BYGH350.pdf

Nema 42 110mm High Torque Hybrid Stepper Motor 3 Lead Wire 20V 6.9A 0

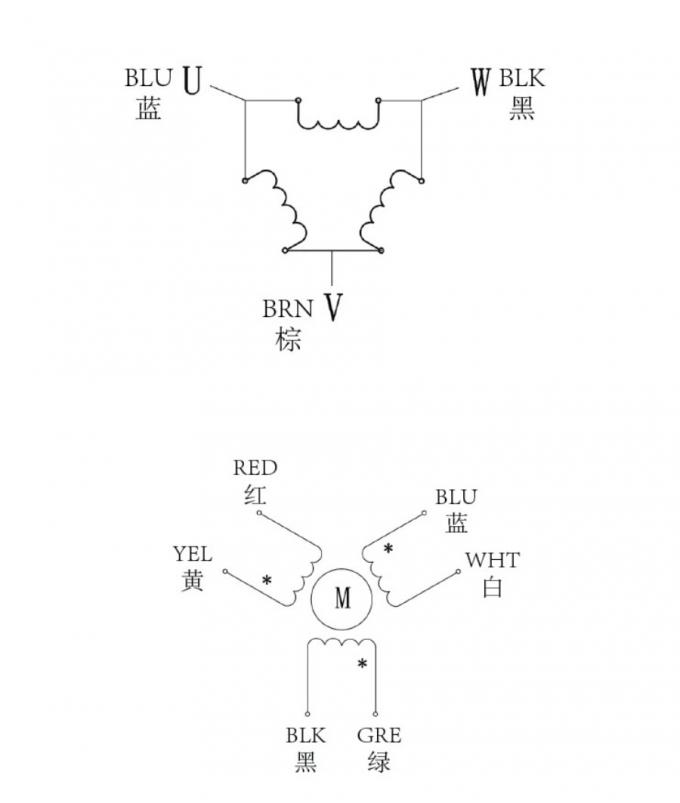

Wiring Diagram

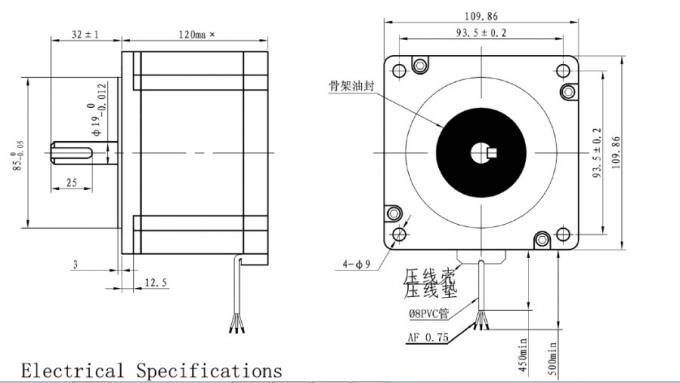

Mechanical Dimension Of Hybrid Stepper Motor
