Nema23 57BYGN204 3.8kg.Cm Hybrid Stepper Motor 11.2V 0.4A 57mm

Place of Origin	China
Brand Name	TB-Motor
Certification	CE ROHS ISO
Model Number	57BYGN204
Minimum Order Quantity	50
Price	USD
Packaging Details	Carton with Inner Foam Box, Pallet
Delivery Time	28-31 DAYS
Payment Terms	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability	5000 PCS/MONTH

GET AN ESTIMATE NOW

Product Details

Product Name	Hybrid Stepper Motor	Step Angle	1.8 °
Lead Wire	6	Rated Voltage	11.2V
Rated Current	0.4A	Resistance	28Ω
Holding Torque	3.8 Kg.cm	Inductance	30mH
Motor Height	51 Mm	Motor Weight	0.65 Kg
High Light	57BYGH 204 Hybrid Stepper Motor,Nema 23 Hybrid Stepper Motor 11.2V,57mm Nema 23 Stepping Motor

Product Description

Nema23 high quality 57mm 57BYGN204 11.2V 0.4A 3.8kg.cm factory direct supply low price hybrid stepper motor

A stepper motor, also known as step motor or stepping motor, is a brushless DC electric motor that divides a full rotation into a number of equal steps. The motor’s position can be commanded to move and hold at one of these steps without any position sensor for feedback (an open-loop controller), as long as the motor is correctly sized to the application in respect to torque and speed.

Switched reluctance motors are very large stepping motors with a reduced pole count, and generally are closed-loop commutated.

Electrical Specification Of Hybrid Stepper Motor

Product Name	Hybrid Stepper Motor
Step Accuracy	± 5%
Dielectric Strength	500V AC 1minute
Ambient Temperature	-20℃~50℃
Insulation resistance	100MΩ Min.500V DC
Step Angle	1.8°
Lead wire	6
Voltage (V)	11.2
Current (A/Phase)	0.4
Holding Torque (Kg.cm)	3.8 Kg.cm

Nema23 57BYGN204 3.8kg.Cm Hybrid Stepper Motor 11.2V 0.4A 57mm 0

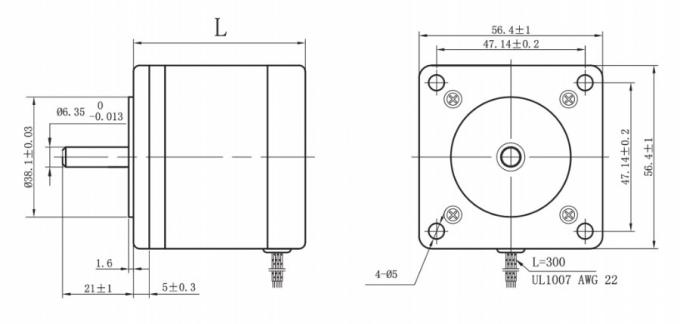

Mechanical Dimension Of Hybrid Stepper Motor

Product Range Of TB-Motor

Our main products are Stepper Motor, Planetary Gearbox& Gearbox Motor, Brushless DC Motor, Servo Motor.

Shanghai TB-Motor is an experienced motor manufacturer. For more than 20 years, TB-Motor dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.
