Nema23 Hybrid Stepper Motor 1.8 Step Angle 5.07V 1.41A 3.6Ω 12.5kg.Cm

Place of Origin	China
Brand Name	TB-Motor
Certification	CE ROHS ISO
Model Number	57BYGH422-45ABE
Minimum Order Quantity	50
Price	USD
Packaging Details	Carton with Inner Foam Box, Pallet
Delivery Time	28-31 DAYS
Payment Terms	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability	5000 PCS/MONTH

GET AN ESTIMATE NOW

Product Details

Product Name	Hybrid Stepper Motor	Voltage	5.07 V
Step Angle	1.8 °	Lead Wire	4
Resistance	3.6 Ω	Motor Weight	12.5 Kg
Inductance	10 MH	Motor Height	72.5 Mm
Holding Torque	12.5 Kg.cm	Current	1.41 A
High Light	Nema23 Hybrid Stepper Motor 1.8deg,Hybrid Stepper Motor 12.5kg.Cm,CE Stepper Motor 1.8 Step Angle

Product Description

Nema23 hybrid stepper motor 1.8 step angle 5.07V 1.41A 3.6Ω 12.5kg.cm stepping motor

The speed of a stepper motor depends on the pulse frequency, the number of rotor teeth and the number of beats. Its angular velocity is proportional to the pulse frequency and synchronized with the pulse in time. Therefore, when the number of rotor teeth and the number of running beats are fixed, the required speed can be obtained as long as the pulse frequency is controlled. Since the stepper motor is started by its synchronous torque, in order not to lose the step, the starting frequency is not high. Especially with the increase of power, the diameter of the rotor increases, the inertia increases, and the starting frequency and the highest operating frequency may differ by as much as ten times.

Electrical Specification Of Hybrid Stepper Motor

Product Name	Hybrid Stepper Motor
Step Accuracy	± 5%
Dielectric Strength	500V AC 1minute
Ambient Temperature	-20℃~50℃
Insulation resistance	100MΩ Min.500VDC
Step Angle	1.8°
Lead wire	4
Voltage (V)	5.07
Current (A/Phase)	1.41
Holding Torque (kg.cm)	12.5

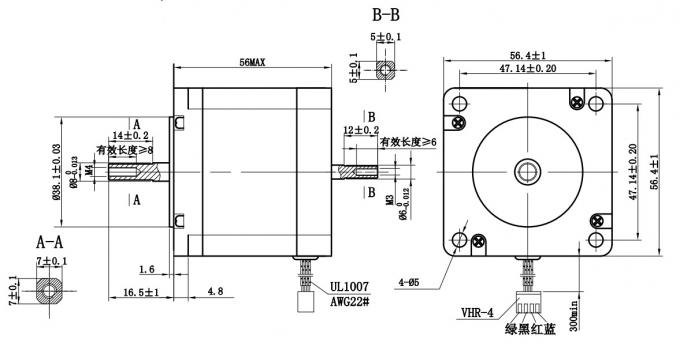

Mechanical Dimension Of Hybrid Stepper Motor

Shanghai TB-Motor is an experienced motor manufacturer. For more than 20 years, TB-Motor dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.

Product Range Of TB-Motor

Based on all this advantages, our company specializes in producing hybrid stepping motors, DC brushless motors, servo motors, gearbox motors and so on. The products are applied in robots, packing machinery, textile machinery, medical instruments, printing machinery, intelligent logistics equipment… TB-Motor also sends its products to USA, Europe, Southeast Asia and all-around China.

Products Annual Capacity

Hybrid stepper motor 3 million units

Brushless DC motor 2 million units

Servo motor 0.05 million units

Gear 0.2 million units

Since the reorganization in 1998, it has formed a certain scale of production and sales, with an annual production of more than 3 million motors.
