0.4a 1.54Nm 15 kg cm Gearbox Stepper Motor 42x42mm Reduction 1 5
| Place of Origin | China |
|---|---|
| Brand Name | TB-Motor |
| Certification | CE ROHS ISO |
| Model Number | 42BYGH603-07AG5 |
| Minimum Order Quantity | 50 |
| Price | USD |
| Packaging Details | Carton with Inner Foam Box, Pallet |
| Delivery Time | 25 DAYS |
| Payment Terms | L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 10000 PCS/MONTH |
Leave a Message
Product Details
| Product Name | Stepping Gearbox Motor | Step Accuracy | ± 5% |
|---|---|---|---|
| IP Level | IP40 | Temperature Rise | 80 ℃ Max |
| Ambient Temperature | -20℃~+50℃ | Dielectric Strength | 500VAC 1 Minute |
| Radial Load(10mm From Flange) | ≤120N | Max Axial Force | ≤80N |
| INDUCTANCE | 65 MH/PHASE | Insulation Resistance | 100MΩ Min.500VC DC |
| High Light | precision stepper motor 42x42mm,Gearbox For Stepper Motor 42x42mm,15 Kg Cm Gearbox Stepper Motor 42x42mm | ||
Product Description

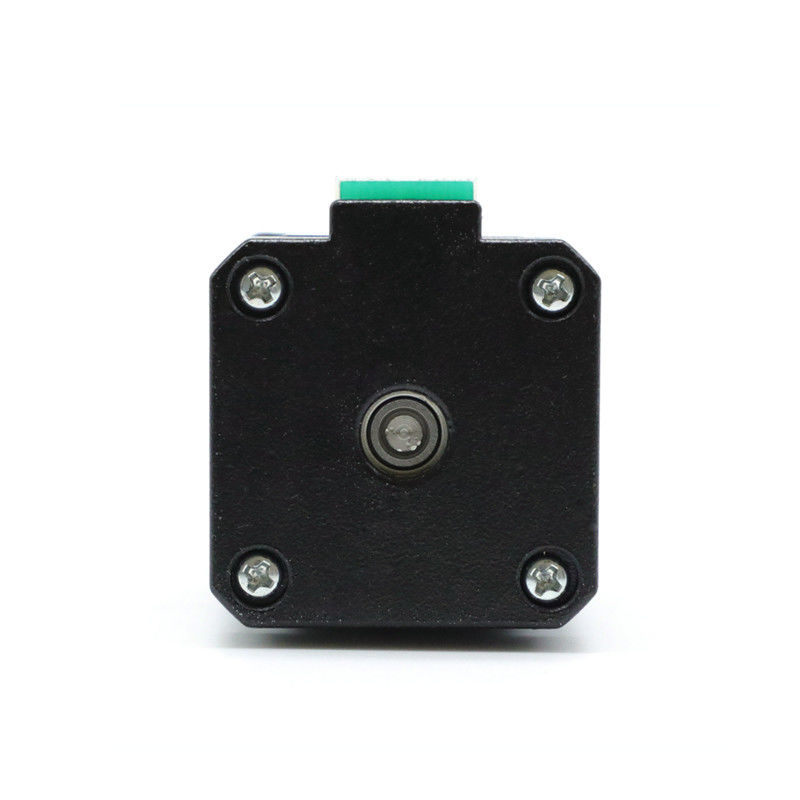

42BYGH603-07AG5 42mm*42mm stepper motor with low noise planetary gearbox reduction ratio 1:5
| Model | Size | Weight(g) | Current/phase | Step Angle | Holding torque with gearbox (Nm) | Radial load(10mm from flange) | Shaft axial load |
| 42BYGH208-58AG117 | 42*42*75.6 mm | 413 | 0.4 | 1.8 | 19.01 | ≤120N (10mm from front flange) | ≤80N |
| 42BYGH603-07AG5 | 42*42*64.5 mm | 385 | 0.4 | 1.8 | 1.54 | ≤120N (10mm from front flange) | ≤80N |
| 42BYGH603-08AG16 | 42*42*72.1 mm | 413 | 0.4 | 1.8 | 4.38 | ≤120N (10mm from front flange) | ≤80N |
| 42BYGH603-10AG54 | 42*42*99.8 mm | 507 | 0.4 | 1.8 | 13.34 | ≤120N (10mm from front flange) | ≤80N |
| 42BYGH603-09AG117 | 42*42*81.6 mm | 453 | 0.4 | 1.8 | 28.90 | ≤120N (10mm from front flange) | ≤80N |
Electrical Specification
| STEP ANGLE | °/STEP | 1.8 |
| RATED VOLTAGE | V | 12 |
| CURRENT | A/PHASE | 0.4 |
| RESISTANCE | Ω/PHASE | 30 |
| INDUCTANCE | mH/PHASE | 65 |
| HOLDING TORQUE | Kg.cm | 3800 |
| INSULATION CLASS | B | |
*Products can be customized by special request.
Wiring Diagram
Mechanical Dimension
GEARBOX Electrical Specification
Out diameter 36mm Powder metallurgy
| Housing material | Bearing at output | Radial load(10mm from flange)N | Shaft axial load(N) | Shaft press-fit force max(N) | Radial play of shaft(mm) | Thrust play of shaft(mm) | Backlash at no-load (°) |
| Powder metallurgy | sleeve bearing | ≤120 | ≤80 | ≤500 | ≤0.03 | ≤0.1 | ≤1.5 |
| Reduction ratio | Rated tolerance torque (Nm) | Max momentary tolerance torque (Nm) | Efficiency% | Length (mm) | Weight(g) | Number of gear trains |
| 1/4 | 0.3 | 1.0 | 81% | 24.8 | 145 | 1 |
| 1/5 | ||||||
| 1/16 | 1.2 | 3.5 | 72% | 32.4 | 173 | 2 |
| 1/20 | ||||||
| 1/25 | ||||||
| 1/53 | 2.5 | 7.5 | 65% | 41.9 | 213 | 3 |
| 1/62 | ||||||
| 1/76 | ||||||
| 1/94 | ||||||
| 1/117 |
What Is A Planetary Gear Set?
A simple planetary gear set is made up of three main components:
1. The sun gear that sits in the centre (central gear).
2. Multiple planet gears.
3. The ring gear (outer gear).
The three components make up a stage within a planetary gearbox. For higher ratios, we can offer double or triple stages.
The company dedicates to produce and design step motor, DC brushless motor, and gearbox motor. Please contact us directly if you’re interested.
