0.87inch Brushless BLDC Gear Motor 24V 300RPM 22BL202AG16 Gearbox Brushless Motor
| Place of Origin | China |
|---|---|
| Brand Name | TB-Motor |
| Certification | CE ROHS ISO |
| Model Number | 22BL202AG16 |
| Minimum Order Quantity | 50 |
| Price | USD |
| Packaging Details | Carton with Inner Foam Box, Pallet |
| Delivery Time | 25 DAYS |
| Payment Terms | L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 10000 PCS/MONTH |
Leave a Message
Product Details
| Product Name | Brushless Gearbox Motor | Voltage | 24V |
|---|---|---|---|
| Rated Speed | 300±10% | Reduction Ratio | 1/16 |
| Rated Torque | 0.25 Nm | Radial Load(10mm From Flange) | ≤35N |
| Shaft Axial Load | ≤15N | Motor Height | 69 Mm |
| Thrust Play Of Shaft | ≤0.4 | Output Power | 7.9W |
| Ambient Temperature | -20℃~+50℃ | Motor Weight | 0.65 Kg |
| High Light | 300RPM BLDC Gear Motor,24V BLDC Gear Motor,Micro Gearbox Brushless Motor | ||
Product Description
0.87inch Brushless 24V 300RPM 0.23N.M BLDC Gear Motor 22BL202AG16 gearbox brushless motor
The advantages of the brushless gearbox motor are low noise stable performance compact in volume. This is a micro motor.
22BL202AG16 is designed for a high proportion of input energy that is conducive to seamless connection with other gear devices. In order to ensure the best and most efficient gear meshing, only precisely designed planetary gearboxes can do it.
Electrical Specification:
| Model | ||
| Motor Part | 22BL202AG16 | |
| Ratio | 1:16 | |
| Gearbox Diameter | 22 | |
| Number Of Phases | Phase | 3 |
| Number Of Poles | Poles | 4 |
| Rated Voltage | VDC | 24 |
| Rated Torque | N.m | 0.25 |
| Rated Speed | Rpm | 300 |
| RatedCurrent | Amps | 0.6 |
| Output Power | Watts | 7.9 |
| Motor Height | mm | 101,4 |
| Motor Weight | Kg | 0.65 |
*Products can be customized by special request.
Wiring Diagram
| ELECTRICAL CONNECTION TABLE | ||
| FUNCTION | COLOR | |
| +5V | RED | UL1332 28AWG |
| HALL A | BROWN | |
| HALL B | WHITE | |
| HALL C | PURPLE | |
| GND | BLACK | |
| PHASE A | YELLOW | |
| PHASE B | GREEN | |
| PHASE C | BLUE | |
| NTC | ORANGE | |

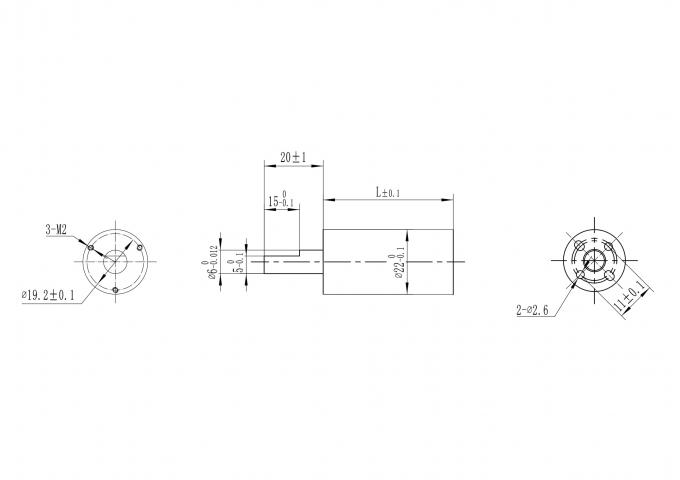

Mechanical Dimension
You can choose different gearbox from:
Out diameter 22mm Powder metallurgy
| Housing material | Bearing at output | Radial load(10mm from flange)N | Shaft axial load(N) | Shaft press-fit force max(N) | Radial play of shaft(mm) | Thrust play of shaft(mm) | Backlash at no-load (°) |
| Powder metallurgy | sleeve bearings | ≤35 | ≤15 | ≤80 | ≤0.08 | ≤0.4 | ≤1.5 |

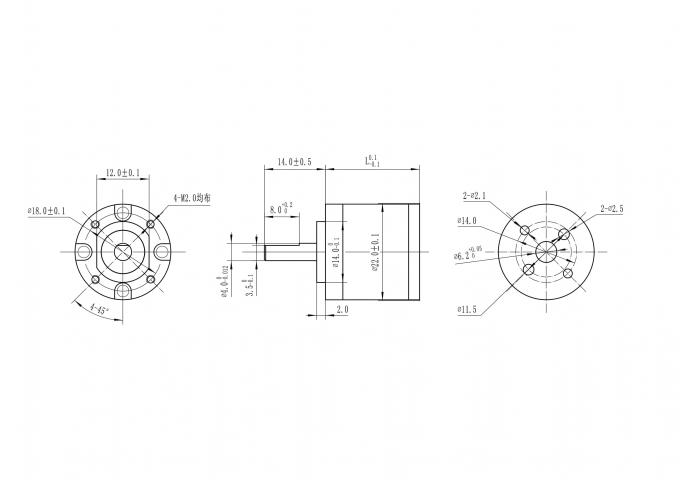

Mechanical Dimension
| Reduction ratio | Rated tolerance torque (Nm) | Max momentary tolerance torque (Nm) | Efficiency% | Length L (mm) | Weight(g) | Number of gear trains |
| 1/4 | 0.1 | 0.3 | 81% | 13.9 | 29 | 1 |
| 1/4.75 | ||||||
| 1/16 | ||||||
| 1/19 | 0.4 | 1.2 | 72% | 32.4 | 52 | 2 |
| 1/22 | ||||||
| 1/26 | ||||||
| 1/76 | 0.8 | 2.5 | 75% | 43.9 | 73 | 3 |
| 1/88 | ||||||
| 1/104 | ||||||
| 1/121 | ||||||
| 1/144 |
| Reduction ratio | Rated tolerance torque (Nm) | Max momentary tolerance torque (Nm) | Efficiency% | Length L (mm) | Weight(g) | Number of gear trains |
| 1/104 | 0.4 | 1.2 | 65% | 22.5 | 30 | 3 |
