0.9 Degree Nema 17 4.2 Kgcm Stepper Motor 4 Wire 2.4 Volt 42BYG

Place of OriginChina
Brand NameTB-Motor
CertificationCE ROHS ISO
Model Number42BYGHM
Minimum Order Quantity50
PriceUSD
Packaging DetailsCarton with Inner Foam Box, Pallet
Delivery Time25 DAYS
Payment TermsL/C, D/P, T/T, Western Union, MoneyGram
Supply Ability10000 PCS/MONTH
GET AN ESTIMATE NOW

Leave a Message

Product Details



Product NameHybrid Stepping MotorStep Accuracy± 5%
Temperature Rise80 ℃ MaxInsulation Resistance100MΩ Min.500VC DC
Ambient Temperature-20℃~+50℃Dielectric Strength500VAC 1 Minute
Max Radial Force28N (20mm From Front Flange)Max Axial Force10N
High Light
nema 17 stepper motor 5kgcm,nema 17 motor slim power 0.9 degree,nema 17 0.9 degree stepper



Product Description



42BYGHM 2-5 kg.cm holding torque lightweight and cost-effective NEMA 17 step motor

A stepper motor is an electric motor whose main feature is that its shaft rotates by performing steps, that is, by moving by a fixed amount of degrees. This feature is obtained thanks to the internal structure of the motor and allows to know the exact angular position of the shaft by simply counting how many steps have been performed, with no need for a sensor. This feature also makes it fit for a wide range of applications.

Electrical Specification

MODELSTEP ANGLE
(°/STEP)
LEAD WIRE
(NO.)
VOLTAGE
(V)
CURRENT
(A/PHASE)
RESISTANCE
(Ω/PHASE)
INDUCTANCE
(MH/PHASE)
HOLDING TORQUE
(G.CM)
MOTOR HEIGHT
L(MM)
MOTOR WEIGHT
(KG)
42BYGHM2030.94100.520402100340.20
42BYGHM213-07A0.94818.0132200340.20
42BYGHM607-160.942.61.71.53.23200400.24
42BYGHM619-080.9411.20.428602800400.24
42BYGHM8050.943.513.57.63700480.34
42BYGHM8100.942.42.41.01.84800480.34

*Products can be customized by special request.

*Products can match gearbox 36, 42mm



*Wiring Diagram
0.9 Degree Nema 17 4.2 Kgcm Stepper Motor 4 Wire 2.4 Volt 42BYG 0

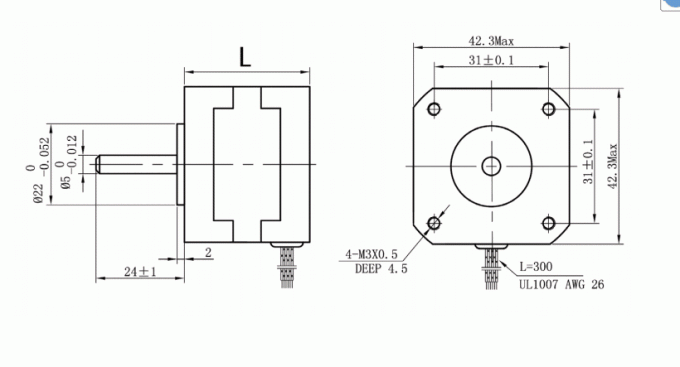

*Mechanical Dimension
0.9 Degree Nema 17 4.2 Kgcm Stepper Motor 4 Wire 2.4 Volt 42BYG 1
