1.8 Degree 6 wire stepper motor 10 kg 12 kg cm 23 kg cm 60mm 4.5V 60BYGH
| Place of Origin | China |
|---|---|
| Brand Name | TB-Motor |
| Certification | CE ROHS ISO |
| Model Number | 60BYGH |
| Minimum Order Quantity | 50 |
| Price | USD |
| Packaging Details | Carton with Inner Foam Box, Pallet |
| Delivery Time | 25 DAYS |
| Payment Terms | L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 10000 PCS/MONTH |
Leave a Message
Product Details
| Product Name | Hybrid Stepping Motor | Insulation Resistance | 100MΩ Min.500VC DC |
|---|---|---|---|
| Temperature Rise | 80 ℃ Max | Ambient Temperature | -20℃~+50℃ |
| Dielectric Strength | 500VAC 1 Minute | Step Accuracy | ± 5% |
| Max Radial Force | 75N (20mm From Front Flange) | Max Axial Force | 15N |
| High Ligh | 12 kg cm stepper motors,23 kg cm stepper motor,26 kg cm stepper moto | ||
Product Description
60BYGH 1.8 Degree Length 87mm Power Stepper Motor 4.5V Stable Performance Low Noise
Stepper motors are DC motors that move in discrete steps. They have multiple coils that are organized in groups called “phases”. By energizing each phase in sequence, the motor will rotate, one step at a time.
| MODEL | STEP ANGLE (°/STEP) | LEAD WIRE (NO.) | VOLTAGE (V) | CURRENT (A/PHASE) | RESISTANCE (Ω/PHASE) | INDUCTANCE (MH/PHASE) | HOLDING TORQUE (KG.CM) | MOTOR HEIGHT L(MM) | MOTOR WEIGHT (KG) |
|---|---|---|---|---|---|---|---|---|---|
| 60BYGH402-13A | 1.8 | 6 | 2.4 | 3.0 | 0.8 | 1.6 | 10 | 56 | 0.77 |
| 60BYGH410-05A | 1.8 | 4 | 6.0 | 1.0 | 6.0 | 16 | 12.5 | 56 | 0.77 |
| 60BYGH502-03A | 1.8 | 4 | 5.32 | 1.4 | 3.8 | 10 | 12.5 | 64 | 1.00 |
| 60BYGH500 | 1.8 | 6 | 3.6 | 1.5 | 8.4 | 8.0 | 12.5 | 64 | 1.00 |
| 60BYGH805-56 | 1.8 | 4 | 2.8 | 4.0 | 0.8 | 3.5 | 23.5 | 87 | 1.34 |
| 60BYGH808A | 1.8 | 4 | 4.5 | 3.0 | 1.5 | 5.0 | 26 | 87 | 1.34 |
*Products can be customized by special request.
*Products can match gearbox 52.56
Wiring Diagram

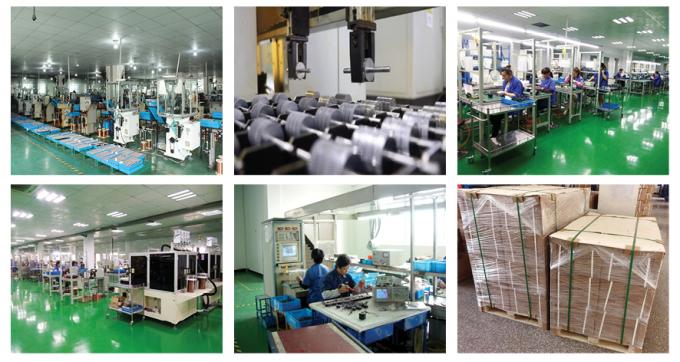

Shanghai TB-Motor is also proud of its research and develop strength. With the support of professional laboratory and experienced technicians, TB-Motor gained 13 Utility Patents and high-tech enterprise Award as well as other awards during the years.
FAQ
1. Are you a factory?
Yes, we are a factory. Our brand name TB-Motor is a well-known micro motor manufacturer for more than 20 years in
China. Main products including hybrid stepper motor, brushless DC motor, servo motor, and planetary gearbox.
2. Can I test the sample?
Yes, samples and freight are charged.
3. Can I get a Customized product?
Sure, all the products can be customized based on special requests.
4. How do you ship the goods?
We normally ship goods by express(DHL/UPS/FEDEX/TNT), by sea and by air, also accept freight forwarder.
5. What are the payment terms?
T/T(bank transfer), Paypal(0.5% paypal charges), ALIBABA assurance order accept
6. Is this your final price? May I have the discount?
Our price is the factory price. If you have a large quantity, we can negotiate about the discount.
7. What is the Warranty for your products?
Our warranty is for one year. If any quality problems occurred on our side during this period, we will take on the shipping cost and replacement. please note damage caused by improper use of the product is not covered by the warranty.
