1.8 Degree Hybrid Stepper Motor 4 Leads 6 Wires Nema 17 42mm 12V 1.7A
| Place of Origin | China |
|---|---|
| Brand Name | TB-Motor |
| Certification | CE ROHS ISO |
| Model Number | 42BYGH |
| Minimum Order Quantity | 50 |
| Price | USD |
| Packaging Details | Carton with Inner Foam Box, Pallet |
| Delivery Time | 28-31 DAYS |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 5000 PCS/MONTH |
Leave a Message
Product Details
| Product Name | Hybrid Stepper Motor | Step Angle | 1.8 ° |
|---|---|---|---|
| Number Of Leads | 4,6 | Rated Voltage | 2.5-12V |
| Max Axial Force | 10N | MAX Radial Force | 28N (20mm From Front Flange) |
| Dielectric Strength | 500VAC 1 Minute | Insulation Resistance | 100MΩ Min.500VC DC |
| Temperature Rise | 80 ℃ Max | Step Accuracy | ±5% |
| High Light | 1.8 Degree Hybrid Stepper Motor 42mm,12V Hybrid Stepper Motor 4 Leads，12v Dc Stepper Motor 1.7A | ||
Product Description
Nema 17 42mm Low Noise Hybrid Stepper Motor 1.8 Step Angle 4 Leads 6 Wires 12V 1.7A
The Hybrid stepper motor is an electric motor whose main feature is that its shaft rotates by performing steps, that is, by moving by a fixed amount of degrees.
The stepper motors move in precisely repeatable steps, hence they are the motors of choice for the machines requiring precise position control. The NEMA 17 Hybrid Stepper Motor provides excellent response to starting, stopping, and reversing pulses from the stepper motor driver.
Electrical Specification Of Hybrid Stepper Motor
| MODEL | STEP ANGLE (°/STEP) | LEAD WIRE (NO.) | VOLTAGE (V) | CURRENT (A/PHASE) | RESISTANCE (Ω/PHASE) | INDUCTANCE (MH/PHASE) | HOLDING TORQUE (G.CM) | MOTOR HEIGHT L(MM) | MOTOR WEIGHT (KG) |
| 42BYGH208-52A | 1.8 | 4 | 12 | 0.4 | 30 | 42 | 2500 | 34 | 0.20 |
| 42BYGH243-03 | 1.8 | 4 | 2.6 | 1 | 2.6 | 3.2 | 1800 | 34 | 0.20 |
| 42BYGH622-28A | 1.8 | 4 | 4.8 | 1 | 4.8 | 6.0 | 2900 | 40 | 0.24 |
| 42BYGH613-68A | 1.8 | 4 | 2.5 | 1.7 | 1.5 | 2.5 | 3500 | 40 | 0.24 |
| 42BYGH705-07 | 1.8 | 4 | 12 | 0.3 | 40 | 80 | 4000 | 44 | 0.30 |
| 42BYGH721A | 1.8 | 6 | 10 | 0.25 | 40 | 36 | 2000 | 44 | 0.30 |
| 42BYGH801-36 | 1.8 | 6 | 12 | 0.4 | 30 | 22 | 3800 | 48 | 0.34 |
| 42BYGH872A | 1.8 | 4 | 2.8 | 1.7 | 1.65 | 2.8 | 4500 | 48 | 0.34 |
| 42BYGH910-02 | 1.8 | 4 | 5.1 | 1.5 | 3.4 | 8.0 | 8500 | 60 | 0.49 |
| 42BYGH905-13 | 1.8 | 4 | 3.15 | 1.5 | 2.1 | 5.0 | 6800 | 60 | 0.49 |
You can download our 42BYGH Hybrid Stepper Motor product brochure:42BYGH.pdf

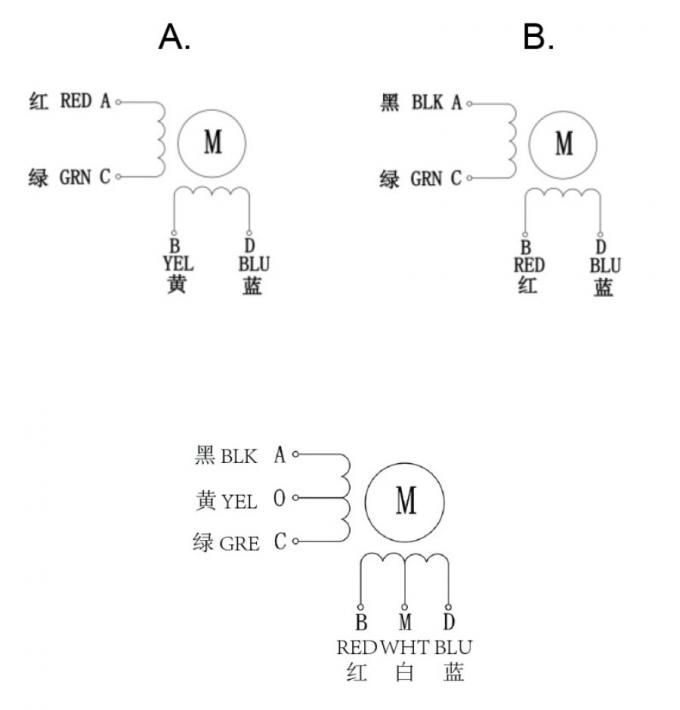

Wiring Diagram

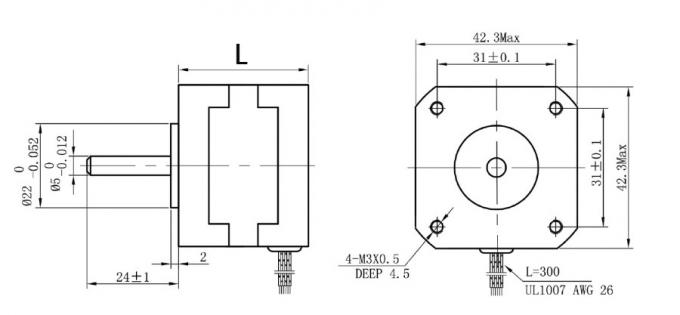

Mechanical Dimension Of Hybrid Stepper Motor
