1.8 Degree nema 23 270 oz stepper motors 57mm 4 Leads 0.9Nm 2.7v 57BYG617-01B
| Place of Origin | China |
|---|---|
| Brand Name | TB-Motor |
| Certification | CE ROHS ISO |
| Model Number | 57BYG617-01B |
| Minimum Order Quantity | 50 |
| Price | USD |
| Packaging Details | Carton with Inner Foam Box, Pallet |
| Delivery Time | 25 DAYS |
| Payment Terms | L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 10000 PCS/MONTH |
Leave a Message
Product Details
| Product Name | Hybrid Stepping Motor | Step Accuracy | ± 5% |
|---|---|---|---|
| Temperature Rise | 80 ℃ Max | Insulation Resistance | 100MΩ Min.500VC DC |
| Ambient Temperature | -20℃~+50℃ | Dielectric Strength | 500VAC 1 Minute |
| Max Radial Force | 75N (20mm From Front Flange) | Max Axial Force | 15N |
| Motor Length | 78mm | Motr Weight | 0.95kg |
| High Light | Hybrid Stepper Motor 57mm,nema 23 stepper motor 270 oz-in,Stepper Motor 57mm 4 Leads | ||
Product Description
57BYG617-01B 1.8 Degree Stepper Motor Length 78mm High Output Hybrid Stepper Motor
Construction & Working Principle
The construction of a stepper motor is fairly related to a DC motor. It includes a permanent magnet like Rotor which is in the middle & it will turn once force acts on it. This rotor is enclosed through a no. of the stator which is wound through a magnetic coil all over it. The stator is arranged near to rotor so that magnetic fields within the stators can control the movement of the rotor.
Model Number | 57BYG617-01B |
Step Accuracy | ± 5% |
Step Angle | 1.8° |
Lead Wire | 4 |
Voltage (V) | 2.7 |
Current (A/Phase) | 1.5 |
Holding Torque (N.m) | 0.9 |
| Resistance (Ω/phase) | 2.2 |
| Inductance (mH/phase) | 6.3 |
| Motor length (MM) | 78 |
| Motr Weight(K/g) | 0.95 |
| Insulation Class | B |
*Products can be customized by special request.
Wiring Diagram
| MODEL | STEP ANGLE (°/STEP) | LEAD WIRE (NO.) | VOLTAGE (V) | CURRENT (A/PHASE) | RESISTANCE (Ω/PHASE) | INDUCTANCE (MH/PHASE) | HOLDING TORQUE (KG.CM) | MOTOR HEIGHT L(MM) | MOTOR WEIGHT (KG) |
|---|---|---|---|---|---|---|---|---|---|
| 57BYGN001 | 1.8 | 6 | 12 | 0.38 | 32 | 25 | 3.0 | 41 | 0.45 |
| 57BYGN027 | 1.8 | 4 | 2.8 | 1.4 | 2.1 | 3.5 | 3.9 | 41 | 0.45 |
| 57BYGN200-19A | 1.8 | 6 | 5 | 1.0 | 5.0 | 11.5 | 5.8 | 51 | 0.65 |
| 57BYGN204 | 1.8 | 6 | 11.2 | 0.4 | 28 | 30 | 3.8 | 51 | 0.65 |
| 57BYGN400-11A | 1.8 | 4 | 5.5 | 1.1 | 5.0 | 12 | 7.8 | 56 | 0.70 |
| 57BYGN412 | 1.8 | 4 | 4.4 | 2.0 | 2.2 | 6.3 | 9.0 | 56 | 0.70 |
*Products can be customized by special request.
*Can match with gearbox 42, 52, 56
When it comes to quality aspect, TB-Motor was qualified by ISO Certificate, CE and Rohs. The product quality has also been recognized by many customers.

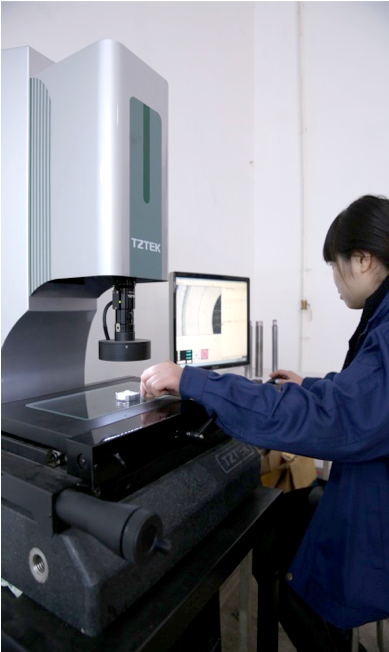

Hetai is also proud of its research and develop strength. With the support of professional laboratory and experienced technicians, TB-Motor gained 13 Utility Patents and high-tech enterprise Award as well as other awards during the years.
