12v Dc 280 Oz Stepper Motor High Torque 42BYGHW801-27
| Place of Origin | China |
|---|---|
| Brand Name | TB-Motor |
| Certification | CE ROHS ISO |
| Model Number | 42BYGHW801-27 |
| Minimum Order Quantity | 50 |
| Price | USD |
| Packaging Details | Carton with Inner Foam Box, Pallet |
| Delivery Time | 25 DAYS |
| Payment Terms | L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 10000 PCS/MONTH |
Leave a Message
Product Details
| Product Name | Hybrid Stepping Motor | Step Accuracy | ± 5% |
|---|---|---|---|
| Inductance | 1.8mH | Temperature Rise | 80 ℃ Max |
| Insulation Resistance | 100MΩ Min.500VC DC | Ambient Temperature | -20℃~+50℃ |
| Voltage | 12V | Dielectric Strength | 500VAC 1 Minute |
| Max Radial Force | 28N (20mm From Front Flange) | Max Axial Force | 10N |
| High Light | 12v Dc 280 Oz Stepper Motor 42BYGHW801-27,12 Volt Dc Stepper Motor High Torque,Stepper Motor High Torque 0.32nm | ||
Product Description
Professional Manufacture 42BYGHW801-27 High Torque 12v Dc Motor Stepper
Stepper motors are DC motors that move in discrete steps. They have multiple coils that are organized in groups called “phases”. By energizing each phase in sequence, the motor will rotate, one step at a time.
Electrical Specification:
Model Number | 42BYGHW801-27 |
Step Accuracy | ± 5% |
Step Angle | 1.8° |
Lead Wire | 4 |
Voltage (V) | 12 |
Current (A/Phase) | 0.4 |
Holding Torque (N.m) | 0.32 |
| Resistance (Ω/phase) | 1.0 |
| Inductance (mH/phase) | 1.8 |
| Motor length (MM) | 48 |
| Motr Weight(K/g) | 0.34 |
| Insulation Class | B |
*Products can be customized by special request.
| MODEL | STEP ANGLE (°/STEP) | LEAD WIRE (NO.) | VOLTAGE (V) | CURRENT (A/PHASE) | RESISTANCE (Ω/PHASE) | INDUCTANCE (MH/PHASE) | HOLDING TORQUE (G.CM) | MOTOR HEIGHT L(MM) | MOTOR WEIGHT (KG) |
|---|---|---|---|---|---|---|---|---|---|
| 42BYGHM203 | 0.9 | 4 | 10 | 0.5 | 20 | 40 | 2100 | 34 | 0.20 |
| 42BYGHM213-07A | 0.9 | 4 | 8 | 1 | 8.0 | 13 | 2200 | 34 | 0.20 |
| 42BYGHM607-16 | 0.9 | 4 | 2.6 | 1.7 | 1.5 | 3.2 | 3200 | 40 | 0.24 |
| 42BYGHM619-08 | 0.9 | 4 | 11.2 | 0.4 | 28 | 60 | 2800 | 40 | 0.24 |
| 42BYGHM805 | 0.9 | 4 | 3.5 | 1 | 3.5 | 7.6 | 3700 | 48 | 0.34 |
| 42BYGHM810 | 0.9 | 4 | 2.4 | 2.4 | 1.0 | 1.8 | 4800 | 48 | 0.34 |
*Products can be customized by special request.
*Produdts can match gearbox 36.42

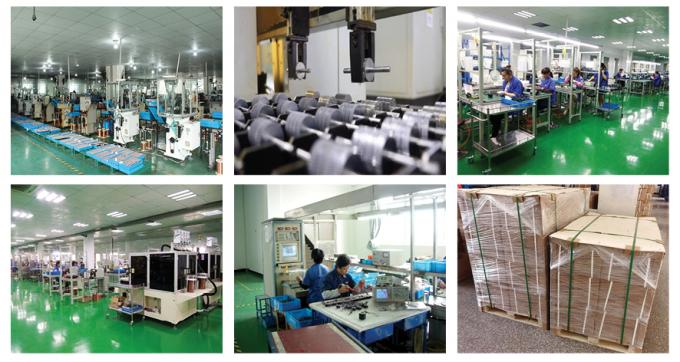

When it comes to quality aspect, Hetai was qualified by ISO Certificate, CE and Rohs. The product quality has also been recognized by many customers.
TB-Motor is also proud of its research and develop strength. With the support of professional laboratory and experienced technicians, TB-Motor gained 13 Utility Patents and high-tech enterprise Award as well as other awards during the years.
