12v Dc Stepper Motor Reduction Gearbox 4.4 Kg Cm 1.78 NM Reduction Ratio 1 5
| Place of Origin | China |
|---|---|
| Brand Name | TB-Motor |
| Certification | CE ROHS ISO |
| Model Number | 42BYGH835-07AG5 |
| Minimum Order Quantity | 50 |
| Price | USD |
| Packaging Details | Carton with Inner Foam Box, Pallet |
| Delivery Time | 25 DAYS |
| Payment Terms | L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 10000 PCS/MONTH |
Leave a Message
Product Details
| Product Name | Stepping Gearbox Motor | RESITSTANCE | 24Ω/PHASE |
|---|---|---|---|
| Temperature Rise | 80 ℃ Max | Insulation Resistance | 100MΩ Min.500VC DC |
| Ambient Temperature | -20℃~+50℃ | Dielectric Strength | 500VAC 1 Minute |
| Step Accuracy | ± 5% | Max Radial Force | 28N (20mm From Front Flange) |
| Max Axial Force | 10N | INDUCTANCE | 36 MH/PHASE |
| High Light | 12v Dc Stepper Motor Reduction Gearbox 1.78 NM,Planetary Stepper Motor 1.78 NM,Stepper Motor 4.4Kg Cm | ||
Product Description
42BYGH835-07AG5 DC 12V 4.4 kg.cm torque stepper motor electrical planetary 1 gear train
| Model | Reduction Ratio | Weight(g) | Phase | Radial load(10mm from flange) | Shaft axial load | Torque n.m |
| 42BYGH835-07AG5 | 1:5 | 485 | 2 | ≤120N | ≤ 80N | 1.78 |
| 42BYGH835-08AG16 | 1:16 | 513 | 2.5 | |||
| 42BYGH835-10AG54 | 1:54 | 607 | 8 | |||
| 42BYGH835-09AG117 | 1:117 | 553 | 2.5 |
Always remember to choose a planetary gearbox with the right specifications since it’s a sure way to improve the efficiency of any mechanical system.
1.Increased repeatability: Its greater speed radial and axial load offer reliability and robustness, minimizing the misalignment of the gear.
2.Perfect precision: Most rotating angular stability improves the accuracy and reliability of the movement.
3.Lower noise level because there is more surface contact. Rolling is much softer and jumps are virtually nonexistent.
4.Greater durability: Due to its torsional rigidity and better rolling. Thus, greater efficiency of the gear and a much smoother operation is achieved.
Electrical Specification
| 42BYGH835-07AG5 | ||
| STEP ANGLE | °/STEP | 1.8 |
| RATED VOLTAGE | V | 12 |
| CURRENT | A/PHASE | 0.5 |
| RESISTANCE | Ω/PHASE | 24 |
| INDUCTANCE | mH/PHASE | 36 |
| HOLDING TORQUE | kg.cm | 4.4 |
| INSULATION CLASS | B | |
*Products can be customized by special request.
Out diameter 36mm Powder metallurgy
| Housing material | Bearing at output | Radial load(10mm from flange)N | Shaft axial load(N) | Shaft press-fit force max(N) | Radial play of shaft(mm) | Thrust play of shaft(mm) | Backlash at no-load (°) |
| Powder metallurgy | sleeve bearings | ≤120 | ≤80 | ≤500 | ≤0.03 | ≤0.1 | ≤1.5 |
| Reduction ratio | Rated tolerance torque (Nm) | Max momentary tolerance torque (Nm) | Efficiency% | Length (mm) | Weight(g) | Number of gear trains |
| 1/4 | 0.3 | 1.0 | 81% | 24.8 | 145 | 1 |
| 1/5 | ||||||
| 1/16 | 1.2 | 3.5 | 72% | 32.4 | 173 | 2 |
| 1/20 | ||||||
| 1/25 | ||||||
| 1/53 | 2.5 | 7.5 | 65% | 41.9 | 213 | 3 |
| 1/62 | ||||||
| 1/76 | ||||||
| 1/94 | ||||||
| 1/117 |

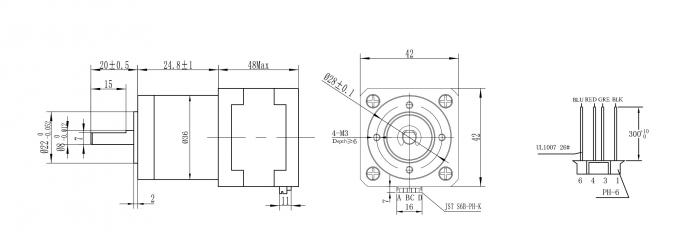

Mechanical Dimension
Applications include
Wheel drives
Track drives
Conveyors
Slew drives
Hoist drives
Mixing
Winch drives
Pumps
Coil tubing injectors
Auger & drilling drives
Cutter head drives
