150kg cm 15 Nm Stepper Motor Motorized Cnc Stepper Motor In Cnc Machine 1.2 Degree
| Place of Origin | China |
|---|---|
| Brand Name | TB-Motor |
| Certification | CE ROHS ISO |
| Model Number | 110BYGH350B-004 |
| Minimum Order Quantity | 50 |
| Price | USD |
| Packaging Details | Carton with Inner Foam Box, Pallet |
| Delivery Time | 25 DAYS |
| Payment Terms | L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 10000 PCS/MONTH |
Leave a Message
Product Details
| Product Name | Hybrid Stepping Motor | Inductance | 12.0mH |
|---|---|---|---|
| Insulation Resistance | 100MΩ Min.500 VDC | Step Accuracy | ± 5% |
| Ambient Temperature | -20℃~+50℃ | Temperature Rise | 80 ℃ Max |
| Dielectric Strength | 500VAC 1 Minute | IP Level | IP40 |
| Max Radial Force | 330N (20mm From Front Flange) | Max Axial Force | 100N |
| High Light | cnc stepper motor,motorized stepper motor,stepper motor in cnc machine | ||
Product Description
150kg-cm 15 Nm Stepper Motor Motorized Cnc Stepper Motor In Cnc Machine 1.2 Degree
A stepper motor is an er whose main feature is that its shaft rotates by performing steps, that is, by moving by a fixed amount of degrees. This feature is obtained thanks to the internal structure of the motor and allows to know the exact angular position of the shaft by simply counting how many steps have been performed, with no need for a sensor. This feature also makes it fit for a wide range of applications.
Electrical Specification:
| Model Number | 110BYGH350B-004 |
| Step Accuracy | ± 5% |
| Step Angle | 1.2° |
| Lead Wire | 4 |
| Voltage (V) | 10.2 |
| Current (A/Phase) | 6 |
| Holding Torque (N.m) | 15 |
| Resistance (Ω/phase) | 1.7 |
| Inductance (mH/phase) | 12.0 |
| Motor length (MM) | 148 |
| Motor Weight(Kg) | 7.4 |
| Insulation Class | B |
*Products can be customized by special request.
Wiring Diagram
Mechanical Dimension
Specification of Other Models:
| MODEL | STEP ANGLE (°/STEP) | LEAD WIRE (NO.) | VOLTAGE (V) | CURRENT (A/PHASE) | RESISTANCE (Ω/PHASE) | INDUCTANCE (MH/PHASE) | HOLDING TORQUE (N.M) | MOTOR HEIGHT L(MM) | MOTOR WEIGHT (KG) |
|---|---|---|---|---|---|---|---|---|---|
| 110BYGH350A-001 | 1.2 | 3 | 6.0 | 4.3 | 1.4 | 9.2 | 10 | 120 | 6.5 |
| 110BYGH350B-001 | 1.2 | 3 | 10.2 | 6.0 | 1.7 | 12.0 | 15 | 148 | 7.4 |
| 110BYGH350C-001 | 1.2 | 3 | 13.4 | 6.4 | 2.1 | 14.8 | 19 | 182 | 9.8 |
| 110BYGH350D-001 | 1.2 | 3 | 20.0 | 6.9 | 2.9 | 22.0 | 20 | 216 | 11.7 |
*Products can be customized by special request.

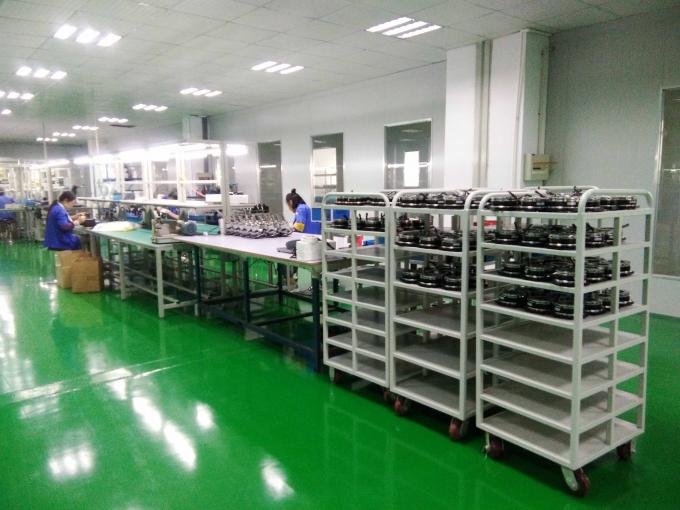

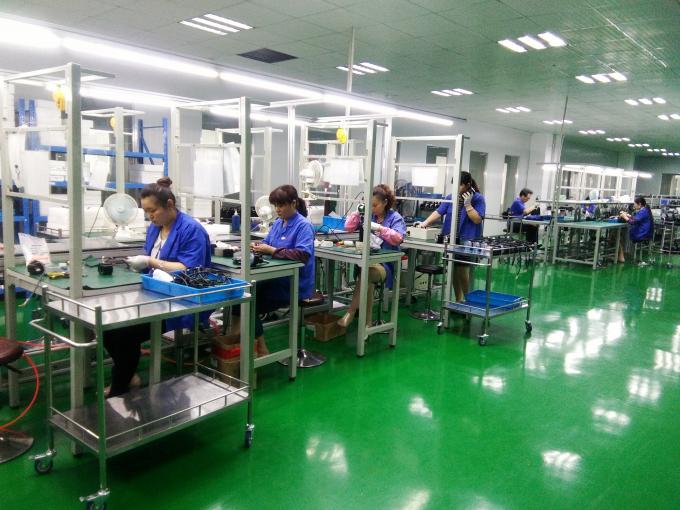

assembly line
