2.24V 8 Leads Two Phase Stepper Motor 1.8 Degrees 0.9Nm 127 Oz In 57BYGH432 02
| Place of Origin | China |
|---|---|
| Brand Name | TB-Motor |
| Certification | CE ROHS ISO |
| Model Number | 57BYGH432-02 |
| Minimum Order Quantity | 50 |
| Price | USD |
| Packaging Details | Carton with Inner Foam Box, Pallet |
| Delivery Time | 25 DAYS |
| Payment Terms | L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 10000 PCS/MONTH |
Leave a Message
Product Details
| Product Name | Hybrid Stepping Motor | Step Accuracy | ± 5% |
|---|---|---|---|
| Temperature Rise | 80 ℃ Max | Voltage | 2.24V |
| Insulation Resistance | 100MΩ Min.500VC DC | Current | 2.8A |
| Ambient Temperature | -20℃~+50℃ | Dielectric Strength | 500VAC 1 Minute |
| Max Axial Force | 15N | Max Radial Force | 75N (20mm From Front Flange) |
| High Light | 8 Leads Two Phase Stepper Motor,Stepper Motor 0.9Nm 127 Oz In,Two Phase Stepper Motor 1.8Degree | ||
Product Description
57BYGH432-02 2.24V 2-phase high-quality 6 leads 1.8 degrees 0.9Nm customizable Hybrid stepper motor
Two-phase Hybrid stepper motor:
Advantages
① High resolution is widely used.
② HIgher torque output
③ More cost-effective choice
Disadvantages
① May occur a large vibration when operates in a low-speed range
② At high speed, the noise is great.
Electrical Specification:
Model Number | 57BYGH432-02 |
Step Accuracy | ± 5% |
Step Angle | 1.8° |
Lead Wire | 8 |
Voltage (V) | 2.24 |
Current (A/Phase) | 2.8 |
Holding Torque (N.m) | 0.9 |
| Resistance (Ω/phase) | 0.8 |
| Inductance (mH/phase) | 1.2 |
| Motor length (MM) | 56 |
| Motor Weight(Kg) | 0.7 |
| Insulation Class | B |
*Products can be customized by special request.
Wiring Diagram
| MODEL | STEP ANGLE (°/STEP) | LEAD WIRE (NO.) | VOLTAGE (V) | CURRENT (A/PHASE) | RESISTANCE (Ω/PHASE) | INDUCTANCE (MH/PHASE) | HOLDING TORQUE (KG.CM) | MOTOR HEIGHT L(MM) | MOTOR WEIGHT (KG) |
|---|---|---|---|---|---|---|---|---|---|
| 57BYGH001A | 1.8 | 4 | 6.0 | 0.5 | 12 | 20 | 3.5 | 41 | 0.45 |
| 57BYGH048-11 | 1.8 | 4 | 4.4 | 2.0 | 2.2 | 5.0 | 6.0 | 41 | 0.45 |
| 57BYGH201-22A | 1.8 | 4 | 6.6 | 0.6 | 11 | 25 | 7.0 | 51 | 0.65 |
| 57BYGH218-45 | 1.8 | 4 | 2.6 | 2.0 | 1.3 | 4 | 8.0 | 51 | 0.65 |
| 57BYGH420-77 | 1.8 | 6 | 3.8 | 2.0 | 1.9 | 3.5 | 9.0 | 56 | 0.70 |
| 57BYGH432-63A | 1.8 | 6 | 2.4 | 3.0 | 0.8 | 1.2 | 9.0 | 56 | 0.70 |
| 57BYGH633-131 | 1.8 | 6 | 3.0 | 3.0 | 1.0 | 1.8 | 13.5 | 78 | 1.00 |
| 57BYGH639-10E | 1.8 | 4 | 2.1 | 4.2 | 0.5 | 1.6 | 18 | 78 | 1.13 |
| 57BYGH801-01 | 1.8 | 6 | 3.3 | 3.0 | 1.1 | 2.5 | 16 | 84 | 1.13 |
| 57BYGH815 | 1.8 | 4 | 7.36 | 1.6 | 4.6 | 16 | 20 | 84 | 1.13 |
*Products can be customized by special request.
*Can match with gearbox 42, 52, 56
Advantages of stepping motor:
1. The rotation angle of the motor is proportional to the input pulse.
2. The motor has full torque at a stand still(if the windings are energized)
3. Precise positioning and repeatability of movement since good stepper motors have an accuracy of 3 – 5% of a step and this error is noncumulative from one step to the next.
4. Excellent response to starting/stopping/reversing.
5. Very reliable since there are no contact brushes in the motor. Therefore the life of the motor is simply dependant on the life of the bearing.
6. The motors response to digital input pulses provides open-loop control, making the motor simpler and less
costly to control.
7. It is possible to achieve very low-speed synchronous rotation with a load that is directly coupled to the shaft.
8. A wide range of rotational speeds can be realized as the speed is proportional to the frequency of the input
pulses.
TB Motor’s Product range:
-Stepper motor
-Brushless DC motor
-Planetary stepper/brushless gearbox motor
-Servo motor
-BLDC motor driver
-Stepper motor driver

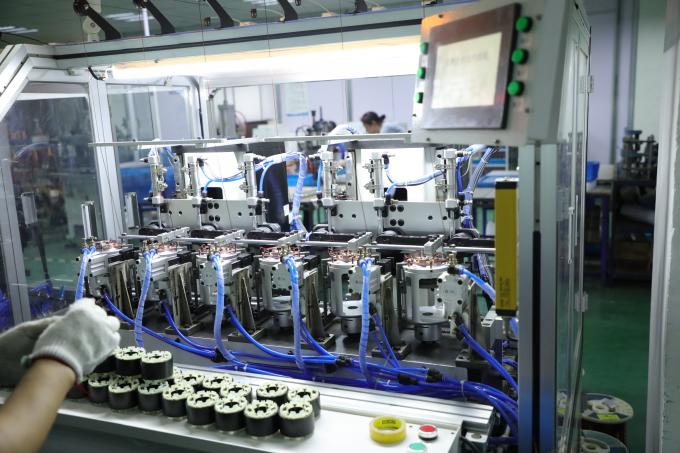

When it comes to quality aspects, TB-Motor was qualified by ISO Certificate, CE and Rohs. The product quality has also been recognized by many customers.
TB-Motor is also proud of its research and development strength. With the support of professional laboratory and experienced technicians, Hetai gained 13 Utility Patents and high-tech enterprise Award as well as other awards during the years.
