2.8v 1.8 Degree High Power Stepper Motor 60mm 2.35nm 60BYGH805 27

Place of OriginChina
Brand NameTB-Motor
CertificationCE ROHS ISO
Model Number60BYGH805-27
Minimum Order Quantity50
PriceUSD
Packaging DetailsCarton with Inner Foam Box, Pallet
Delivery Time25 DAYS
Payment TermsL/C, D/P, T/T, Western Union, MoneyGram
Supply Ability10000 PCS/MONTH
GET AN ESTIMATE NOW

Leave a Message

Product Details

Product NameHybrid Stepping MotorTemperature Rise80 ℃ Max
Insulation Resistance100MΩ Min.500VC DCStep Accuracy± 5%
Ambient Temperature-20℃~+50℃Dielectric Strength500VAC 1 Minute
Max Radial Force75N (20mm From Front Flange)Max Axial Force15N
High Light
1.8 Degree High Power Stepper Motor,High Power Stepper Motor 60mm,60BYGH805 27



Product Description

60BYGH805-27 Customizable 1.8 Degree Length 87mm 2.8v Power Stepper Motor



The Industrial applications of stepping motor include high speed pick and place equipment and multi-axis CNC machines, often directly driving lead screws or ballscrews. In the field of optics they are frequently used in precision positioning equipment such as linear actuators, linear stages, rotation stages, goniometers, and mirror mount

Electrical Specification:

Model Number60BYGH805-27
Step Accuracy± 5%
Step Angle1.8°
Lead Wire4
Voltage (V)2.8
Current (A/Phase)4
Holding Torque (N.m)2.35
Resistance (Ω/phase)0.8
Inductance (mH/phase)3.5
Motor length (MM)87
Motr Weight(K/g)1.34
Insulation ClassB

*Products can be customized by special request.



Wiring Diagram

2.8v 1.8 Degree High Power Stepper Motor 60mm 2.35nm 60BYGH805 27 0

 Mechanical Dimension
2.8v 1.8 Degree High Power Stepper Motor 60mm 2.35nm 60BYGH805 27 1
MODELSTEP ANGLE
(°/STEP)
LEAD WIRE
(NO.)
VOLTAGE
(V)
CURRENT
(A/PHASE)
RESISTANCE
(Ω/PHASE)
INDUCTANCE
(MH/PHASE)
HOLDING TORQUE
(KG.CM)
MOTOR HEIGHT
L(MM)
MOTOR WEIGHT
(KG)
60BYGH402-13A1.862.43.00.81.610560.77
60BYGH410-05A1.846.01.06.01612.5560.77
60BYGH502-03A1.845.321.43.81012.5641.00
60BYGH5001.863.61.58.48.012.5641.00
60BYGH805-561.842.84.00.83.523.5871.34
60BYGH808A1.844.53.01.55.026871.34



*Products can be customized by special request.

*Products can match gearbox 52.56

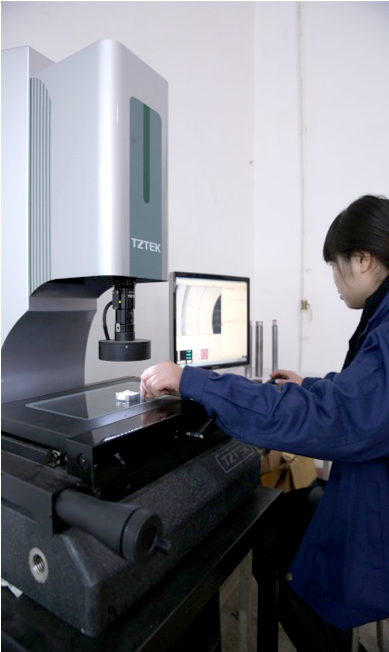

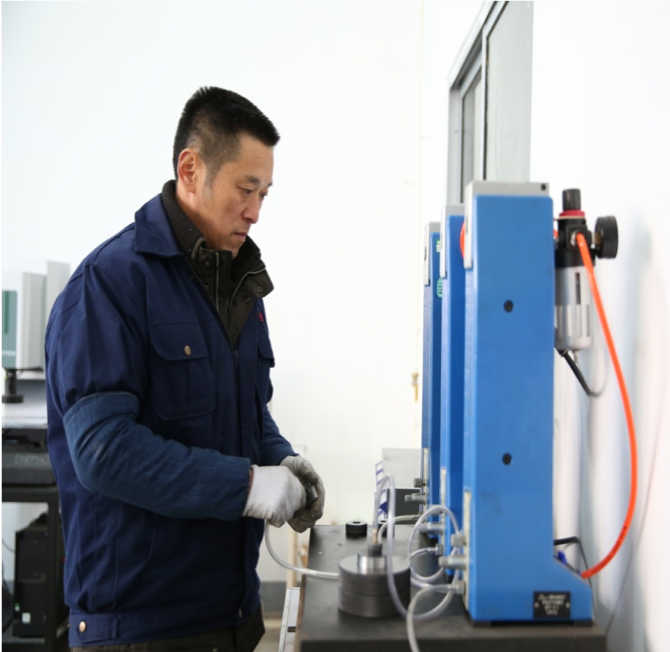

TB-Motor is also proud of its research and develop strength. With the support of professional laboratory and experienced technicians, TB-Motor gained 13 Utility Patents and high-tech enterprise Award as well as other awards during the years.

2.8v 1.8 Degree High Power Stepper Motor 60mm 2.35nm 60BYGH805 27 22.8v 1.8 Degree High Power Stepper Motor 60mm 2.35nm 60BYGH805 27 3
