20 Kg Cm Stepper Motor With Planetary Gearbox
Place of Origin | China |
---|---|
Brand Name | TB-Motor |
Certification | CE ROHS ISO |
Model Number | 57BYGH |
Minimum Order Quantity | 50 |
Price | USD |
Packaging Details | Carton with Inner Foam Box, Pallet |
Delivery Time | 25 DAYS |
Payment Terms | L/C, D/P, T/T, Western Union, MoneyGram |
Supply Ability | 10000 PCS/MONTH |
Leave a Message
Product Details
Product Name | Stepping Gearbox Motor | Gearbox Material | Powder Metallurgy, Zinc Alloy, Engineering Plastics |
---|---|---|---|
Max Reduction Ratio | 1:216 | Step Accuracy | ± 5% |
Temperature Rise | 80 ℃ Max | Insulation Resistance | 100MΩ Min.500VC DC |
Ambient Temperature | -20℃~+50℃ | Dielectric Strength | 500VAC 1 Minute |
Max Radial Force | 75N (20mm From Front Flange) | Max Axial Force | 15N |
High Light | Stepper Motor With Planetary Gearbox,20 kg cm stepper motor,stepper motor 20kg cm |
Product Description
57BYGH match with Powder metallurgy & Zinc alloy planetary gearbox multiple choices
For 57BYGH series motors, you can match with planetary gearbox 42,52,56,63mm.
Zinc alloy and Engineering plastics are more cost-effective compare to powder metallurgy
42mm
Powder metallurgy
52mm
Zinc alloy
56mm
Powder metallurgy
Zinc alloy
Engineering plastics
63mm
Zinc alloy
As well as uses for transmissions in vehicles, planetary gearboxes are used in various industries for different applications. They offer high precision and high torque-to-volume ratio making them well suited to applications that involve; increasing torque, reducing speed, precise positioning, and controlling reproducible machinery.

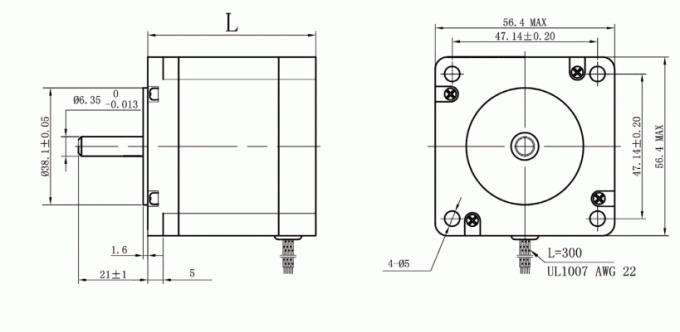

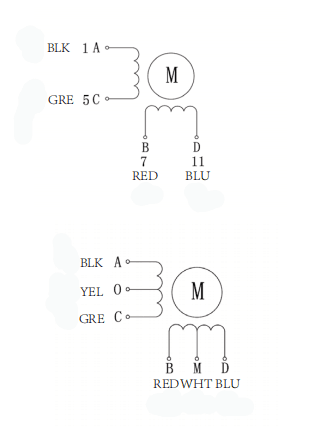

MOTOR PART Electrical Specification:
MODEL | STEP ANGLE (°/STEP) | LEAD WIRE (NO.) | VOLTAGE (V) | CURRENT (A/PHASE) | RESISTANCE (Ω/PHASE) | INDUCTANCE (MH/PHASE) | HOLDING TORQUE (KG.CM) | MOTOR HEIGHT L(MM) | MOTOR WEIGHT (KG) |
---|---|---|---|---|---|---|---|---|---|
57BYGH001A | 1.8 | 4 | 6.0 | 0.5 | 12 | 20 | 3.5 | 41 | 0.45 |
57BYGH048-11 | 1.8 | 4 | 4.4 | 2.0 | 2.2 | 5.0 | 6.0 | 41 | 0.45 |
57BYGH201-22A | 1.8 | 4 | 6.6 | 0.6 | 11 | 25 | 7.0 | 51 | 0.65 |
57BYGH218-45 | 1.8 | 4 | 2.6 | 2.0 | 1.3 | 4 | 8.0 | 51 | 0.65 |
57BYGH420-77 | 1.8 | 6 | 3.8 | 2.0 | 1.9 | 3.5 | 9.0 | 56 | 0.70 |
57BYGH432-63A | 1.8 | 6 | 2.4 | 3.0 | 0.8 | 1.2 | 9.0 | 56 | 0.70 |
57BYGH633-131 | 1.8 | 6 | 3.0 | 3.0 | 1.0 | 1.8 | 13.5 | 78 | 1.00 |
57BYGH639-10E | 1.8 | 4 | 2.1 | 4.2 | 0.5 | 1.6 | 18 | 78 | 1.13 |
57BYGH801-01 | 1.8 | 6 | 3.3 | 3.0 | 1.1 | 2.5 | 16 | 84 | 1.13 |
57BYGH815 | 1.8 | 4 | 7.36 | 1.6 | 4.6 | 16 | 20 | 84 | 1.13 |
*Products can be customized by special request.
*Products can match gearbox 42,52,57,63mm
