2000 RPM 20 Nm 1kw 4kw Ac Servo Motor With Brake 310V High Power
Place of Origin | China |
---|---|
Brand Name | TB-Motor |
Certification | CE ROHS ISO |
Model Number | ES130 |
Minimum Order Quantity | 5 |
Price | USD |
Packaging Details | Carton with Inner Foam Box, Pallet |
Delivery Time | 28-31 |
Payment Terms | L/C, D/P, T/T, Western Union, MoneyGram |
Supply Ability | 1000pcs/month |
Leave a Message
Product Details
Product Name | Servo Motor | Insulation Class | F |
---|---|---|---|
Protection Level | IP65 | Work Temperature | 0℃~+55℃ |
Preserve Temperature | 20℃~80℃ | Work Or Preserve | 90%RH(No Condensation) Above Sea Level 1000m |
Vibration | 5.88/S 2.10-60Hz | No Of Poles | 10 |
Torque | 4.7N.m | Encoder | Optional |
High Light | 1kw ac servo motor,20nm servo motor,2000rpm servo motor |
Product Description
ES130 series 310V Max 20Nm torque 2000 RPM at high power 1kw-4kw servo motor with brake
The ES 130 series has a high power output ranging from 1000W, 1500W, 2000W, 3000W & 4000W at 310 voltage DC. The rated speed is 2000 rpm and the rated torque is 4.7, 7.2, 9.55, and 20Nm. The motor can install with a 17 bit optical or magnetic encoder.
-No of poles: 10
-Vibration: 5.88/S 2.10-60Hz,
-Protection Level: IP65
-Insulation Class: F
-Work Temperature: 0℃~+55℃
Model ES 130 | |||||
Rated Power | Rated Voltage | Rated Speed | Rated Current | Rated Torque | Peak torque |
1000W | 310V | 2000RPM | 5.5A | 4.7N.m | 14.1N.m |
1500W | 2000RPM | 8.8A | 7.2N.m | 21.6N.m | |
2000W | 2000RPM | 12A | 9.55N.m | 28.65N.m | |
1000RPM | 9.5A | 20N.m | Max 40N.m | ||
3000W | 1500RPM | 10A | 14.5N.m | 43.5N.m | |
4000W | 2000RPM | 20A | 20N.m | Max 40N.m |
Model ES 130 -310V (without brake) | |||||||
Rated Power | Max radial force | Max axial force | Weight | Shaft type | Shaft diameter | Feedback device | |
1000W | 490N | 196N | 8kg | Key shaft | φ22 | Multi-turn absolute encoder 17 bit | |
1500W | 8kg | ||||||
2000W | 10kg | ||||||
3000W | 15kg | ||||||
4000W | 15kg |
Electrical Specification:
MODEL | ES13005A-100D20L1 | ES13005A-100D20L2 | ES13005A-150D20L1 | ES13005A-150D20L2 |
RATED POWER (WATTS) | 1000 | 1000 | 1500 | 1500 |
RATED VOLTAGE | 310 | 310 | 310 | 310 |
RATED CURRENT (AMP S) | 5.5 | 5.5 | 8.8 | 8.8 |
RATED SPEED (RPM) | 2000 | 2000 | 2000 | 2000 |
RATED TORQUE (N.M) | 4.70 | 4.70 | 7.20 | 7.20 |
PEAK TORQUE (N.M) | 14.70 | 14.70 | 21.60 | 21.60 |
BACK EMF CONSTANT (V/KRPM) | 55 | 55 | 62 | 62 |
TORQUE COEFFICIENT (N.M/AMPS) | 0.6 | 0.6 | 0.6 | 0.6 |
ROTOR INERTIA (KG.CM2) | 4.5 | 4.5 | 6.7 | 6.7 |
LINE-LINE RESISTANCE (Ω) | 1.20 | 1.20 | 0.80 | 0.80 |
LINE-LINE INDUCTANCE (MH) | 12.0 | 12.0 | 8.4 | 8.4 |
MODEL | ES13005A-200D20L1 | ES13005A-200D20L2 | ES13005A-400D10L1 | ES13005A-400D10L2 |
RATED POWER (WATTS) | 2000 | 2000 | 2000 | 2000 |
RATED VOLTAGE | 310 | 310 | 310 | 310 |
RATED CURRENT (AMP S) | 12.0 | 12.0 | 9.5 | 9.5 |
RATED SPEED (RPM) | 2000 | 2000 | 1000 | 1000 |
RATED TORQUE (N.M) | 9.55 | 9.55 | 20.00 | 20.00 |
PEAK TORQUE (N.M) | 28.65 | 28.65 | 40.00max | 40.00max |
BACK EMF CONSTANT (V/KRPM) | 80 | 55 | 153 | 153 |
TORQUE COEFFICIENT (N.M/AMPS) | 0.79 | 0.6 | 1.5 | 1.5 |
ROTOR INERTIA (KG.CM2) | 8.9 | 8.9 | 17.8 | 17.8 |
LINE-LINE RESISTANCE (Ω) | 0.50 | 0.46 | 1.10 | 1.10 |
LINE-LINE INDUCTANCE (MH) | 5.4 | 6.5 | 13.7 | 13.7 |

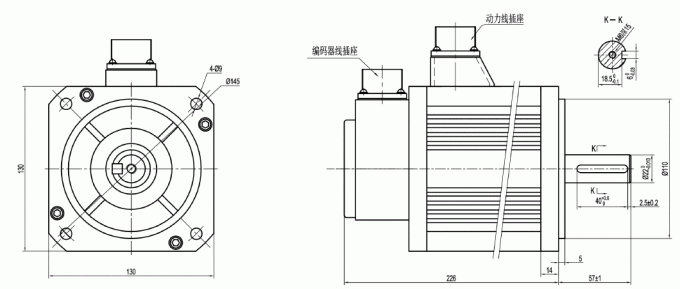

Type | 130 | ||||
Power | 1KW | 1.5KW | 2KW | 4KW | |
Encoder | |||||
Weight | A | ||||
B | |||||
L | 7.26 | 8.34 | 9.47 | 13.6 | |
N |
Type | 130 | ||||
Power | 1KW | 1.5KW | 2KW | 4KW | |
Encoder | |||||
L (mm) | A | ||||
B | |||||
L | 182.5 | 196 | 210 | 262 | |
N |
ES130 is usually matching with L type encoder = Tamagawa Multi-turn absolute encoder 17 bit
Without Brake
L type encoder:
Type | 130 | ||||
Power | 1KW | 1.5KW | 2KW | 4KW | |
Encoder | |||||
L (mm) | A | ||||
B | |||||
L | 143.5 | 157 | 171 | 226 | |
N |
Type | 130 | ||||
Power | 1KW | 1.5KW | 2KW | 4KW | |
Encoder | |||||
Weight
| A | ||||
B | |||||
L | 5 | 6.09 | 7.2 | 11.4 | |
N |
ES130 is usually matching with L type encoder = Tamagawa single ring absolute value 17 bit
