23 Nema Stepper Motor 2a 1.8 2.8v 4 Wire 5kg cm 0.5nm 57BYGH033
| Place of Origin | China |
|---|---|
| Brand Name | TB-Motor |
| Certification | CE ROHS ISO |
| Model Number | 57BYGH033-07 |
| Minimum Order Quantity | 50 |
| Price | USD |
| Packaging Details | Carton with Inner Foam Box, Pallet |
| Delivery Time | 25 DAYS |
| Payment Terms | L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 10000 PCS/MONTH |
Leave a Message
Product Details
| Product Name | Hybrid Stepping Motor | Dielectric Strength | 500VAC 1 Minute |
|---|---|---|---|
| Temperature Rise | 80 ℃ Max | Insulation Resistance | 100MΩ Min.500VC DC |
| Ambient Temperature | -20℃~+50℃ | Step Accuracy | ± 5% |
| Max Radial Force | 75N (20mm From Front Flange) | Max Axial Force | 15N |
| High Light | 23 nema stepper motor 2a 1.8,nema 23 stepper motor 2a 57BYGH033 07,nema 23 stepper motor 5kg cm | ||
Product Description
57BYGH033-07 1.8 Degree Length 17mm milling 2.8V 2A 0.45kg Customizable Stepping Motor

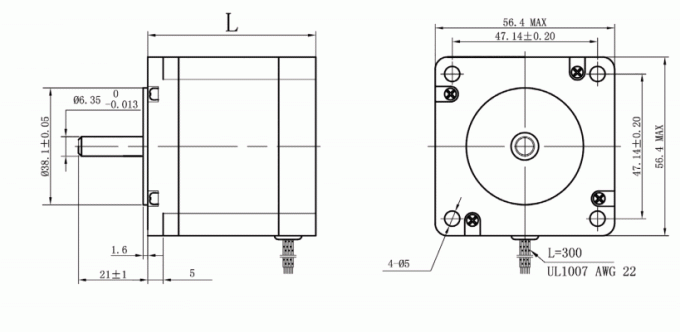

Motor size —————Nema 23, 57mm
Shaft length ———— 20.6 ±1 mm
Milling length ———– 17mm
Working Temperature ———– -20℃~+50℃
Step Angle ———– 1.8°
Step Accuracy ———– ± 5%
| Model Number | 57BYGH033-07 |
| Step Accuracy | ± 5% |
| Step Angle | 1.8° |
| Lead Wire | 4 |
| Voltage (V) | 2.8 |
| Current (A/Phase) | 2 |
| Holding Torque (N.m) | 0.5 |
| Resistance (Ω/phase) | 1.4 |
| Inductance (mH/phase) | 6.3 |
| Motor length (MM) | 41 |
| Motor Weight(Kg) | 0.45 |
| Insulation Class | B |
*Products can be customized by special request.
Wiring Diagram
| MODEL | STEP ANGLE (°/STEP) | LEAD WIRE (NO.) | VOLTAGE (V) | CURRENT (A/PHASE) | RESISTANCE (Ω/PHASE) | INDUCTANCE (MH/PHASE) | HOLDING TORQUE (KG.CM) | MOTOR HEIGHT L(MM) | MOTOR WEIGHT (KG) |
|---|---|---|---|---|---|---|---|---|---|
| 57BYGH001A | 1.8 | 4 | 6.0 | 0.5 | 12 | 20 | 3.5 | 41 | 0.45 |
| 57BYGH048-11 | 1.8 | 4 | 4.4 | 2.0 | 2.2 | 5.0 | 6.0 | 41 | 0.45 |
| 57BYGH201-22A | 1.8 | 4 | 6.6 | 0.6 | 11 | 25 | 7.0 | 51 | 0.65 |
| 57BYGH218-45 | 1.8 | 4 | 2.6 | 2.0 | 1.3 | 4 | 8.0 | 51 | 0.65 |
| 57BYGH420-77 | 1.8 | 6 | 3.8 | 2.0 | 1.9 | 3.5 | 9.0 | 56 | 0.70 |
| 57BYGH432-63A | 1.8 | 6 | 2.4 | 3.0 | 0.8 | 1.2 | 9.0 | 56 | 0.70 |
| 57BYGH633-131 | 1.8 | 6 | 3.0 | 3.0 | 1.0 | 1.8 | 13.5 | 78 | 1.00 |
| 57BYGH639-10E | 1.8 | 4 | 2.1 | 4.2 | 0.5 | 1.6 | 18 | 78 | 1.13 |
| 57BYGH801-01 | 1.8 | 6 | 3.3 | 3.0 | 1.1 | 2.5 | 16 | 84 | 1.13 |
| 57BYGH815 | 1.8 | 4 | 7.36 | 1.6 | 4.6 | 16 | 20 | 84 | 1.13 |
*Products can be customized by special request.
*Can match with gearbox 42, 52, 56

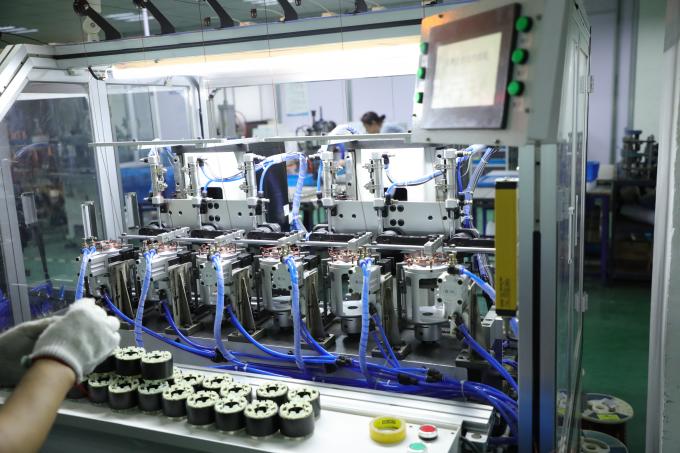

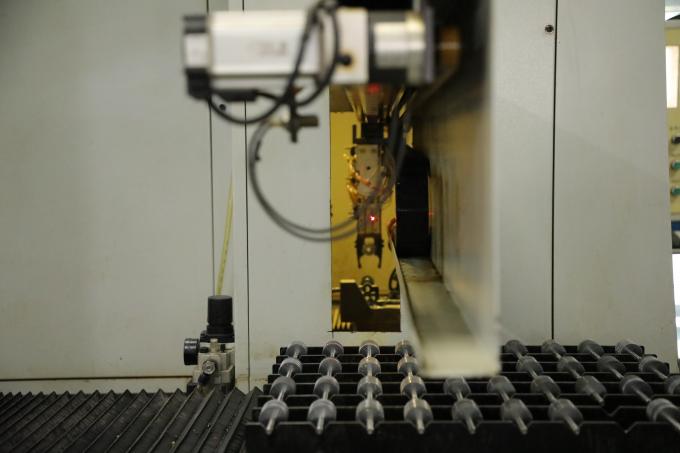

Shanghai TB-Motor is an experienced motor manufacturer. For more than 20 years, TB-Motor dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.
Stepping rotor
TB-Motor ‘s Product range:
-Stepper motor
-Brushless DC motor
-Planetary stepper/brushless gearbox motor
-Servo motor
-BLDC motor driver
Please contact us directly if you’re interested.
