24v 18W Planetary Gearbox Brushless Motor Speed Reducer 3 Phase 36mm 0.04nm
| Place of Origin | China |
|---|---|
| Brand Name | TB-Motor |
| Certification | CE ROHS ISO |
| Model Number | 42BLY01A-004AG25 |
| Minimum Order Quantity | 50 |
| Price | USD |
| Packaging Details | Carton with Inner Foam Box, Pallet |
| Delivery Time | 28-31 |
| Payment Terms | L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 5000pcs/month |
Leave a Message
Product Details
| Product Name | Brushless Gearbox Motor | Winding Type | Star |
|---|---|---|---|
| Hall Effect Angle | 120° Electrical Angle | Insulation Class | B |
| Ambient Temperature | -20℃~+50℃ | Insulation Resistance | 100MΩ Min.500VC DC |
| Dielectric Strength | 600VAC 1 Minute | Radial Load(10mm From Flange | ≤120N |
| Shaft Axial Load | ≤80N | Protection Level | IP40 |
| High Light | planetary reducer gearbox 0.04nm,0.04nm planetary reducer gearbox,planetary speed reducer 0.04nm | ||
Product Description
42BLY01A-004AG25 3 phase brushless motor with 36mm planetary gearbox speed reducer
Wide Speed Ratio with a Long Service Lifespan
42BLY01A-004AG25 consists of a 3 phase 42mm DC brushless motor and a 36mm planetary gearbox. For the same amount of load capacity, our powder metallurgy planetary gearbox has a higher service lifespan than the traditional gearboxes. The key aspects are to improve efficiency and reliability in any mechanical system.
Electrical Specification
| Model | ||
| Manufacture Model | 42BLY01A-004AG25 | |
| Number Of Phases | Phase | 3 |
| Number Of Poles | Poles | 4 |
| Line To Line Resistance | OHMS | 5 |
| Nominal Voltage | VDC | 24 |
| No Load Speed | RPM | 4800 |
| No Load Current | Amps | 0.25 |
| Rated Speed | Rpm | 3500±200 |
| Rated Torque | N.m | 0.04 |
| Peak Torque | N.m | 0.12 |
| Torque Constant | N.m/A | 0.043 |
| Back EMF constant | V/kRPM | 4.4 |
| Body Length | mm | 78 |
| Weight | Kg | 0.56 |
| MOTOR SPECIFICATIONS WITH PLANETARY GEAR | ||
| Rated Torque | N.m | 0.72 |
| Rated Speed | Rpm | 140±10% |
| Rated Power | W | 18W |
| RATIO | 25:1 | |
*Products can be customized by special request.
Wiring Diagram
| FUNCTION | COLOR | |
| +5V | RED | UL1007 26AWG |
| HALL A | YELLOW | |
| HALL B | GREEN | |
| HALL C | BLUE | |
| GND | BLACK | |
| PHASE A | YELLOW | UL3265 22AWG |
| PHASE B | GREEN | |
| PHASE C | BLUE |
Mechanical Dimension
GEARBOX PART Electrical Specification:
36mm Powder metallurgy
| Housing material | Bearing at output | Radial load(10mm from flange)N | Shaft axial load(N) | Shaft press-fit force max(N) | Radial play of shaft(mm) | Thrust play of shaft(mm) | Backlash at no-load (°) |
| Powder metallurgy | sleeve bearings | ≤120 | ≤80 | ≤500 | ≤0.03 | ≤0.1 | ≤1.5 |
| Reduction ratio | Rated tolerance torque (Nm) | Max momentary tolerance torque (Nm) | Efficiency% | Length (mm) | Weight(g) | Number of gear trains |
| 1/4 | 0.3 | 1.0 | 81% | 24.8 | 145 | 1 |
| 1/5 | ||||||
| 1/16 | 1.2 | 3.5 | 72% | 32.4 | 173 | 2 |
| 1/20 | ||||||
| 1/25 | ||||||
| 1/53 | 2.5 | 7.5 | 65% | 41.9 | 213 | 3 |
| 1/62 | ||||||
| 1/76 | ||||||
| 1/94 | ||||||
| 1/117 |

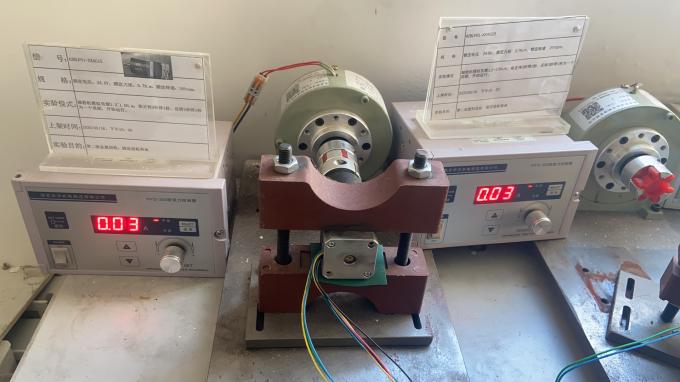

Gearbox Motor Aging Test
