24v Brushless Dc Geared Motor With Planetary Gearbox Powerful 200 RPM 0.04nm
Place of Origin | China |
---|---|
Brand Name | TB-Motor |
Certification | CE ROHS ISO |
Model Number | 42BLY01A-003AG16 |
Minimum Order Quantity | 50 |
Price | USD |
Packaging Details | Carton with Inner Foam Box, Pallet |
Delivery Time | 28-31 |
Payment Terms | L/C, D/P, T/T, Western Union, MoneyGram |
Supply Ability | 5000pcs/month |
GET AN ESTIMATE NOW
Leave a Message
Product Details
Product Name | Brushless Gearbox Motor | Number Of Phases | 3 |
---|---|---|---|
Shaft Axial Load | ≤80 | Radial Load(10mm From Flange) | ≤120 |
Winding Type | Star | Hall Effect Angle | 120° Electrical Angle |
Insulation Class | B | Ambient Temperature | -20℃~+50℃ |
Insulation Resistance | 100MΩ Min.500VC DC | Dielectric Strength | 600VAC 1 Minute |
High Light | brushless planetary gear motor, brushless dc motor with planetary gearbox,bldc motor with planetary gearbox |
Product Description
42BLY01A-003AG16 200 RPM powerful brushless dc geared motor with Powder metallurgy gearbox
42BLY01A motor can match with a 36mm and 42mm gearbox.
Model | Torque N.M | Max Radial load | Shaft axial load | Reduction Ratio | Gearbox Housing Material | Voltage(V) | Power(W) | Speed(RPM) |
42BLY01A-002AG5 | 0.16 | ≤120N (10mm from front flange) | ≤80N | 5:1 | Powder metallurgy | 24 | 12 | 700 |
42BLY01A-003AG16 | 0.46 | 16:1 | 24 | 11 | 218 | |||
42BLY01A-004AG25 | 0.72 | 25:1 | 24 | 18 | 140 | |||
42BLY01A-005AG62 | 1.60 | 62:1 | 24 | 9 | 56 |
Electrical Specification
Motor Part | ||
Manufacture Model | 42BLY01A-003AG16 | |
Number Of Phases | Phase | 3 |
Number Of Poles | Poles | 4 |
Line To Line Resistance | OHMS | 5 |
Nominal Voltage | VDC | 24 |
No Load Speed | RPM | 4800 |
No Load Current | Amps | 0.25 |
Rated Speed | Rpm | 3500±200 |
Rated Torque | N.m | 0.04 |
Peak Torque | N.m | 0.12 |
Torque Constant | N.m/A | 0.043 |
Back EMF constant | V/kRPM | 4.4 |
Body Length | mm | 42 |
Weight | Kg | 0.3 |
SPECIFICATIONS WITH PLANETARY GEAR | ||
Rated Torque | N.m | 0.46 |
Rated Speed | Rpm | 218±10% |
Rated Power | W | 11 |
RATIO | 16:1 |
*Products can be customized by special request.
Wiring Diagram
FUNCTION | COLOR | |
+5V | RED | UL1007 26AWG |
HALL A | YELLOW | |
HALLB | GREEN | |
HALLC | BLUE | |
GND | BLACK | |
PHASE A | YELLOW | UL3265 22AWG |
PHASE B | GREEN | |
PHASE C | BLUE |

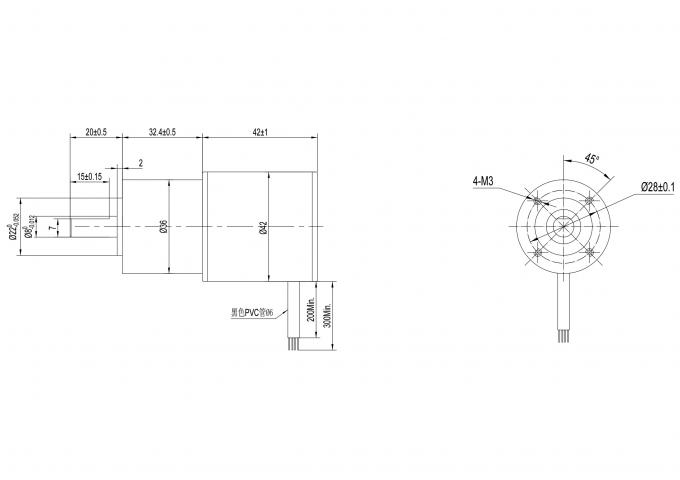

Mechanical Dimension
36mm Powder metallurgy
Housing material | Bearing at output | Radial load(10mm from flange)N | Shaft axial load(N) | Shaft press-fit force max(N) | Radial play of shaft(mm) | Thrust play of shaft(mm) | Backlash at no-load (°) |
Powder metallurgy | sleeve bearings | ≤120 | ≤80 | ≤500 | ≤0.03 | ≤0.1 | ≤1.5 |
Reduction ratio | Rated tolerance torque (Nm) | Max momentary tolerance torque (Nm) | Efficiency% | Length (mm) | Weight(g) | Number of gear trains |
1/4 | 0.3 | 1.0 | 81% | 24.8 | 145 | 1 |
1/5 | ||||||
1/16 | 1.2 | 3.5 | 72% | 32.4 | 173 | 2 |
1/20 | ||||||
1/25 | ||||||
1/53 | 2.5 | 7.5 | 65% | 41.9 | 213 | 3 |
1/62 | ||||||
1/76 | ||||||
1/94 | ||||||
