24V DC Worm Gear Motor High Torque Reduction Gear Box With Encoder
Place of Origin | China |
---|---|
Brand Name | TB-Motor |
Certification | CE ROHS ISO |
Model Number | D45LR25-4586-21 |
Minimum Order Quantity | 50 |
Price | USD |
Packaging Details | Carton with Inner Foam Box, Pallet |
Delivery Time | 28-31 |
Payment Terms | L/C, D/P, T/T, Western Union, MoneyGram |
Supply Ability | 10000 pcs/month |
Leave a Message
Product Details
Product Name | DC Worm Gear Motor | Rated Voltage | 24 V |
---|---|---|---|
Root Diameter | 8 | No-load Current | 1.2 A |
No-load Speed | 426 RPM | Rated Torque | 3.5 Nm |
Pressure Angel | 20° | Torque Constant | 0.072 Nm/A |
Module | 0.27 | Reduction Ratio | 1:21 |
Precision | 8GB2363-90 | Certificition | CE ROHS ISO |
High Light | 24V DC Worm Gear Motor,Encoder DC Worm Gear Motor,High Torque Reduction Gearbox Motor |
Product Description
D45LR25-4586-21 DC Worm Gear Motor 24V High Torque Reduction Gear Box With Encoder
Worm gear motor is a combination by worm gearbox plus DC motor, the worm gearbox is assembled of two main structures: worm meshes with a worm gear, it uses the screw drive principle in a simple machine, this structure is similar to other gear reducers (worm gearboxes), it can reduce the speed or generate a large torque to fit the different use.
TB-Motor’s worm gear reducer series is made of high-quality selected worm meshes with a worm gear. It has high performance, low energy consumption, low noise, small vibration, lightweight and easy to reverse. DC worm geared motor outer diameter size, torque specifications, gearbox specifications, and housings can be designed for different specific needs.
Electrical Specification
MODEL | Reduction Ratio | Voltage | No load | Max efficiency point | Stall point | |||||
rated value (V) | Rotate speed (RPM) | Current (AMPs) | Rotate speed (RPM) | Current (AMPs) | Ratio (%) | Torque (N.M) | Torque (N.M) | Current (AMPs) | ||
D45LR25-4586-21 | 1:21 | 24 | 426 | 1.2 | 344 | 4.3 | 41.0 | 1.2 | 3.5 | 19.0 |
Mechanical Dimension
The specification in Detail:
NMRV | Mounting spec | Dm | transmission ratio | ||||||||||||||||
PAM-IMC | N | M | P | bm | tm | 5 | 7.5 | 10 | 15 | 20 | 25 | 30 | 40 | 50 | 60 | 80 | 90 | ||
25 | 56B14 | 50 | 65 | 80 | 3 | 10.4 | 9 | 9 | 9 | 9 | 9 | 9 | 9 | 9 | 9 | 9 | – | – | 7.5;10;15;20;30;40;50;60 |
30 | 63B5 | 95 | 115 | 140 | 4 | 12.8 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | – | 7.5;10;15;20;25;30;40;50;60;80 |
63B14 | 60 | 75 | 90 | 4 | 12.8 | ||||||||||||||
56B5 | 80 | 100 | 120 | 3 | 10.4 | 9 | 9 | 9 | 9 | 9 | 9 | 9 | 9 | 9 | 9 | 9 | – | ||
56B14 | 50 | 65 | 80 | 3 | 10.4 | ||||||||||||||
40 | 71B5 | 110 | 130 | 160 | 5 | 16.3 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | – | – | – | – | 7.5;10;15;20;25;30;40;50;60;80;100 |
71B14 | 70 | 85 | 105 | 5 | 16.3 | ||||||||||||||
63B5 | 95 | 115 | 140 | 4 | 12.8 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | ||
63B14 | 60 | 75 | 90 | 4 | 12.8 | ||||||||||||||
56B5 | 80 | 100 | 120 | 3 | 10.4 | – | – | – | – | – | – | – | – | – | – | – | – | ||
50 | 80B5 | 130 | 165 | 200 | 6 | 21.8 | 19 | 19 | 19 | 19 | 19 | 19 | 19 | – | – | – | – | – | 7.5;10;15;20;25;30;40;50;60;80;100 |
80B14 | 80 | 100 | 120 | 6 | 21.8 | ||||||||||||||
71B5 | 110 | 130 | 160 | 5 | 16.3 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | |||
71B14 | 70 | 85 | 105 | 5 | 16.3 | ||||||||||||||
63B5 | 95 | 115 | 140 | 4 | 12.8 | – | – | – | – | – | – | – | – | – | – | – | – | ||
63 | 90B5 | 130 | 165 | 200 | 8 | 27.3 | 24 | 24 | 24 | 24 | 24 | 24 | – | – | – | – | – | 7.5;10;15;20;25;30;40;50;60;80;100 | |
90B14 | 95 | 115 | 140 | 8 | 27.3 | ||||||||||||||
80B5 | 130 | 165 | 200 | 6 | 21.8 | – | – | – | – | 19 | 19 | 19 | 19 | 19 | 19 | 19 | 19 | ||
80B14 | 80 | 110 | 120 | 6 | 21.8 | ||||||||||||||
71B5 | 110 | 130 | 160 | 5 | 16.3 | – | – | – | – | – | – | – | 14 | 14 | 14 | 14 | 14 | ||
71B14 | 70 | 85 | 105 | 5 | 16.3 |

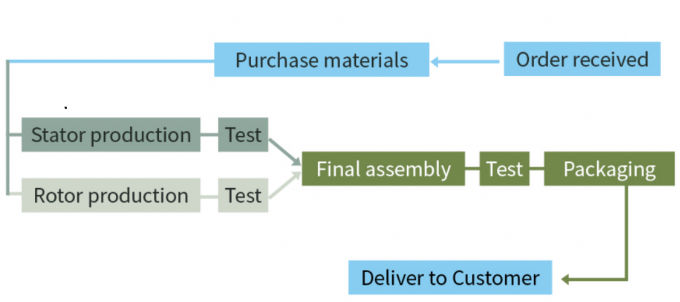

TB-Motor Production Process

Why Choose us
We offer you:
Engineering Support
Our professional team can help you to find the right and suitable motor for you. Our engineers have rich experience of motion control products in various industries, such as robots, packing machinery, textile machinery, medical instruments, printing machinery, intelligent logistics equipment, and so on.
![]() | ![]() | ![]() |
Find | Customise | Optimise |
Our team can help you find most suitable motor for the application from o ur vast selection of motors | We can design and customise the performance and exterior for your pecific use or assembly | For OEM projects, we have over 15 years experience od solving different problems in various application. We improve our product together with our customer. |
Manufacturing Support
Regardless of the volume of the order, we will provide the same service. Our engineering team is able to provide you with quick and accurate prototypes based on your custom requirements.
![]() | ![]() | ![]() |
Prototypes | Standard Batch | High Volume Batch |
1-10pcs | 500-5000pcs | over 5000pcs |
Large-scale production
Our Factory was founded in 1999 and the workshop area is over 15,000㎡. We have our own manufacturing line and CNC machining center, including precision CNC universal grinder brand name (Sweden), CNC brand name (Germany), DMG lathe and milling, DMG lathe, Mahr measuring instrument, Chinese precision cylindrical grinding machine, CNC lathe machine, automatic multi-head winding machine, automatic assembling line and so on.
