28BYGH502 28m Nema11 Stepping Motor Hybrid Stepper Motor

Place of Origin	China
Brand Name	TB-Motor
Certification	CE ROHS ISO
Model Number	28BYGH502
Minimum Order Quantity	50
Price	USD
Packaging Details	Carton with Inner Foam Box, Pallet
Delivery Time	28-31 DAYS
Payment Terms	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability	5000 PCS/MONTH

GET AN ESTIMATE NOW

Product Details

Product Name	Hybrid Stepper Motor	Step Angle	1.8 °
Lead Wire	6	Rated Voltage	3.8V
Holding Torque	0.9 Kg.cm	Current	0.95A
Inductance	1.3 MH	Resistance	4 Ω
Dielectric Strength	500VAC 1 Minute	Certification	CE ROHS ISO
High Light	28m Nema11 Stepping Motor,Hybrid Nema11 Stepping Motor,500VAC Hybrid Stepper Motor

Product Description

28BYGH502 hot sale 28m nema11 stepper motor manufacture direct supply stepping motor hybrid stepper motor

Advantages of stepper motors:
Without closed-loop control, the running speed and position of the motor can be precisely controlled, and it can run at very low speed.
Stepper motor features:
In addition to the above advantages, the characteristics of stepper motors also include: stepper motors are a special DC brushless motor, driven by DC power, need a driver, easy to resonate at low speed, faster torque decay at high speed, start and stop generally need to increase Deceleration program processing, the running noise will be relatively large, the efficiency is not high, and the size will not be too large.

Electrical Specification Of Hybrid Stepper Motor

Product Name	Stepper Motor
Step Accuracy	± 5%
Dielectric Strength	500VAC 1minute
Ambient Temperature	-20℃~50℃
Insulation resistance	100MΩ Min.500VDC
Step Angle	1.8°
Lead wire	6
Voltage (V)	3.80
Current (A/Phase)	0.95
Holding Torque (N.m)	0.90

28BYGH502 28m Nema11 Stepping Motor Hybrid Stepper Motor 0

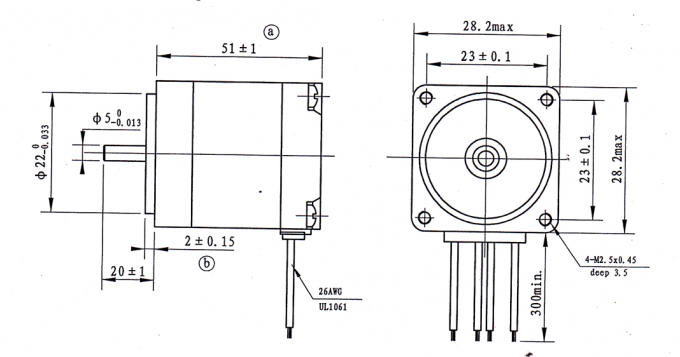

Mechanical Dimension Of Hybrid Stepper Motor

Product Range Of TB-Motor

Our main products are Stepper Motor, Planetary Gearbox& Gearbox Motor, Brushless DC Motor, Servo Motor.

Shanghai TB-Motor is an experienced motor manufacturer. For more than 20 years, TB-Motor dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.
