28mm 1.8 Degree Nema 11 28YGH Series Micro Low Noise Stepping Motor With Gearbox

Place of Origin	China
Brand Name	TB-Motor
Certification	CE ROHS ISO
Model Number	28YGH102-XXAG107
Minimum Order Quantity	50
Price	USD
Packaging Details	Carton with Inner Foam Box, Pallet
Delivery Time	28-31 DAYS
Payment Terms	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability	5000 PCS/MONTH

GET AN ESTIMATE NOW

Product Details

Product Name	Gearbox Stepper Motor	Stepper Angel	1.8
Rated Voltage	4.22V	Rated Current	0.67A
Rated Power	11W	Holding Torque	6 Kg.cm
Resistance	6.3 Ohms	Phase	2
Insulation Class	B	Step Angle Accuracy	±5%
High Light	28mm Micro Low Noise Stepping Motor,1.8Degree Nema 11 Gearbox Stepping Motor,ROHS Gearbox Stepper Motor

Product Description

28mm 1.8 Degree nema 11 28YGH series micro low noise stepping motor with gearbox

Since stepper motors and other control motors are designed to allow accurate positioning, the gearheads used for these motors must provide the same level of accuracy. Accordingly, Oriental Motor has developed a mechanism to minimize backlash in gears used with stepper motors in order to ensure low backlash properties.

Generally speaking, a stepper motor features greater output torque than an AC motor of the same frame size. Therefore, the stepper motor is designed to accommodate high torque and high speed so as not to diminish the motor’s characteristics.

Electrical Specification Of Gearbox Stepper Motor

Model	28BYGH102-XXAG107
Step Angle (°/Step)	1.8
Lead Wire	4
Voltage (V)	4.22
Current(A/Phase)	0.67
Resistance	6.3
Inductance (mH/Phase)	3.7
Holding Torque with gearbox (N.m)	6

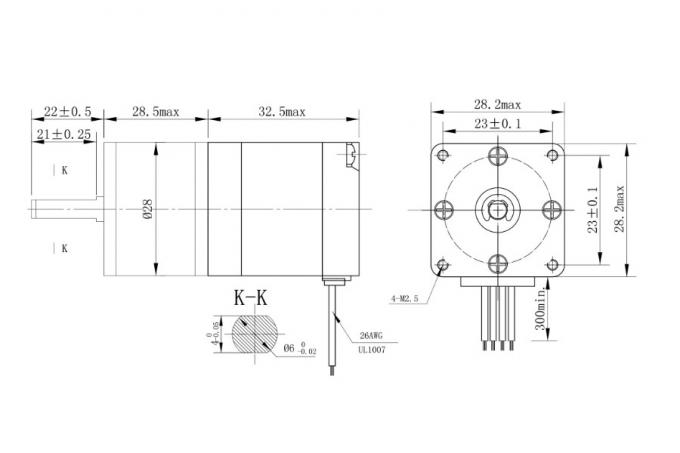

Mechanical Dimension Of Gearbox Stepper Motor

Experienced Manufacturer

Shanghai TB-Motor is an experienced motor manufacturer. For more than 20 years, TB-Motor dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.

Product Range Of TB-Motor

Based on all this advantages, our company specializes in producing hybrid stepping motors, DC brushless motors, servo motors, gearbox motors and so on. The products are applied in robots, packing machinery, textile machinery, medical instruments, printing machinery, intelligent logistics equipment… TB-Motor also sends its products to USA, Europe, Southeast Asia and all-around China.
