3.35 Inch 85mm Hybrid Stepper Motor Nema 34 3 Nm 269 Oz 4 Wire

Place of OriginChina
Brand NameTB-Motor
CertificationCE ROHS ISO
Model Number85HS80-5504-001-08
Minimum Order Quantity50
PriceUSD
Packaging DetailsCarton with Inner Foam Box, Pallet
Delivery Time25 DAYS
Payment TermsL/C, D/P, T/T, Western Union, MoneyGram
Supply Ability10000 PCS/MONTH
GET AN ESTIMATE NOW

Leave a Message

Product Details



Product NameHybrid Stepping MotorStep Accuracy± 5%
Temperature Rise80 ℃ MaxInsulation Resistance100MΩ Min.500VC DC
Motor Length80mmAmbient Temperature-20℃~+50℃
Motor Weight2.3kgDielectric Strength500VAC 1 Minute
Max Radial Force220N (20mm From Front Flange)Max Axial Force60N
High Light
stepper nema 34,3.35 Inch Hybrid Stepper Motor Nema 34 3 Nm,3.35 Inch 85mm Hybrid Stepper Motor Nema 34



Product Description



85HS80-5504-001-08 1.8° Nema 34 Low Noise 3 Nm Length 80mm Hybrid Stepper Motor

Product Name:Hybrid Stepping MotorStep Accuracy:± 5%
Temperature Rise:80 ℃ MaxInsulation Resistance:100MΩ Min.500VC DC
Motor Length:80mmAmbient Temperature:-20℃~+50℃
Motor Weight:2.3kgDielectric Strength:500VAC 1 Minute
Max Radial Force:220N (20mm From Front Flange)Max Axial Force:60N

Electrical Performance

Model Number85HS80-5504-001-08
Step Accuracy± 5%
Step Angle1.8°
Lead Wire4
Voltage (V)1.6
Current (A/Phase)4
Holding Torque (N.m)3
Resistance (Ω/phase)0.4
Inductance (mH/phase)3.5
Motor length (MM)80
Motor Weight(K/g)2.3
Insulation ClassB

*Products can be customized by special request.

*Wiring Diagram

3.35 Inch 85mm Hybrid Stepper Motor Nema 34 3 Nm 269 Oz 4 Wire 0

 *Mechanical Dimension
3.35 Inch 85mm Hybrid Stepper Motor Nema 34 3 Nm 269 Oz 4 Wire 1
Specification of Other Models:
MODELSTEP ANGLE
(°/STEP)
LEAD WIRE
(NO.)
VOLTAGE
(V)
CURRENT
(A/PHASE)
RESISTANCE
(Ω/PHASE)
INDUCTANCE
(MH/PHASE)
HOLDING TORQUE
(N.M)
MOTOR HEIGHT
L(MM)
MOTOR WEIGHT
(KG)
85HS68-1404-0011.845.61.44.024.02.8681.8
85HS68-4004-0011.842.44.00.62.82.8681.8
85HS80-4208-001-021.884.62.971.556.763.2802.3
85HS80-5504-001-061.841.64.00.43.53.0802.3
85HS97-3008-0011.884.83.01.68.05.0972.8
85HS97-4006-0011.863.44.01.05.04.4972.8
85HS116-4208-0011.885.04.21.26.56.01163.6
85HS116-5004-0011.844.55.00.911.08.51163.6
85HS126-4008-0011.886.04.01.58.06.81263.8
85HS126-6408-0011.881.536.40.5362.866.21263.8
85HS131-3004-0011.845.13.01.718.09.01314.2
85HS131-7004-0011.842.87.00.44.09.01314.2
85HS155-5004-0011.844.05.00.810.011.01555.0
85HS155-6504-0011.843.96.50.67.010.01555.0

*Products can be customized by special request.

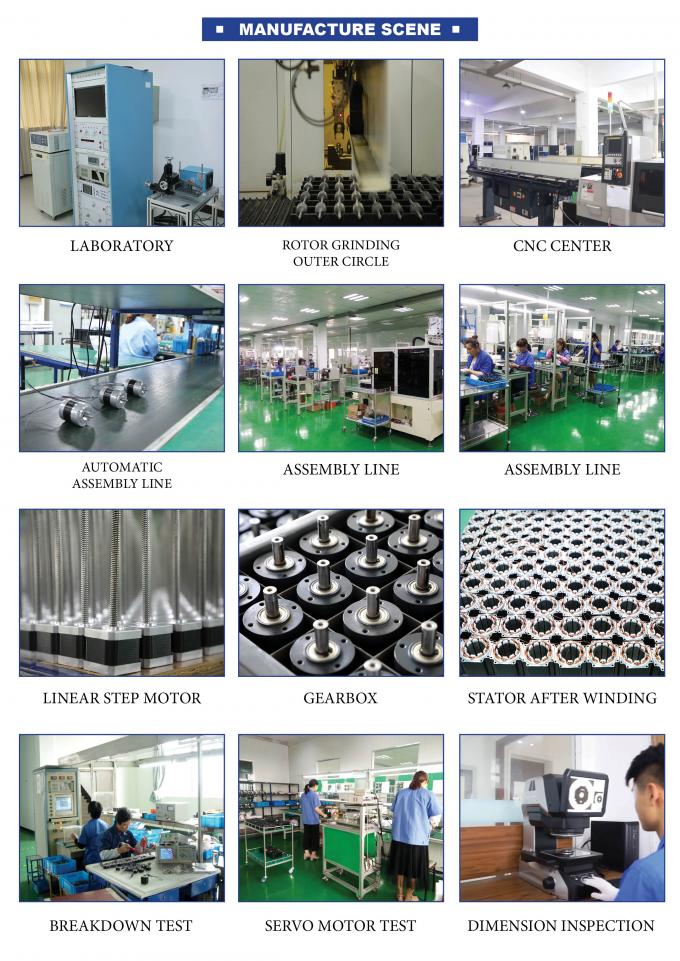

3.35 Inch 85mm Hybrid Stepper Motor Nema 34 3 Nm 269 Oz 4 Wire 2

The company dedicates to produce and design step motor, DC brushless motor, and gearbox motor. Please contact us directly if you’re interested.
