3 Phase Bldc Permanent Magnet Motor 24v 9w 900 Rpm 600vac 0.09nM 57bl02t 002
| Place of Origin | China |
|---|---|
| Brand Name | TB-Motor |
| Certification | CE ROHS ISO |
| Model Number | 57BL02T-002 |
| Minimum Order Quantity | 50 |
| Price | USD |
| Packaging Details | Carton with Inner Foam Box, Pallet |
| Delivery Time | 25 DAYS |
| Payment Terms | L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 10000 PCS/MONTH |
Leave a Message
Product Details
| Product Name | Brushless DC Motor | Rated Power | 9W |
|---|---|---|---|
| Dielectric Strength | 600VAC 1 Minute | Hall Effect Angle | 120° Electrical Angle |
| Insulation Resistance | 100MΩ Min.500VC DC | Ambient Temperature | -20℃~+50℃ |
| Insulation Class | B | Winding Type | Star |
| Max Radial Force | 75N (10mm From the Front Flange) | Max Axial Force | 15N |
| High Light | 3 Phase Bldc Motor 24v 9W,Bldc Permanent Magnet Motor 24v 9W,900rpm 3 phase motor 24v 9W | ||
Product Description
57BL02T-002 600VAC 900RPM CE ROHS ISO mini low noise 0.09 N.mbrushless DC motor
No-load speed: 1500±10%
No-load current: 0.35A max
Peak torque: 0.38 Nm
Insulation Class: B
Rated power: 9W
Electrical Specification:
| Model | ||
| Specification | Unit | 57BL02T-002 |
| Number Of Phases | Phase | 3 |
| Number Of Poles | Poles | 4 |
| Rated Voltage | VDC | 11.5 |
| Rated Speed | Rpm | 900 |
| No-load Current | A | 0.35max |
| Rated Torque | N.m | 0.09 |
| Rated Power | W | 8.5 |
| Peak Torque | N.m | 0.38 |
| Torque Constant | N.m/A | 0.067 |
| Back EMF constant | V/kRPM | 7 |
| Body Length | mm | 46.5 |
| Weight | Kg | 0.44 |
*Products can be customized by special request.
Wiring Diagram
| FUNCTION | COLOR | |
| +5V | RED | UL1007 26AWG |
| HALL A | YELLOW | |
| HALLB | GREEN | |
| HALLC | BLUE | |
| GND | BLACK | |
| PHASE A | YELLOW | UL1015 20AWG |
| PHASE B | GREEN | |
| PHASE C | BLUE |

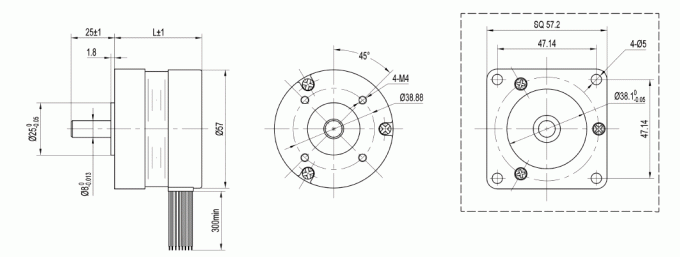

Mechanical Dimension
Brushless motors work by alternating the polarity of the windings on the interior of the motor. The magnetic fields created when the coils are generated exert a push/pull force on the permanent magnets arranged around the outside of the casing.
Regarding quality aspects, TB-Motor was qualified by ISO Certificate, CE, and Rohs. Many customers have also recognized the product quality.
TB-Motor is also proud of its research and development strength. With the support of a professional laboratory and experienced technicians, TB-Motor gained 13 Utility Patents and a high-tech enterprise Award as well as other awards.
