3000RPM 57mm Nema 17 Brushless DC Motor 7A 138W 4Pole 24V 3Phase 1.32Nm

Place of OriginChina
Brand NameTB-Motor
CertificationCE ROHS ISO
Model Number57BL
Minimum Order Quantity50
Packaging DetailsCarton with Inner Foam Box, Pallet
Delivery Time28-31 DAYS
Payment TermsL/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability5000 PCS/MONTH

Leave a Message

Product Details


Product NameBrushless DC MotorNo Of Poles4 Poles
No.of Phase3 PhasePower138W
Winding TypeStarRated Voltage24V
Max Axial Force15NHall Effect Angle120° Electrical Angle
Insulation ClassBMAX Radial Force75N (10mm From Front Flange)
Dielectric Strength600VAC 1 MinuteInsulation Resistance100MΩ Min.500VC DC
High Light
Nema 17 Brushless DC Motor 7A,1.32Nm Brushless DC Motor,24V 3Phase Brushless Bldc Motor


Product Description


57mm Nema 17 Brushless DC Motor 7A 138W 4Pole 24V 3Phase 1.32Nm 3000RPM

Brushless DC motors can be controlled, using feedback mechanisms, to delivery precisely the desired torque and rotation speed. Precision control in turn reduces energy consumption and heat generation, and—in cases where motors are battery powered—lengthens the battery life. Brushless DC motors also offer high durability and low electric noise generation, thanks to the lack of brushes. With brushed motors, the brushes and commutator wear down as a result of continuous moving contact, and also produce sparks where contact is made. Electrical noise, in particular, is the result of the strong sparks that tend to occur at the areas where the brushes pass over the gaps in the commutator. This is why Brushless DC motors are often considered preferable in applications where it is important to avoid electrical noise.


Electrical Specification Of Brushless DC Motor

Number Of PhasesPhase333333
Number Of PolesPoles444444
Rated VoltageVDC242424242424
Rated SpeedRpm250030003000300030003000
Rated CurrentA0.771.873.173.675.337.00
Rated TorqueN.m0.0570.
Rated PowerW1534.55669104138
Peak TorqueN.m0.170.330.540.660.991.32
Peak CurrentAmps2.35.69.5111621
Torque ConstantN.m/A0.0740.0590.0570.0600.0620.063
Back EMF constantV/kRPM7.756.
Body Lengthmm41.546.556.566.586.5106.5


You can download our 57BL Brushless DC Motor product brochure:57BL.pdf


+5VREDUL1007 26AWG

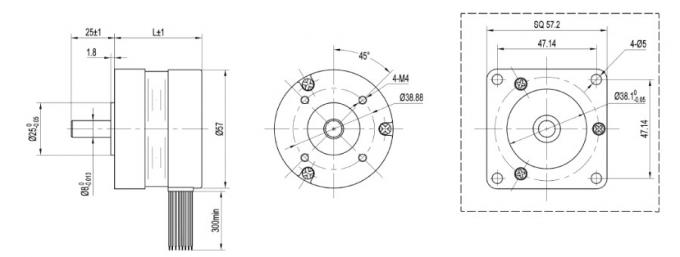

Mechanical Dimension Of Brushless DC Motor

3000RPM 57mm Nema 17 Brushless DC Motor 7A 138W 4Pole 24V 3Phase 1.32Nm 1



Shanghai TB-Motor is an experienced motor manufacturer. For more than 20 years, TB-Motor dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.

Product Range Of TB-Motor
pl105459856 remark

Based on all this advantages, our company specializes in producing hybrid stepping motors, DC brushless motors, servo motors, gearbox motors and so on. The products are applied in robots, packing machinery, textile machinery, medical instruments, printing machinery, intelligent logistics equipment… TB-Motor also sends its products to USA, Europe, Southeast Asia and all-around China.


3000RPM 57mm Nema 17 Brushless DC Motor 7A 138W 4Pole 24V 3Phase 1.32Nm 5

TB-Motor is aiming to provide high-quality, comprehensive after-sales service. Strive for continuous improvement and excellence. If you have any questions, you will be on duty 24 hours a day, so you have no worries.


Looking forward to the future, we will work hard to create with a good attitude and serious attitude, meet the challenges of modern high-tech, and continue to expand our business areas to share the achievements of automation technology with more customers!
