3000RPM Lightweight Brushless Dc Motor 4 Pole 24 Volt 11W 0.035nm 42BLY01C 002

Place of OriginChina
Brand NameTB-Motor
CertificationCE ROHS ISO
Model Number42BLY01C-002
Minimum Order Quantity50
PriceUSD
Packaging DetailsCarton with Inner Foam Box, Pallet
Delivery Time25 DAYS
Payment TermsL/C, D/P, T/T, Western Union, MoneyGram
Supply Ability10000 PCS/MONTH
GET AN ESTIMATE NOW

Leave a Message

Product Details



Product NameBrushless DC MotorWinding TypeStar
Hall Effect Angle120° Electrical AngleInsulation ClassB
Insulation Resistance100MΩ Min.500VC DCAmbient Temperature-20℃~+50℃
Dielectric Strength600VAC 1 MinuteBody Length42mm
Max Radial Force15N (10mm From the Front Flange)Max Axial Force10N
High Light
3000RPM Lightweight Brushless Dc Motor 42BLY01C 002, bldc motor 4 pole 42BLY01C 002, 24 volt dc permanent magnet motor 42BLY01C 002

Product Description



42BLY01C-002 DC 3000RPM 11W lightweight high torque brushless dc motor

Resistance: 7 OHMS

No-load speed: 4200±10% RPM

Insulation class: B

Hall effect angle: 120° Electrical angle

Shaft length: 15mm

Shaft diameter: φ5

Electrical Specification

Model
SpecificationUnit42BLY01C-002
Number Of PhasesPhase3
Number Of PolesPoles4
Rated VoltageVDC24
Rated SpeedRpm3000
Rated CurrentA0.2
Rated TorqueN.m0.035
Rated PowerW11
Peak TorqueN.m0.105
Torque ConstantN.m/A0.054
Back EMF constantV/kRPM5.7
Body Lengthmm42
WeightKg0.25

*Products can be customized by special request.

*Products can match gearbox 36,42,56



 Wiring Diagram

FUNCTIONCOLOR
+5VREDUL1007 26AWG
HALL AYELLOW
HALLBGREEN
HALLCBLUE
GNDBLACK
PHASE AYELLOWUL3265 22AWG
PHASE BGREEN
PHASE CBLUE

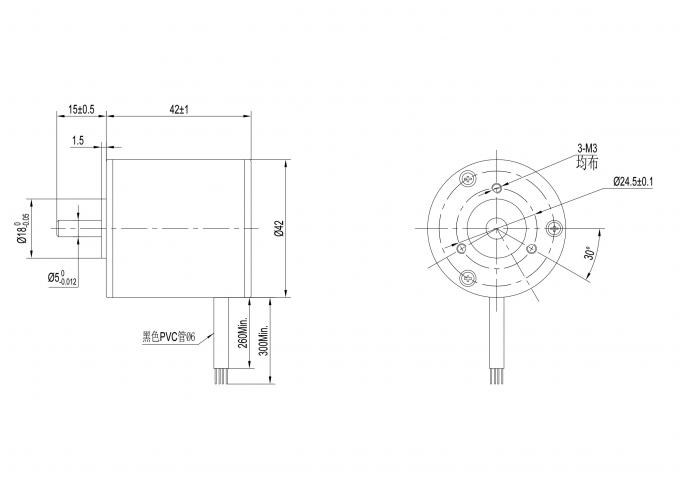

Mechanical Dimension

3000RPM Lightweight Brushless Dc Motor 4 Pole 24 Volt 11W 0.035nm 42BLY01C 002 0

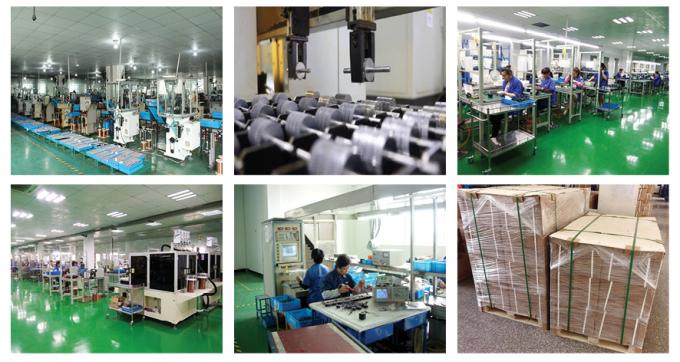

Shanghai TB-Motor is an experienced motor manufacturer. For more than 20 years, TB-Motor dedicated to providing professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly lines, Automatic cylindrical grinder,s and CNC machining centers as well.



3000RPM Lightweight Brushless Dc Motor 4 Pole 24 Volt 11W 0.035nm 42BLY01C 002 1

Brushless motors offer several other advantages, including:



Higher torque torque-to-weight ratio

Increased torque per watt of power input (increased efficiency)

Increased reliability and lower maintenance requirements

Reduced operational and mechanical noise

Longer lifespan (no brush and commutator erosion)

Elimination of ionizing sparks from the commutator (ESD)

Near-elimination of electromagnetic interference (EMI)
