310V High Voltage Brushless Dc Motor 221W 4200 Rpm 0.5 Nm 90mm For Textile Machine

Place of OriginChina
Brand NameTB-Motor
CertificationCE ROHS ISO
Model Number90BLY02D
Minimum Order Quantity50
PriceUSD
Packaging DetailsCarton with Inner Foam Box, Pallet
Delivery Time25 DAYS
Payment TermsL/C, D/P, T/T, Western Union, MoneyGram
Supply Ability10000 PCS/MONTH
GET AN ESTIMATE NOW

Leave a Message

Product Details



Product NameBrushless DC MotorRated Speed4200 Rpm
Winding TypeStarInsulation ClassB
Ambient Temperature-20℃~+50℃Insulation Resistance100MΩ Min.500VC DC
Dielectric Strength600VAC 1 MinuteMax Radial Force220N (10mm From Front Flange)
Max Axial Force60NHall Effect Angle120° Electrical Angle
High Light
310V High Voltage Brushless Dc Motor 221W,bldc dc motor 310v 221W,big brushless dc motor



Product Description



90BLY02D 90mm*90mm rear shaft brushless dc motors 310V for textile machine

90BLY02D is a specialized BLDC for textile machinery, with a high torque of 0.5 Nm and output power at 221W.

No-load speed 5700±10% RPM

No-load current 0.3A max

  • The customized motor has the pros of:
  • high speed
  • Constantly stable operation
  • Cost-effective
  • Long lifespan

Electrical Specification

SpecificationUnit90BLY02D
Number Of PhasesPhase3
Number Of PolesPoles8
Rated VoltageVDC310
Rated SpeedRpm4200
Rated TorqueN.m0.5
Rated PowerW221
Peak TorqueN.m1.5
Peak CurrentAmps0.3
Torque ConstantN.m/A0.52
Back EMF constantV/kRPM54.3
Body Lengthmm73
WeightKg4.07
*Products can be customized by special request.

Wiring Diagram

FUNCTIONCOLOR
+5VREDUL1007 26AWG
HALL AYELLOW
HALLBGREEN
HALLCBLUE
GNDBLACK
PHASE AYELLOWUL1007 20AWG
PHASE BGREEN
PHASE CBLUE
GROUND WIREYEL/GRN

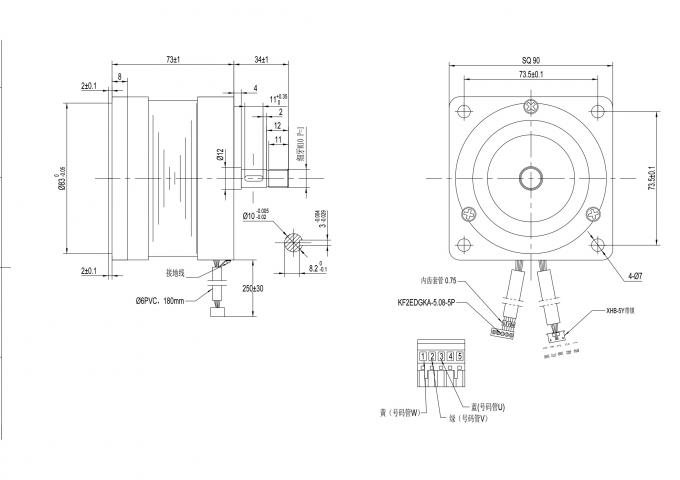

Mechanical Dimension

310V High Voltage Brushless Dc Motor 221W 4200 Rpm 0.5 Nm 90mm For Textile Machine 0

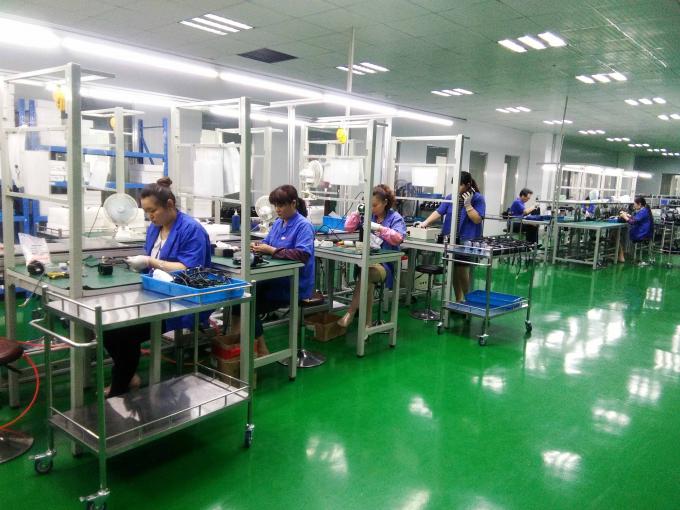

Assembly line
