35BYGX200A High Torque Mini Hybrid Stepper Motor Nema 13 4.2OHMS

Place of Origin	China
Brand Name	TB-Motor
Certification	CE ROHS ISO
Model Number	35BYGX200A
Minimum Order Quantity	50
Price	USD
Packaging Details	Carton with Inner Foam Box, Pallet
Delivery Time	28-31 DAYS
Payment Terms	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability	5000 PCS/MONTH

GET AN ESTIMATE NOW

Product Details

Product Name	Hybrid Stepper Motor	Step Angle	1.8 °
Lead Wire	4	Rated Voltage	4.2 V
Current	1A	Resistance	4.2 Ω
Inductance	5.5 MH	Holding Torque	1.25 Kg.cm
Motor Height	29 Mm	Motor Weight	0.12 Kgs
High Light	Hybrid Stepper Motor 4.2OHMS,Nema13 Mini Hybrid Stepper Motor,ROHS High Torque Stepper Motor

Product Description

35BYGX200A 4.2OHMS nema 13 factory direct sale high torque mini stepper motor hybrid stepper motor

Stepper motor is a kind of induction motor. Its working principle is to use electronic circuit to turn DC power into time-sharing power supply, and multi-phase sequence control current. Use this current to power the stepper motor, so that the stepper motor can work normally. The driver is a time-sharing power supply for the stepper motor, a multi-phase sequence controller.

Electrical Specification Of Hybrid Stepper Motor

Product Name	Hybrid Stepper Motor
Step Accuracy	± 5%
Dielectric Strength	500V AC 1minute
Ambient Temperature	-20℃~50℃
Insulation resistance	100MΩ Min.500V DC
Step Angle	1.8°
Lead wire	4
Voltage (V)	4.2
Current (A/Phase)	1
Holding Torque (Kg.cm)	1.25Kg.cm

35BYGX200A High Torque Mini Hybrid Stepper Motor Nema 13 4.2OHMS 0

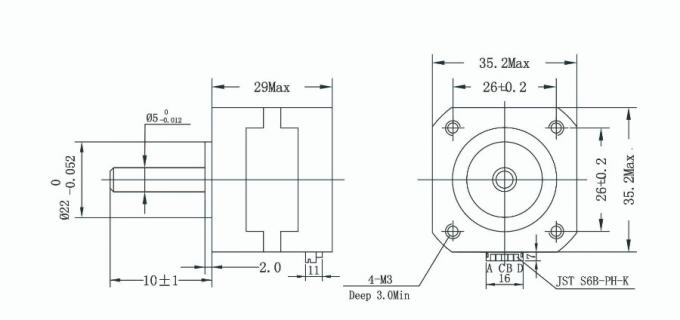

Mechanical Dimension Of Hybrid Stepper Motor

Product Range Of TB-Motor

Our main products are Stepper Motor, Planetary Gearbox& Gearbox Motor, Brushless DC Motor, Servo Motor.

Shanghai TB-Motor is an experienced motor manufacturer. For more than 20 years, TB-Motor dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.
