36mm Gearbox Stepper Motor Four Wire 1700 G Cm 0.4 Amp 14.4v
| Place of Origin | China |
|---|---|
| Brand Name | TB-Motor |
| Certification | CE ROHS ISO |
| Model Number | 39BYGX |
| Minimum Order Quantity | 50 |
| Price | USD |
| Packaging Details | Carton with Inner Foam Box, Pallet |
| Delivery Time | 25 DAYS |
| Payment Terms | L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 10000 PCS/MONTH |
Leave a Message
Product Details
| Product Name | Hybrid Stepping Motor | Step Accuracy | ± 5% |
|---|---|---|---|
| Temperature Rise | 80 ℃ Max | Insulation Resistance | 100MΩ Min.500VC DC |
| Ambient Temperature | -20℃~+50℃ | Dielectric Strength | 500VAC 1 Minute |
| Max Radial Force | 28N (20mm From Front Flange) | Max Axial Force | 10N |
| Bearing At Output | Sleeve Bearing | Backlash At No-load （°） | ≤1.5 |
| High Light | four wire stepper motor 14.4v,stepper motor gears 0.4 Amp 14.4v,Stepper Planetary Gearbox 0.4 Amp 14.4v | ||
Product Description
39BYGX 1700.cm torque step motor with 36mm Powder metallurgy gearbox
39BYGX series motor can match gearbox 32mm, 36mm. 32mm gearbox can only be made of powder metallurgy. For the 36 mm gearbox, you can choose the material zinc alloy and powder metallurgy. The reduction ratio of 36mm zinc alloy is 1/12. The Shaft max press-fit force for both gearboxes is ≤500N. For more details please scroll down and check more information.
MOTOR PART Electrical Specification:
| MODEL | Step Angle (°/Step) | Lead Wire (NO.) | Voltage (V) | Current (A/Phase) | Resistance (Ω/Phase) | Inductance (MH/Phase) | Holding Torque (G.CM) | Motor Height L(MM) | Motor Weight (KG) |
|---|---|---|---|---|---|---|---|---|---|
| 39BYGX001A | 1.8 | 4 | 13.44 | 0.48 | 28 | 21 | 1000 | 20 | 0.10 |
| 39BYGX002A | 1.8 | 4 | 8.4 | 0.7 | 12 | 11 | 1200 | 20 | 0.10 |
| 39BYGX100A | 1.8 | 4 | 12 | 0.4 | 30 | 20 | 1300 | 22 | 0.12 |
| 39BYGX200A | 1.8 | 4 | 14.4 | 0.4 | 36 | 33 | 1700 | 25 | 0.14 |
*Products can be customized by special request.
*Products can match gearbox 36mm
Out diameter 36mm Powder metallurgy
| Housing material | Bearing at output | Radial load(10mm from flange)N | Shaft axial load(N) | Shaft press-fit force max(N) | Radial play of shaft(mm) | Thrust play of shaft(mm) | Backlash at no-load (°) |
| Powder metallurgy | sleeve bearings | ≤120 | ≤80 | ≤500 | ≤0.03 | ≤0.1 | ≤1.5 |
| Reduction ratio | Rated tolerance torque (Nm) | Max momentary tolerance torque (Nm) | Efficiency% | Length (mm) | Weight(g) | Number of gear trains |
| 1/4 | 0.3 | 1.0 | 81% | 24.8 | 145 | 1 |
| 1/5 | ||||||
| 1/16 | 1.2
| 3.5
| 72% | 32.4 | 173 | 2 |
| 1/20 | ||||||
| 1/25 | ||||||
| 1/53 | 2.5
| 7.5 | 65% | 41.9 | 213 | 3 |
| 1/62 | ||||||
| 1/76 | ||||||
| 1/94 | ||||||
| 1/117 |

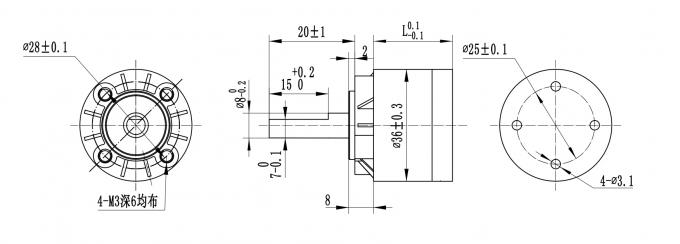

Mechanical Dimension
Out diameter 36mm Zinc alloy
| Housing material | Bearing at output | Radial load(10mm from flange)N | Shaft axial load(N) | Shaft press-fit force max(N) | Radial play of shaft(mm) | Thrust play of shaft(mm) | Backlash at no-load (°) |
| Zinc alloy | Porous bearings | ≤45 | ≤25 | ≤100 | ≤0.08 | ≤0.4 | ≤1.5 |
| Reduction ratio | Rated tolerance torque (Nm) | Max momentary tolerance torque (Nm) | Efficiency% | Length (mm) | Weight(g) | Number of gear trains |
| 1/12 | 0.3 | 1.0 | 81% | 26.8 | 100 | 1 |
Mechanical Dimension
When selecting a planetary gearbox for your application it is important to take note of;
*Specifications required – torque, backlash, ratio, etc of the application must be taken into considerations.
*Environment – some environments may leave a gearbox exposed to dust, dirt or moisture so it is important to consider this factor and select a gearbox with the correct protection.
*Space – planetary gearboxes are available in various sizes, if there is limited space available then a smaller gearbox can be used.
