36mm Miniature Brushless Motor Nema 14 12v 24V 9.4w 3000RPM 0.03Nm
| Place of Origin | China |
|---|---|
| Brand Name | TB-Motor |
| Certification | CE ROHS ISO |
| Model Number | 36BL |
| Minimum Order Quantity | 50 |
| Price | USD |
| Packaging Details | Carton with Inner Foam Box, Pallet |
| Delivery Time | 28-31 |
| Payment Terms | L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 5000pcs/month |
Leave a Message
Product Details
| Product Name | Brushless DC Motors | Winding Type | Star |
|---|---|---|---|
| Hall Effect Angle | 120° Electrical Angle | Insulation Class | B |
| Ambient Temperature | -20℃~+50℃ | Protection Level | IP40 |
| Insulation Resistance | 100MΩ Min.500VC DC | Dielectric Strength | 600VAC 1 Minute |
| MAX Radial Force | 15N (10mm From Front Flange) | MAX Axial Force | 10N |
| High Light | Motor Brushless 12v 9.4w,24 Volt Brushless Motor 9.4w,36mm Miniature Brushless Motor Nema 14 9.4w | ||
Product Description

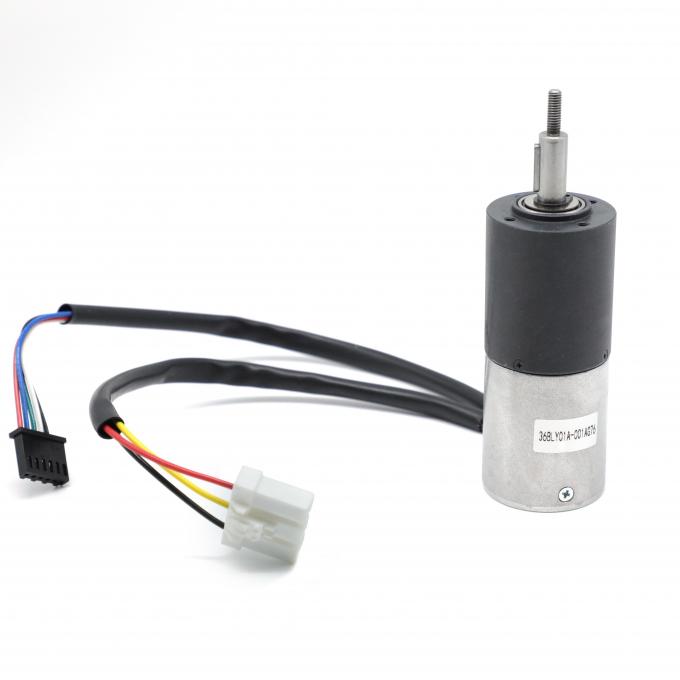

36BL nema14 CE ROHS ISO 12/24V 3000RPM 0.03Nm micro BLDC brushless motor
The model 36bly01 is commonly used with a 36 mm gearbox and apply to robot wheel, especially for lawn mower wheels. This motor has a standard speed of 3000 rpm at 24V. The rated torque is 0.03 Nm, and the rated current is 2A.
The 36BL series is lightweight and space-saving, which also has high torque.
Electrical Specification:
| Model | ||
| Specification | Unit | 36BLY01 |
| Number Of Phases | Phase | 3 |
| Number Of Poles | Poles | 4 |
| Rated Voltage | VDC | 24 |
| Rated Speed | Rpm | 3000 |
| Rated Current | A | 2.0 |
| Rated Torque | N.m | 0.03 |
| Rated Power | W | 9.4 |
| Peak Torque | N.m | 0.09 |
| Peak Current | Amps | 6 |
| Torque Constant | N.m/A | 0.015 |
| Back EMF constant | V/kRPM | 1.6 |
| Body Length | mm | 42 |
| Weight | Kg | 0.16 |
***Note: The products can be customized by your request. Please contact us for more details.
*Products can match gearbox 28, 36
Wiring Diagram:
| ELECTRICAL CONNECTION TABLE | ||
| FUNCTION | COLOR | |
| +5V | RED | UL1007 26AWG |
| HALL A | GREEN | |
| HALL B | BLUE | |
| HALL C | WHITE | |
| GND | BLACK | |
| PHASE A | BROWN | |
| PHASE B | YELLOW | |
| PHASE C | ORANGE | |
A BLDC motor takes the advantages of AC, DC, and Universal motor types and combines them into one unit. It has a long life, low maintenance, quiet operation, and variable speed ability of an AC motor; the high starting torque and linear speed-torque curve of a DC motor; and like both AC & DC motors, it works well with gearboxes. Brushless DC motors have a high power density, second only to the Universal motor, and they have the best efficiency rating of 65 to 80 %.
Product Application:
36BLY01 with gearbox 36mm have been used in the lawnmower range.
APPLIED IN LAWN MOWER ROBOTS
94 RPM
Advantage of BLDC gearbox motor :
-High torque output
-Reduced speed
-Compact in size
Advantage of BLDC motor :
-High efficiency
-Running smoothly
-Precise positioning
