4 Leads 6 Wire Nema 23 Hybrid Stepper Motor 1.8 Step Angle Low Noise 12V 2A 57mm
| Place of Origin | China |
|---|---|
| Brand Name | TB-Motor |
| Certification | CE ROHS ISO |
| Model Number | 57BYGHN |
| Minimum Order Quantity | 50 |
| Price | USD |
| Packaging Details | Carton with Inner Foam Box, Pallet |
| Delivery Time | 28-31 DAYS |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 5000 PCS/MONTH |
Leave a Message
Product Details
| Product Name | Hybrid Stepper Motor | Step Angle | 1.8 ° |
|---|---|---|---|
| Rated Voltage | 2.8V-12V | No. Of Leads | 4 Or 6 |
| Dielectric Strength | 500VAC 1 Minute | Insulation Resistance | 100MΩ Min.500VC DC |
| Step Accuracy | ±5% | Temperature Rise | 80 ℃ Max |
| MAX Radial Forcece | 75N (20mm From Front Flange) | MAX Axial Force | 15N |
| High Light | 6 Wire Hybrid Stepper Motor 57mm,4 Leads Hybrid Stepper Motor 12V,Nema 23 1.8 Degree Stepper Motor | ||
Product Description
Low Noise Nema 23 57mm Hybrid Stepper Motor 1.8 Step Angle 4 Leads 6 Wire 12V 2A
The warranty of Hybrid Stepper Motor is 1 year.Origin place is Changzhou, China.And the hybrid stepper motors have RoHS, ISO certified.The step angle is 1.8 °.Industry-leading precision craftsmanship makes our Hybrid Stepper Motor longer service life, lower maintenance rates, and easier installation. It must be your first choice.
Electrical Specification Of Hybrid Stepper Motor
| MODEL | STEP ANGLE (°/STEP) | LEAD WIRE (NO.) | VOLTAGE (V) | CURRENT (A/PHASE) | RESISTANCE (Ω/PHASE) | INDUCTANCE (MH/PHASE) | HOLDING TORQUE (KG.CM) | MOTOR HEIGHT L(MM) | MOTOR WEIGHT (KG) |
| 57BYGN001 | 1.8 | 6 | 12 | 0.38 | 32 | 25 | 3.0 | 41 | 0.45 |
| 57BYGN027 | 1.8 | 4 | 2.8 | 1.4 | 2.1 | 3.5 | 3.9 | 41 | 0.45 |
| 57BYGN200-19A | 1.8 | 6 | 5 | 1.0 | 5.0 | 11.5 | 5.8 | 51 | 0.65 |
| 57BYGN204 | 1.8 | 6 | 11.2 | 0.4 | 28 | 30 | 3.8 | 51 | 0.65 |
| 57BYGN400-11A | 1.8 | 4 | 5.5 | 1.1 | 5.0 | 12 | 7.8 | 56 | 0.70 |
| 57BYGN412 | 1.8 | 4 | 4.4 | 2.0 | 2.2 | 6.3 | 9.0 | 56 | 0.70 |
You can download our 57BYGHN Hybrid Stepper Motor product brochure:57BYGN.pdf

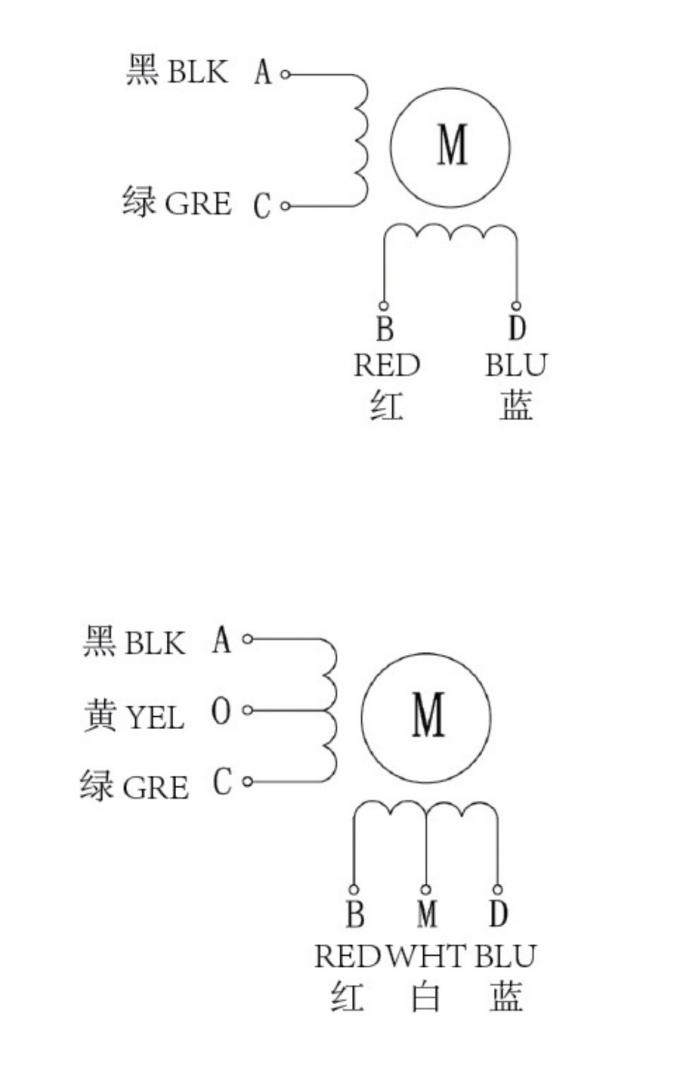

Wiring Diagram

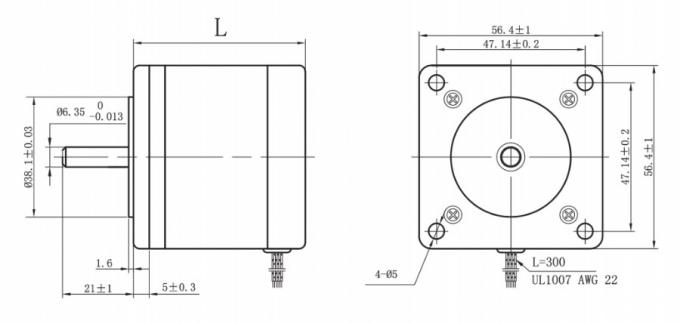

Mechanical Dimension Of Hybrid Stepper
Product Range Of TB-Motor
Our main products are Stepper Motor, Planetary Gearbox& Gearbox Motor, Brushless DC Motor, Servo Motor.
Shanghai TB-Motor is an experienced motor manufacturer. For more than 20 years, TB-Motordedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.
Automatic Assembly Line Of Stepper Motor
Since the reorganization in 1998, it has formed a certain scale of production and sales, with an annual production of more than 3 million motors.
