4 Wire 4.6 V Hybrid Stepper Motor 0.5 Nm 70oz In 1.8 Deg 57BYG424A
| Place of Origin | China |
|---|---|
| Brand Name | TB-Motor |
| Certification | CE ROHS ISO |
| Model Number | 57BYG424A |
| Minimum Order Quantity | 50 |
| Price | USD |
| Packaging Details | Carton with Inner Foam Box, Pallet |
| Delivery Time | 25 DAYS |
| Payment Terms | L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 10000 PCS/MONTH |
Leave a Message
Product Details
| Product Name | Hybrid Stepping Motor | Step Accuracy | ± 5% |
|---|---|---|---|
| Temperature Rise | 80 ℃ Max | Resistance | 3.2 Ω |
| Insulation Resistance | 100MΩ Min.500VC DC | Inductance | 7 MH |
| Ambient Temperature | -20℃~+50℃ | Dielectric Strength | 500VAC 1 Minute |
| Max Radial Force | 75N (20mm From Front Flange) | Max Axial Force | 15N |
| High Light | stepper motor 0.5nm 57BYG424A,Stepper Motor 0.5 Nm 70oz In,Hybrid Stepper Motor 0.5 Nm 57BYG424A | ||
Product Description
57BYG424A CE ROHS ISO custom 56mm length 1.8° Low Noise stepper motor micro
Product Name: Hybrid Stepping Motor (2 phase)
Step Accuracy: ± 5%
Step Angle:1.8 degree
Voltage: 4.6 V
Inductance: 4±20% MH
Resistance: 3.2 ±10%
Inductance:7.0± 20%
Dielectric Strength: 500VAC 1 Minute
Protection Level: IP 40 dustproof
Temperature Rise: 80 ℃ Max
Ambient Temperature: -20℃~+50℃
| Model Number | 57BYG424A |
| Step Accuracy | ± 5% |
| Step Angle | 1.8° |
| Lead Wire | 4 |
| Voltage (V) | 3.2 |
| Current (A/Phase) | 1 |
| Holding Torque (N.m) | 0.5 |
| Resistance (Ω/phase) | 3.2 |
| Inductance (mH/phase) | 7 |
| Motor length (MM) | 56 |
| Motor Weight(Kg) | 0.65 |
| Insulation Class | B |
*Products can be customized by special request.
Wiring Diagram
| MODEL | STEP ANGLE (°/STEP) | LEAD WIRE (NO.) | VOLTAGE (V) | CURRENT (A/PHASE) | RESISTANCE (Ω/PHASE) | INDUCTANCE (MH/PHASE) | HOLDING TORQUE (KG.CM) | MOTOR HEIGHT L(MM) | MOTOR WEIGHT (KG) |
|---|---|---|---|---|---|---|---|---|---|
| 57BYGN001 | 1.8 | 6 | 12 | 0.38 | 32 | 25 | 3.0 | 41 | 0.45 |
| 57BYGN027 | 1.8 | 4 | 2.8 | 1.4 | 2.1 | 3.5 | 3.9 | 41 | 0.45 |
| 57BYGN200-19A | 1.8 | 6 | 5 | 1.0 | 5.0 | 11.5 | 5.8 | 51 | 0.65 |
| 57BYGN204 | 1.8 | 6 | 11.2 | 0.4 | 28 | 30 | 3.8 | 51 | 0.65 |
| 57BYGN400-11A | 1.8 | 4 | 5.5 | 1.1 | 5.0 | 12 | 7.8 | 56 | 0.70 |
| 57BYGN412 | 1.8 | 4 | 4.4 | 2.0 | 2.2 | 6.3 | 9.0 | 56 | 0.70 |
*Products can be customized by special request.
*Can match with gearbox 42, 52, 56

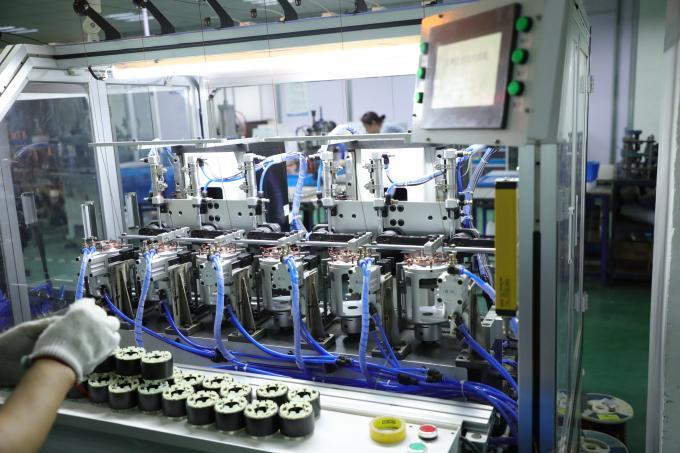

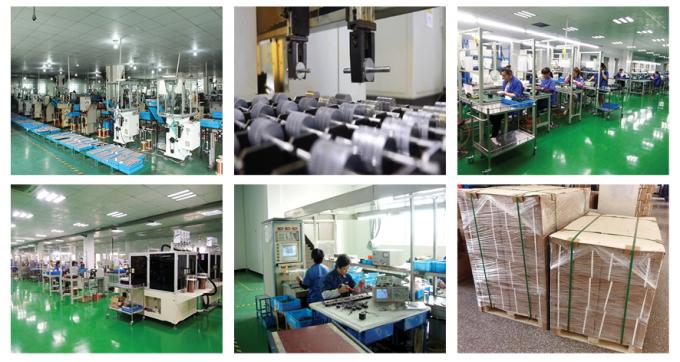

TB-Motor is an experienced motor manufacturer. For more than 20 years, TB-Motor dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.
Stepper Motor Construction & Working Principle
The construction of a stepper motor is fairly related to a DC motor. It includes a permanent magnet like Rotor which is in the middle & it will turn once force acts on it. This rotor is enclosed through a no. of the stator which is wound through a magnetic coil all over it. The stator is arranged near to rotor so that magnetic fields within the stators can control the movement of the rotor.
