4 Wire Hybrid Stepper Motor 15kg Cm 1335 oz 1.8 2.5a 9v 57HN56 002 02A
Place of Origin | China |
---|---|
Brand Name | TB-Motor |
Certification | CE ROHS ISO |
Model Number | 57HN56-002-02A |
Minimum Order Quantity | 50 |
Price | USD |
Packaging Details | Carton with Inner Foam Box, Pallet |
Delivery Time | 25 DAYS |
Payment Terms | L/C, D/P, T/T, Western Union, MoneyGram |
Supply Ability | 10000 PCS/MONTH |
Leave a Message
Product Details
Product Name | Hybrid Stepping Motor | Voltage | 9V |
---|---|---|---|
Temperature Rise | 80 ℃ Max | Insulation Resistance | 100MΩ Min.500VC DC |
Ambient Temperature | -20℃~+50℃ | Dielectric Strength | 500VAC 1 Minute |
Max Radial Force | 75N (20mm From Front Flange) | Max Axial Force | 15N |
High Light | Hybrid Stepper Motor 15kg Cm,Hybrid Stepping Motor 57HN56 002 02A,1.8 deg stepper motor 57HN56 002 02A |
Product Description
57HN56-002-02A CE ROHS ISO 1.8 Degree Length 56mm 15 kg.cm torque Stepper Motor
Related model number specification
MODEL | Step angle | Voltage/ phase V | Current/ phase A | Resistance Ω | Inductance mH | Holding torque N.M | Motor length mm | Shaft length |
57HN56-002-02A | 1.8 | 9 | 2.5 | 3.6 | 11 | 1.5 | 78 | 21±1 |
57HN56-002-03A | 1.8 | 9 | 2.5 | 3.6 | 14 | 1.5 | 78 | 21±1 |
57HN56-003A | 1.8 | 3.2 | 2 | 1.6 | 3.2 | 0.9 | 78 | 21±1 |
Electrical Specification
Model Number | 57HN56-002-02A |
Step Accuracy | ± 5% |
Step Angle | 1.8° |
Lead Wire | 4 |
Voltage (V) | 9 |
Current (A/Phase) | 2.5 |
Holding Torque (Kg.cm) | 15 |
Resistance (Ω/phase) | 3.6 |
Inductance (mH/phase) | 11 |
Motor length (MM) | 56 |
Motor Weight(Kg) | 0.68 |
Insulation Class | B |
*Products can be customized by special request.
MODEL | STEP ANGLE (°/STEP) | LEAD WIRE (NO.) | VOLTAGE (V) | CURRENT (A/PHASE) | RESISTANCE (Ω/PHASE) | INDUCTANCE (MH/PHASE) | HOLDING TORQUE (KG.CM) | MOTOR HEIGHT L(MM) | MOTOR WEIGHT (KG) |
---|---|---|---|---|---|---|---|---|---|
57HN41-001-01 | 1.8 | 4 | 2.1 | 4.2 | 0.5 | 1.4 | 9.5 | 41 | 0.43 |
57HN41-003-04 | 1.8 | 4 | 7.0 | 1.0 | 7.0 | 14.7 | 9.0 | 41 | 0.43 |
57HN46-005A | 1.8 | 4 | 2.3 | 4.2 | 0.55 | 1.5 | 10.6 | 46 | 0.54 |
57HN46-003A | 1.8 | 4 | 8.2 | 1.0 | 8.2 | 18 | 10.5 | 46 | 0.54 |
57HN51-003A | 1.8 | 4 | 1.5 | 3.0 | 0.5 | 1.4 | 9.5 | 51 | 0.63 |
57HN51-005 | 1.8 | 4 | 4.0 | 2.0 | 2.0 | 6.5 | 12 | 51 | 0.63 |
57HN56-002 | 1.8 | 4 | 9.0 | 2.5 | 3.6 | 11 | 15 | 56 | 0.68 |
57HN56-005-02 | 1.8 | 4 | 6.8 | 1.0 | 6.8 | 24 | 12 | 56 | 0.68 |
57HN67-001-15 | 1.8 | 4 | 5.76 | 1.6 | 3.6 | 12 | 19 | 67 | 0.70 |
57HN67-004-07 | 1.8 | 4 | 1.5 | 3.0 | 0.5 | 1.8 | 14 | 67 | 0.70 |
*Products can be customized by special request.
*Produdts can match gearbox 42.52.56

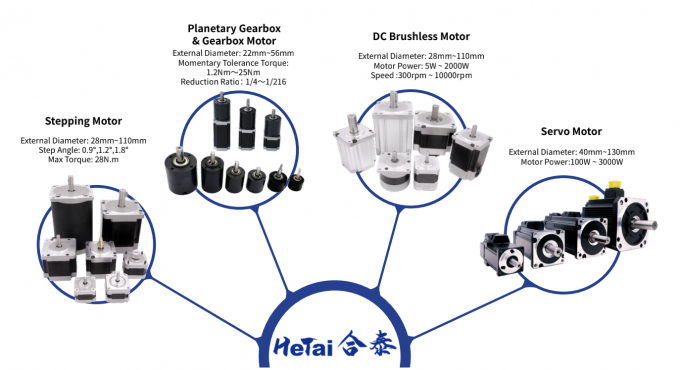

Based on all this advantages, our company specializes in producing hybrid stepping motors, DC brushless motors, servo motors, gearbox motors and so on. The products are applied in robots, packing machinery, textile machinery, medical instruments, printing machinery, intelligent logistics equipment… TB-Motor also sends its products to USA, Europe, Southeast Asia and all-around China.
1. Are you a factory?
Yes, we are a factory. Our brand name TB-Motor is a well-known micro motor manufacturer for more than 20 years in
China. Main products including hybrid stepper motor, brushless DC motor, servo motor, and planetary gearbox.
2. Can I test the sample?
Yes, samples and freight are charged.
3. Can I get a Customized product?
Sure, all the products can be customized based on special requests.
4. How do you ship the goods?
We normally ship goods by express(DHL/UPS/FEDEX/TNT), by sea and by air, also accept freight forwarder.
5. What are the payment terms?
T/T(bank transfer), Paypal(0.5% paypal charges), ALIBABA assurance order accept
6. Is this your final price? May I have the discount?
Our price is the factory price. If you have a large quantity, we can negotiate about the discount.
7. What is the Warranty for your products?
Our warranty is for one year. If any quality problems occurred on our side during this period, we will take on the shipping cost and replacement. please note damage caused by improper use of the product is not covered by the warranty.
