42bygh 1.2a Nema 17 Stepper Motor 6 Wire 1.8 4.6V 0.35Nm 311 oz 2 Phase

Place of OriginChina
Brand NameTB-Motor
CertificationCE ROHS ISO
Model Number42BYGH808-08
Minimum Order Quantity50
PriceUSD
Packaging DetailsCarton with Inner Foam Box, Pallet
Delivery Time25 DAYS
Payment TermsL/C, D/P, T/T, Western Union, MoneyGram
Supply Ability10000 PCS/MONTH
GET AN ESTIMATE NOW

Leave a Message

Product Details



Product NameHybrid Stepping MotorAmbient Temperature-20℃~+50℃
Dielectric Strength500VAC 1 MinuteTemperature Rise80 ℃ Max
Step Accuracy± 5%Insulation Resistance100MΩ Min.500VC DC
Inductance13 MHVoltage7.2V
High Light
motor nema 17 1.2a 0.35Nm,Nema 17 42bygh 0.35Nm,Nema 17 Dc Motor



Product Description



42BYGH808-08 2 phase customizable NEMA 17 1.8 degree 7.2V 3kg.cm hybrid stepper motor

Voltage: 4.6 V

Inductance: 4±20% MH

Product Name: Hybrid Stepping Motor

Ambient Temperature: -20℃~+50℃
Dielectric Strength: 500VAC 1 Minute

Temperature Rise: 80 ℃ Max
Step Accuracy: ± 5% Insulation

Insulation Resistance​: 100MΩ Min.500VC DC

Electrical Specification



Model Number 42BYGH808-08
Step Accuracy± 5%
Step Angle1.8°
Lead Wire8
Voltage (V)4.6
Current (A/Phase)1.2
Holding Torque (N.m)0.35
Resistance (Ω/phase)4.6±10%
Inductance (mH/phase)4±20%
Motor length (MM)48
Motor Weight(Kg)0.34
Insulation ClassB

*Products can be customized by special request.

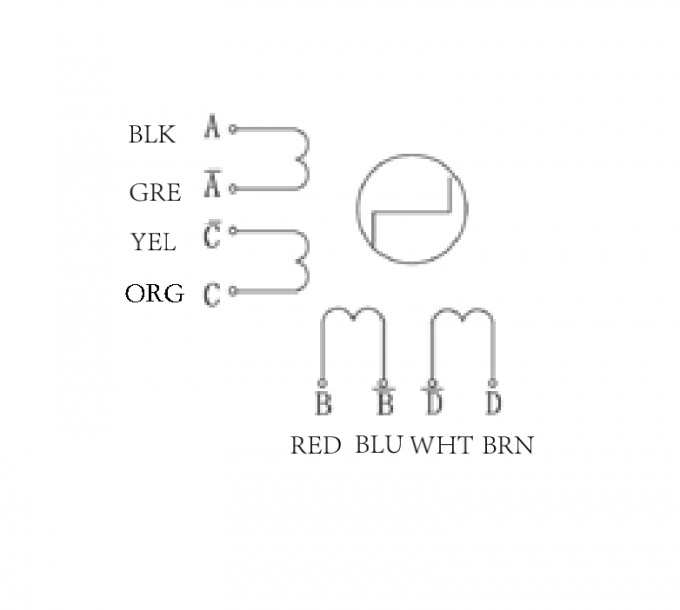

Wiring Diagram
42bygh 1.2a Nema 17 Stepper Motor 6 Wire 1.8 4.6V 0.35Nm 311 oz 2 Phase 0
42bygh 1.2a Nema 17 Stepper Motor 6 Wire 1.8 4.6V 0.35Nm 311 oz 2 Phase 1
Mechanical Dimension
42bygh 1.2a Nema 17 Stepper Motor 6 Wire 1.8 4.6V 0.35Nm 311 oz 2 Phase 2
Specification of Other Models:
MODELSTEP ANGLE
(°/STEP)
LEAD WIRE
(NO.)
VOLTAGE
(V)
CURRENT
(A/PHASE)
RESISTANCE
(Ω/PHASE)
INDUCTANCE
(MH/PHASE)
HOLDING TORQUE
(G.CM)
MOTOR HEIGHT
L(MM)
MOTOR WEIGHT
(KG)
42BYGH208-52A1.84120.430422500340.20
42BYGH243-031.842.612.63.21800340.20
42BYGH622-28A1.844.814.86.02900400.24
42BYGH613-68A1.842.51.71.52.53500400.24
42BYGH705-071.84120.340804000440.30
42BYGH721A1.86100.2540362000440.30
42BYGH801-361.86120.430223800480.34
42BYGH872A1.842.81.71.652.84500480.34
42BYGH910-021.845.11.53.48.08500600.49
42BYGH905-131.843.151.52.15.06800600.49



*Products can be customized by special request.

*Products can match gearbox 36.42

Shanghai TB-Motor is an experienced motor manufacturer. For more than 20 years, TB-Motor dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.

42bygh 1.2a Nema 17 Stepper Motor 6 Wire 1.8 4.6V 0.35Nm 311 oz 2 Phase 3

42bygh 1.2a Nema 17 Stepper Motor 6 Wire 1.8 4.6V 0.35Nm 311 oz 2 Phase 4

The Industrial applications of stepping motor include high speed pick and place equipment and multi-axis CNC machines, often directly driving lead screws or ball screws. In the field of optics they are frequently used in precision positioning equipment such as linear actuators, linear stages, rotation stages, goniometers, and mirror mounts. Other uses are in packaging machinery, and positioning of valve pilot stages for fluid control systems. Commercially, stepper motors are used in floppy disk drives, flatbed scanners, computer printers, plotters, slot machines, image scanners, compact disc drives and many more devices
