42BYGH208-56AG5 Nema17 Low Noise Stepper Motor Gearbox 12V

Place of Origin	China
Brand Name	TB-Motor
Certification	CE ROHS ISO
Model Number	42BYGH208-56AG5
Minimum Order Quantity	50
Price	USD
Packaging Details	Carton with Inner Foam Box, Pallet
Delivery Time	28-31 DAYS
Payment Terms	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability	5000 PCS/MONTH

GET AN ESTIMATE NOW

Product Details

Product Name	Gearbox Stepper Motor	Stepper Angel	1.8
Lead Wire	4	Rated Voltage	12V
Rated Current	0.4A	Resistance	30 Ohms
Holding Torque	2.5 Kg.cm	Phase	2
Reduction Ratio	6:1	Insulation Class	B
High Light	Low Noise Stepper Motor Gearbox 12V,Nema17 Stepper Motor Gearbox,42BYGH 208 Gearbox Stepper Motor

Product Description

Hot sale 42BYGH208-56AG5 12V nema17 factory supply low noise stepper motor gearbox

Advantages of Gearbox stepper motor

1. The deceleration stepper motor has the advantages of low voltage, large overload torque, large starting torque, and small starting current.

2. At present, most of the permanent magnets of deceleration stepper motors are made of rare earth NdFeB materials with high magnetic energy. Therefore, the volume of the rare earth permanent magnet brushless motor is one frame smaller than that of the three-phase asynchronous motor of the same capacity.

Electrical Specification Of Gearbox Stepper Motor

Model	42BYGH208-56AG5
Step Angle (°/Step)	1.8
Lead Wire	4
Voltage (V)	12
Current(A/Phase)	0.4
Resistance	30
Inductance (mH/Phase)	42
Holding Torque with gearbox (Kg.cm)	2.5

42BYGH208-56AG5 Nema17 Low Noise Stepper Motor Gearbox 12V 0

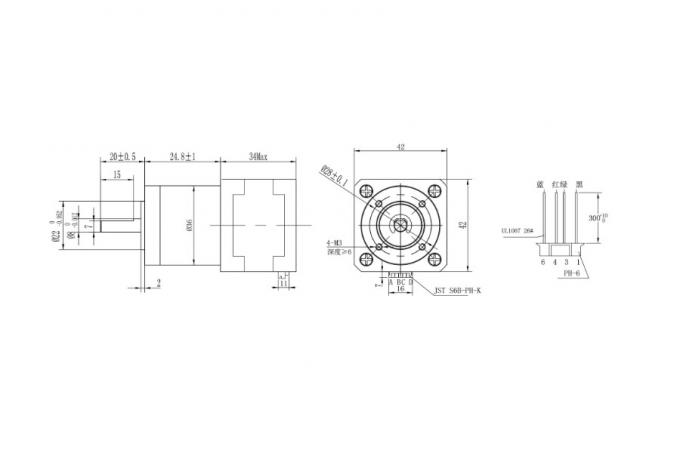

Mechanical Dimension Of Gearbox Stepper Motor

Shanghai TB-Motor is an experienced motor manufacturer. For more than 20 years, TB-Motor dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.

Product Range Of TB-Motor

Based on all this advantages, our company specializes in producing hybrid stepping motors, DC brushless motors, servo motors, gearbox motors and so on. The products are applied in robots, packing machinery, textile machinery, medical instruments, printing machinery, intelligent logistics equipment… TB-Motor also sends its products to USA, Europe, Southeast Asia and all-around China.
