42BYGH610-77AE Nema17 Hybrid Stepper Motor 42mm 1.8 Step Angle 0.2N.M
| Place of Origin | China |
|---|---|
| Brand Name | TB-Motor |
| Certification | CE ROHS ISO |
| Model Number | 42BYGH610-77AE |
| Minimum Order Quantity | 50 |
| Price | USD |
| Packaging Details | Carton with Inner Foam Box, Pallet |
| Delivery Time | 28-31 DAYS |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 5000 PCS/MONTH |
Leave a Message
Product Details
| Product Name | Hybrid Stepper Motor | Step Angle | 1.8 ° |
|---|---|---|---|
| No. Of Lead Wires | 4 | Current | 0.5A |
| Rated Voltage | 3V | Motor Length | 40mm |
| Resisitance | 6 OHMS | Holding Torque | 0.2 N.m |
| Inductance | 11mH | Certification | CE ISO ROHS |
| High Light | 1.8 Step Hybrid Stepper Motor,Hybrid Stepper Motor 0.2NM,1.8 Deg Stepper Motor 42mm | ||
Product Description
Nema17 42mm 42BYGH610-77AE special custom 11mH 0.2N.m hybrid stepper motor
Stepper motors have the following advantages:
1. When the position is locked, the motor no longer consumes power: the unique “static torque” of the stepping motor (also known as “holding torque”, “positioning torque”, etc.), when the motor stops at a certain position, it has a certain Locking torque. Although the DC motor can also lock the position through the driver, the motor still consumes power when locked.
2. Small size and long life: The life of a stepper motor usually depends on the life of the bearing, which can reach tens of thousands to tens of thousands of hours. Compared with a DC motor of the same size, the output torque of a stepper motor is greater.
3. Low cost and simple driving: due to the open-loop control, feedback devices such as encoders are omitted, so the system composition is simplified and the cost can be effectively reduced.
1. When the position is locked, the motor no longer consumes power: the unique “static torque” of the stepping motor (also known as “holding torque”, “positioning torque”, etc.), when the motor stops at a certain position, it has a certain Locking torque. Although the DC motor can also lock the position through the driver, the motor still consumes power when locked.
2. Small size and long life: The life of a stepper motor usually depends on the life of the bearing, which can reach tens of thousands to tens of thousands of hours. Compared with a DC motor of the same size, the output torque of a stepper motor is greater.
3. Low cost and simple driving: due to the open-loop control, feedback devices such as encoders are omitted, so the system composition is simplified and the cost can be effectively reduced.
Product Name | Stepper Motor |
Step Accuracy | ± 5% |
Dielectric Strength | 500V AC 1minute |
Ambient Temperature | -20℃~50℃ |
Insulation resistance | 100MΩ Min.500V DC |
Step Angle | 1.8° |
Lead wire | 4 |
Voltage (V) | 3 |
Inductance(mh/phase) | 11 |
Resistance(ohms) | 6 |
Current (A/Phase) | 0.5 |
Holding Torque (N.m) | 0.2 |

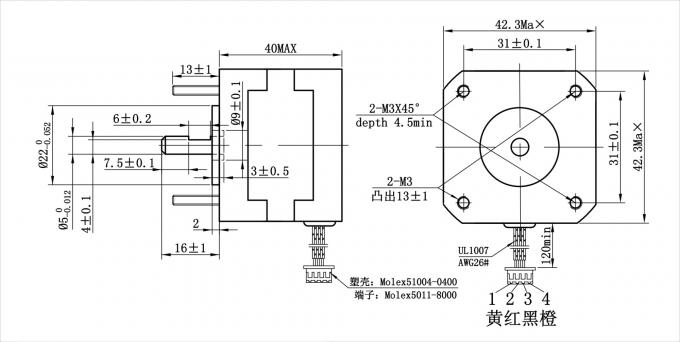

Mechanical Dimension Of Brushless DC Motor
Experienced Manufacturer
Shanghai TB-Motor is an experienced motor manufacturer. For more than 20 years, TB-Motor dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.
Product Range Of TB-Motor
Based on all this advantages, our company specializes in producing hybrid stepping motors, DC brushless motors, servo motors, gearbox motors and so on. The products are applied in robots, packing machinery, textile machinery, medical instruments, printing machinery, intelligent logistics equipment… TB-Motor also sends its products to USA, Europe, Southeast Asia and all-around China.
Production Process
Automatic assembly line
High-end test equipment
